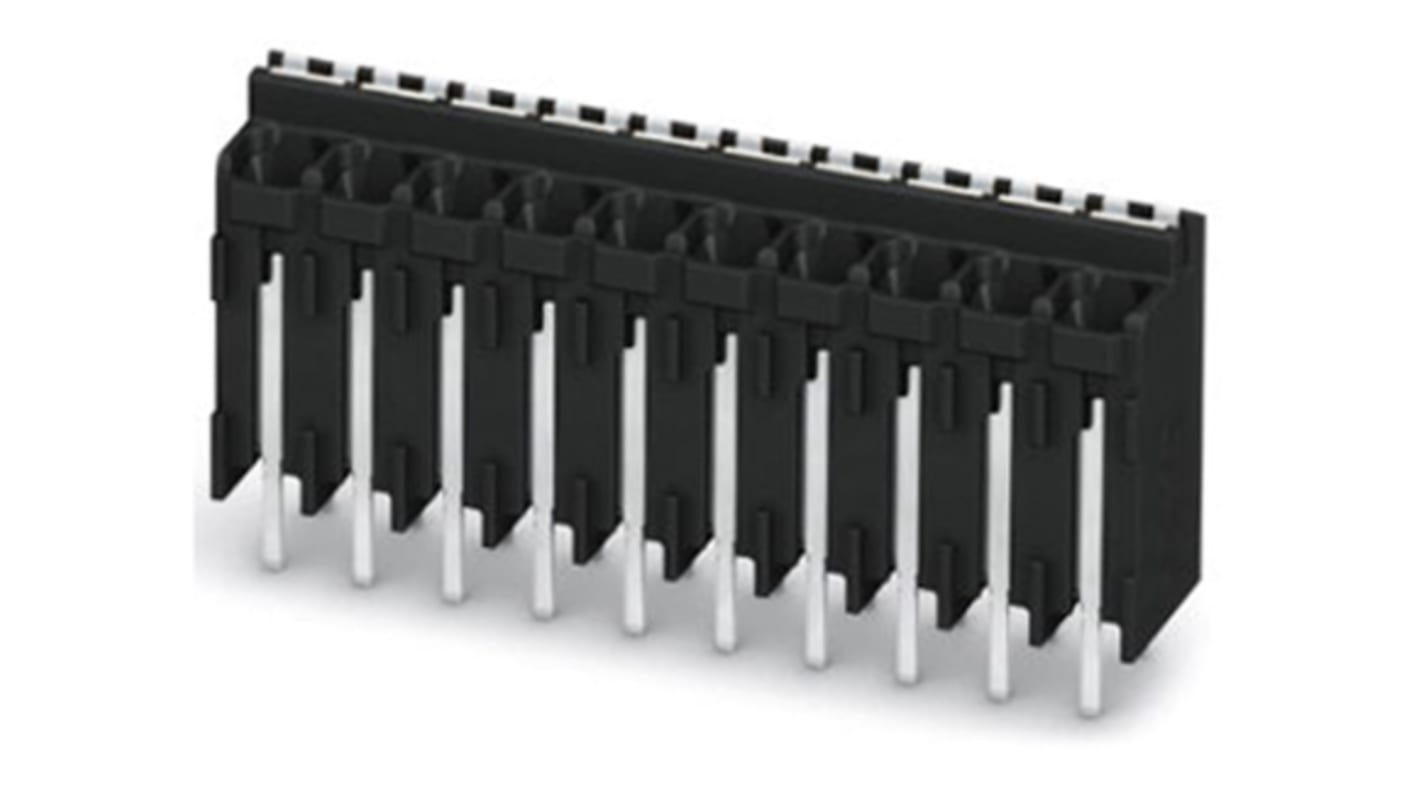

Phoenix Contact SPT-THR 1.5/ 5-V-3.81 P26 Series PCB Terminal Block, 3.81mm Pitch, Through Hole Mount, Spring Cage
- RS Stock No.:
- 881-1631
- Mfr. Part No.:
- 1822451
- Brand:
- Phoenix Contact
Subtotal (1 box of 190 units)*
£292.03
(exc. VAT)
£350.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
190 + | £1.537 | £292.03 |
*price indicative
- RS Stock No.:
- 881-1631
- Mfr. Part No.:
- 1822451
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pitch | 3.81mm | |
Mounting Type | Through Hole | |
Termination Method | Spring Cage | |
Type | PCB Terminal Block | |
Current Rating | 13.5A | |
Colour | Black | |
Voltage Rating | 320 V | |
Series | SPT-THR 1.5/ 5-V-3.81 P26 | |
Depth | 13.7mm | |
Material | Liquid Crystal Polymer | |
Length | 7.7mm | |
Width | 19.24mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pitch 3.81mm | ||
Mounting Type Through Hole | ||
Termination Method Spring Cage | ||
Type PCB Terminal Block | ||
Current Rating 13.5A | ||
Colour Black | ||
Voltage Rating 320 V | ||
Series SPT-THR 1.5/ 5-V-3.81 P26 | ||
Depth 13.7mm | ||
Material Liquid Crystal Polymer | ||
Length 7.7mm | ||
Width 19.24mm | ||
- COO (Country of Origin):
- DE
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², Number of potentials: 5, Number of rows: 1, Number of positions per row: 5, product range: SPT 1,5/..-V-THR, pitch: 3.81 mm, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 90 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 2.6 mm, type of packaging: packed in cardboard
