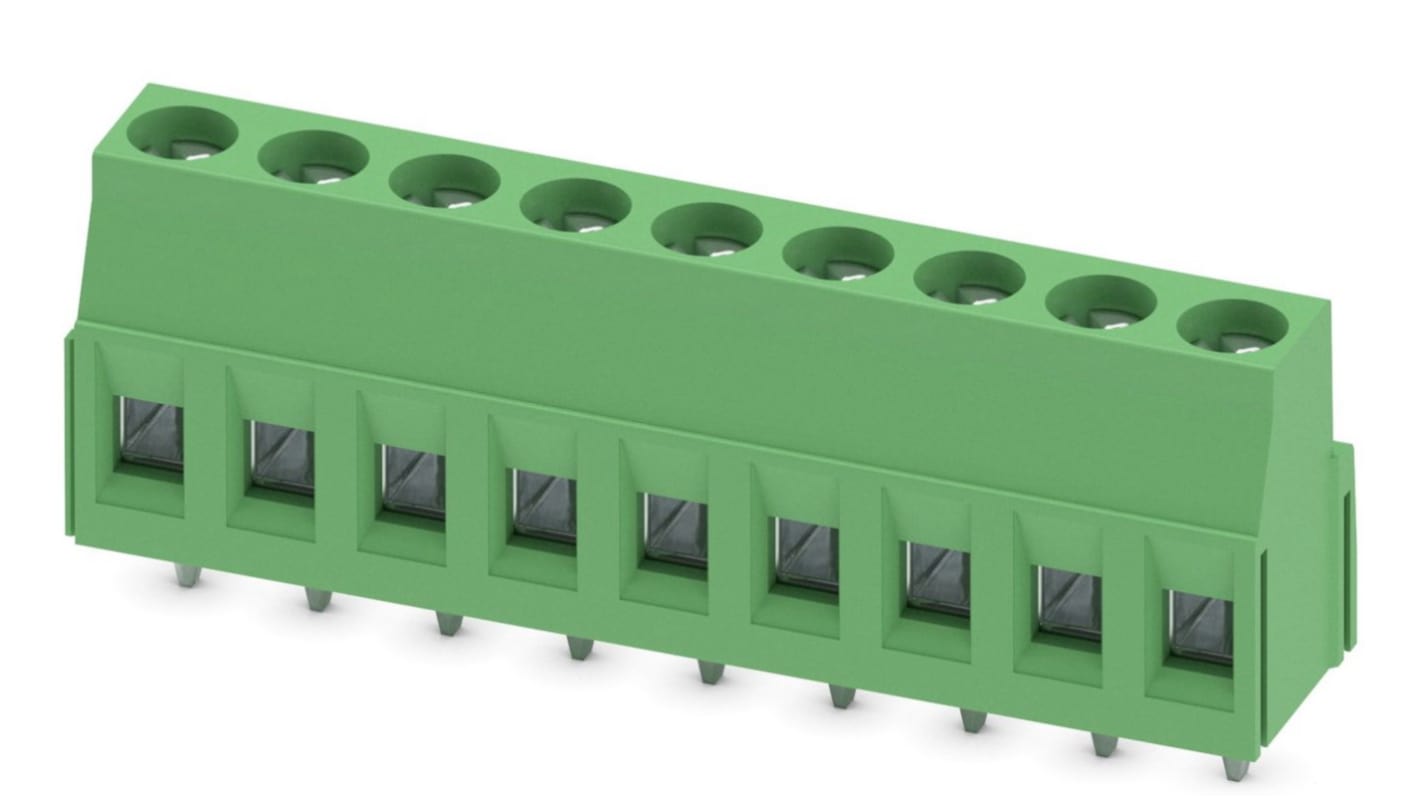

Phoenix Contact MKDSN 2.5/ 9 Series PCB Terminal Block, 9-Contact, 5mm Pitch, Through Hole Mount, Screw Termination
- RS Stock No.:
- 855-1238
- Mfr. Part No.:
- 1931194
- Brand:
- Phoenix Contact
Available to back order for despatch 30/09/2024
Price Each (In a Box of 50)
£2.205
(exc. VAT)
£2.646
(inc. VAT)
Units | Per unit | Per Box* |
---|---|---|
50 + | £2.205 | £110.25 |
*price indicative
- RS Stock No.:
- 855-1238
- Mfr. Part No.:
- 1931194
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², Number of potentials: 9, Number of rows: 1, Number of positions per row: 9, product range: MKDSN 2,5, pitch: 5 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Specifications
Attribute | Value |
---|---|
Number of Contacts | 9 |
Pitch | 5mm |
Mounting Type | Through Hole |
Termination Method | Screw |
Type | PCB Terminal Block |
Current Rating | 16A |
Colour | Green |
Voltage Rating | 630 V |
Series | MKDSN 2.5/ 9 |
Length | 9.5mm |
Material | Polyamide |
