Phoenix Contact PLH 16/2-10 Series PCB Terminal Strip, 2-Contact, 10mm Pitch, Through Hole Mount, 1-Row, Spring Cage

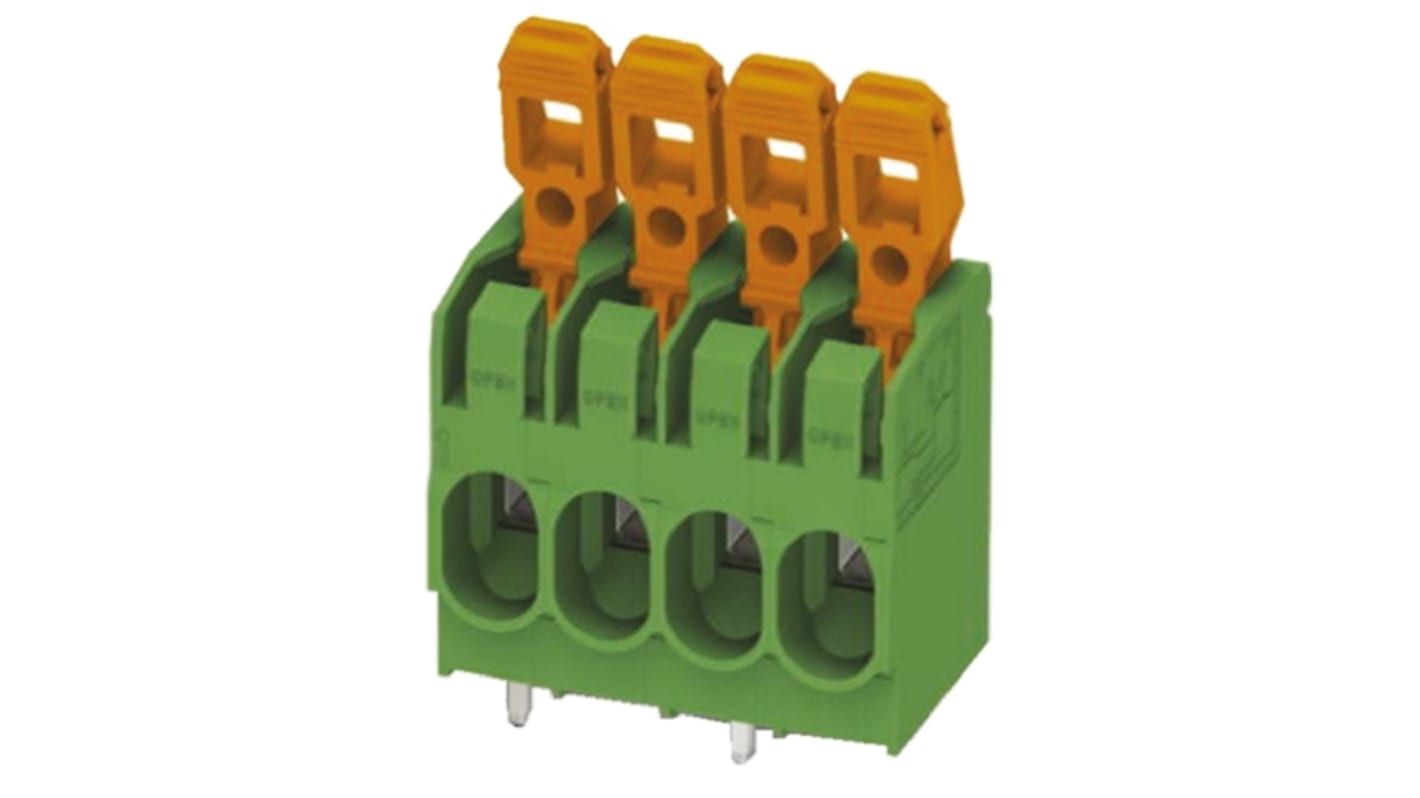

Image representative of range

View all PCB Terminal Blocks
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
792-3408
Mfr. Part No.:
1770393
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

2

Pitch

10mm

Number of Rows

1

Mounting Type

Through Hole

Gender

Male

Termination Method

Spring Cage

Type

PCB Terminal Block

Current Rating

76A

Body Orientation

Horizontal

Colour

Green

Voltage Rating

800 V

Series

PLH 16/2-10

Width

30.5mm

Depth

49.7mm

Material

Polyamide

RoHS Status: Not Applicable

COO (Country of Origin):
DE

Phoenix Contact 10mm COMBICON PLH Series PCB Terminal Blocks


10 mm pitch double pinned COMBICON PLH series of horizontal, PCB mounted terminal blocks with a low actuation force lever. These 10 mm COMBICON PLH double pinned PCB terminal block have screwless spring cage connections with a tension clamp that can accept solid or stranded wire from 0.75 mm² to 16 mm² (18-4 AWG) and have a rated current of 76 A.
For ferrule crimp pliers see stock number 803-4405
