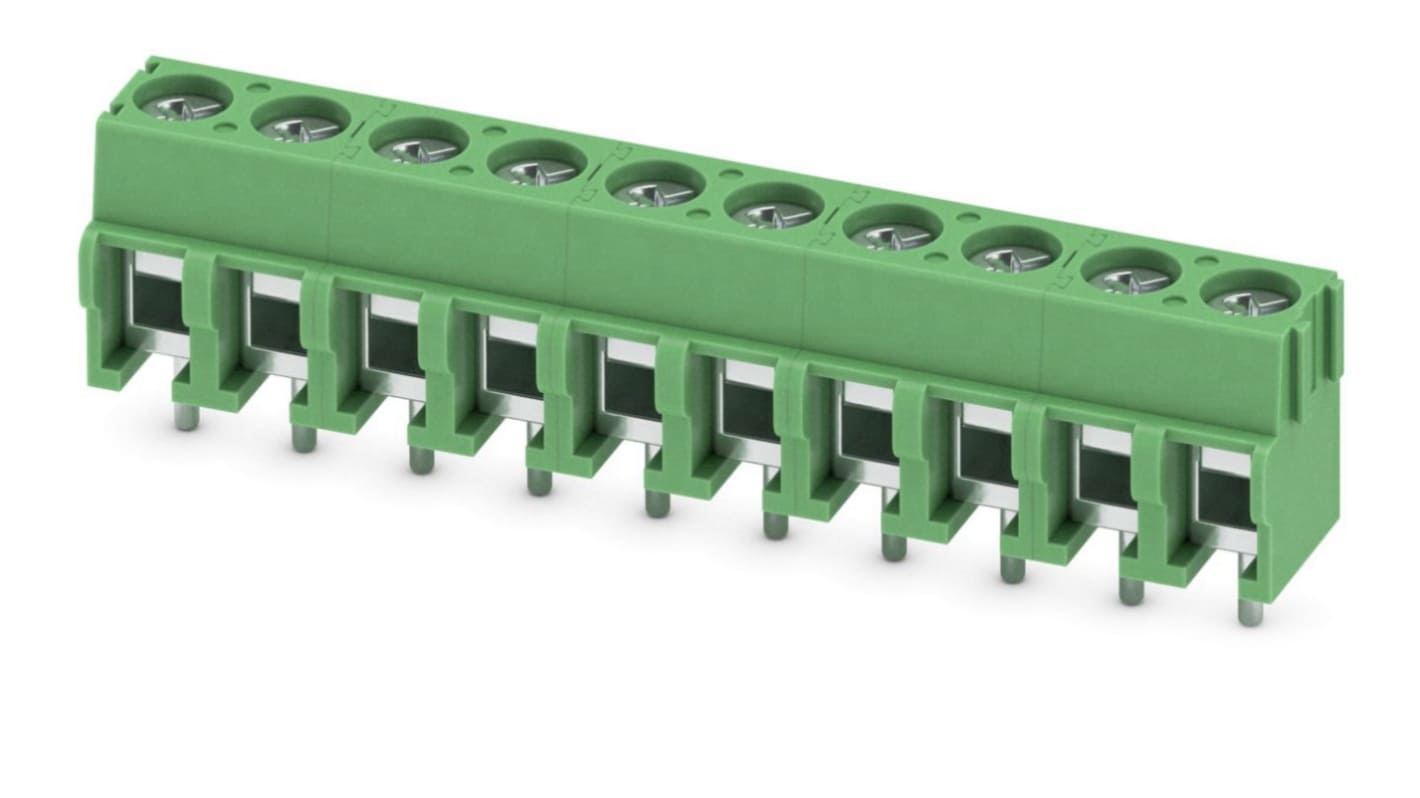

Phoenix Contact PT 1.5/10-5.0-H Series PCB Terminal Block, 5mm Pitch, Through Hole Mount, Screw Termination
- RS Stock No.:
- 648-8692
- Mfr. Part No.:
- 1935242
- Brand:
- Phoenix Contact
688 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£2.53
(exc. VAT)
£3.04
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £2.53 |
| 25 - 74 | £2.27 |
| 75 - 199 | £1.82 |
| 200 - 399 | £1.78 |
| 400 + | £1.73 |
- RS Stock No.:
- 648-8692
- Mfr. Part No.:
- 1935242
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact COMBICON PT 5.0mm PCB Terminal Blocks
A range of COMBICON Compact PCB Screw Terminal Blocks in the PT 1.5 and PT 2.5 Series with 5.0 mm pitch.
Features and Benefits
• High terminal block capacity, thanks to rectangular terminal block space
• 5.0 mm pitch
• Highly flexible conductor protection for easy, repeated connecting
• Rugged design for larger cross sections or high current carrying capacity
• Plus/minus screw
• PT 1.5 types accept solid and flexible wires of 0.2 mm² to 2.5 mm² (26-14 AWG) and are rated at 20 A/250 V max
• PT 2.5 types accept solid and flexible wires of 0.5 mm² to 4.0 mm² (20-10 AWG) and are rated at 32 A/250 V max
• PCB hole diameter 1.3 mm
• Flammability rating UL 94V-0
• 5.0 mm pitch
• Highly flexible conductor protection for easy, repeated connecting
• Rugged design for larger cross sections or high current carrying capacity
• Plus/minus screw
• PT 1.5 types accept solid and flexible wires of 0.2 mm² to 2.5 mm² (26-14 AWG) and are rated at 20 A/250 V max
• PT 2.5 types accept solid and flexible wires of 0.5 mm² to 4.0 mm² (20-10 AWG) and are rated at 32 A/250 V max
• PCB hole diameter 1.3 mm
• Flammability rating UL 94V-0
Standards
DIN EN 60512-5-2:2003-01.
Approvals
UL, CUL, CSA, PCT, VDE, CCA.
Approvals
UL, CUL
Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks
Specifications
Attribute | Value |
|---|---|
| Pitch | 5mm |
| Mounting Type | Through Hole |
| Gender | Plug |
| Termination Method | Screw |
| Current Rating | 17.5A |
| Colour | Green |
| Voltage Rating | 250 V |
| Series | PT 1.5/10-5.0-H |
| Material | Nylon |
