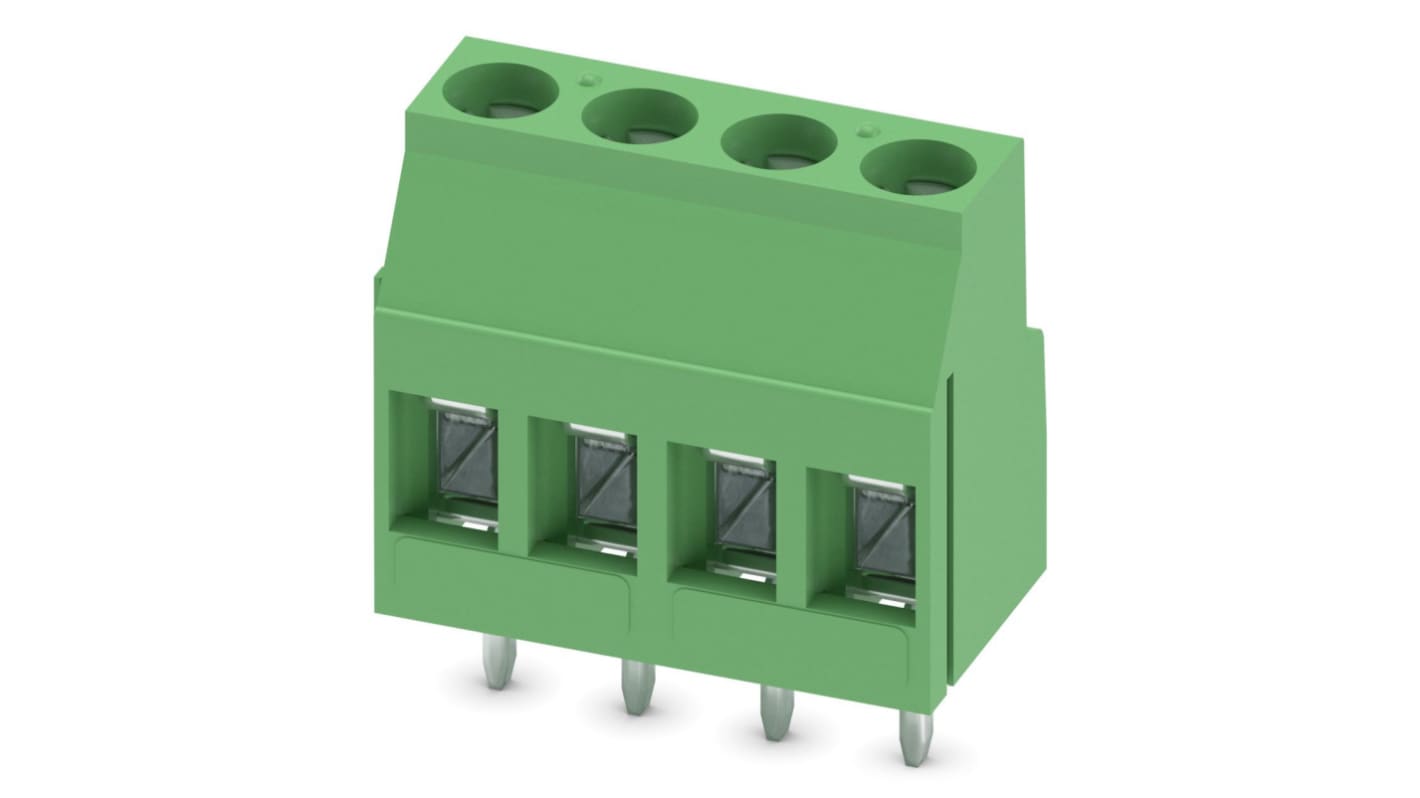

Phoenix Contact MKDS Series PCB Terminal Block, 4-Contact, 5.08mm Pitch, PCB Mount, 1-Row, Screw Termination

The MKDS PCB terminal blocks are through hole mount, have a 5.08 mm pitch, rising cage clamp screw terminals and side interlocking.

• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force
• Allows connection of two conductors
• Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
• Latching on the side enables various numbers of positions to be combined
• RoHS compliant

Stock number 804-4991 has the postion number stamped on the housing and 883-2921 is bridged internally.

Connection in acc. with standard EN-VDE, V0 Flammability rating according to UL 94, DIN EN 60512-5-2:2003-01.

CSA, cRUus, PCT, SEV, CCA,

The Phoenix Contact PCB terminal block that integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve. The latching on the side enables various numbers of positions to be combined.

Copper alloy contact material
Allows connection of two conductors

UL (E60425); CSA (LR13631)
