WAGO PCB Terminal Block, 16-Contact, 5.08 mm Pitch, 1 Row, 236-416
- RS Stock No.:
- 240-7776
- Mfr. Part No.:
- 236-416
- Brand:
- WAGO
Subtotal (1 pack of 60 units)*
£206.04
(exc. VAT)
£247.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 60 + | £3.434 | £206.04 |
*price indicative
- RS Stock No.:
- 240-7776
- Mfr. Part No.:
- 236-416
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 16 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 4A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | Straight | |
| Wire Connection Method | Push-in | |
| Colour | White | |
| Voltage | 150V | |
| Length | 17mm | |
| Width | 82.3mm | |
| Standards/Approvals | CSA, UL | |
| Depth | 14mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 16 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 4A | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Female | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation Straight | ||
Wire Connection Method Push-in | ||
Colour White | ||
Voltage 150V | ||
Length 17mm | ||
Width 82.3mm | ||
Standards/Approvals CSA, UL | ||
Depth 14mm | ||
- COO (Country of Origin):
- CH

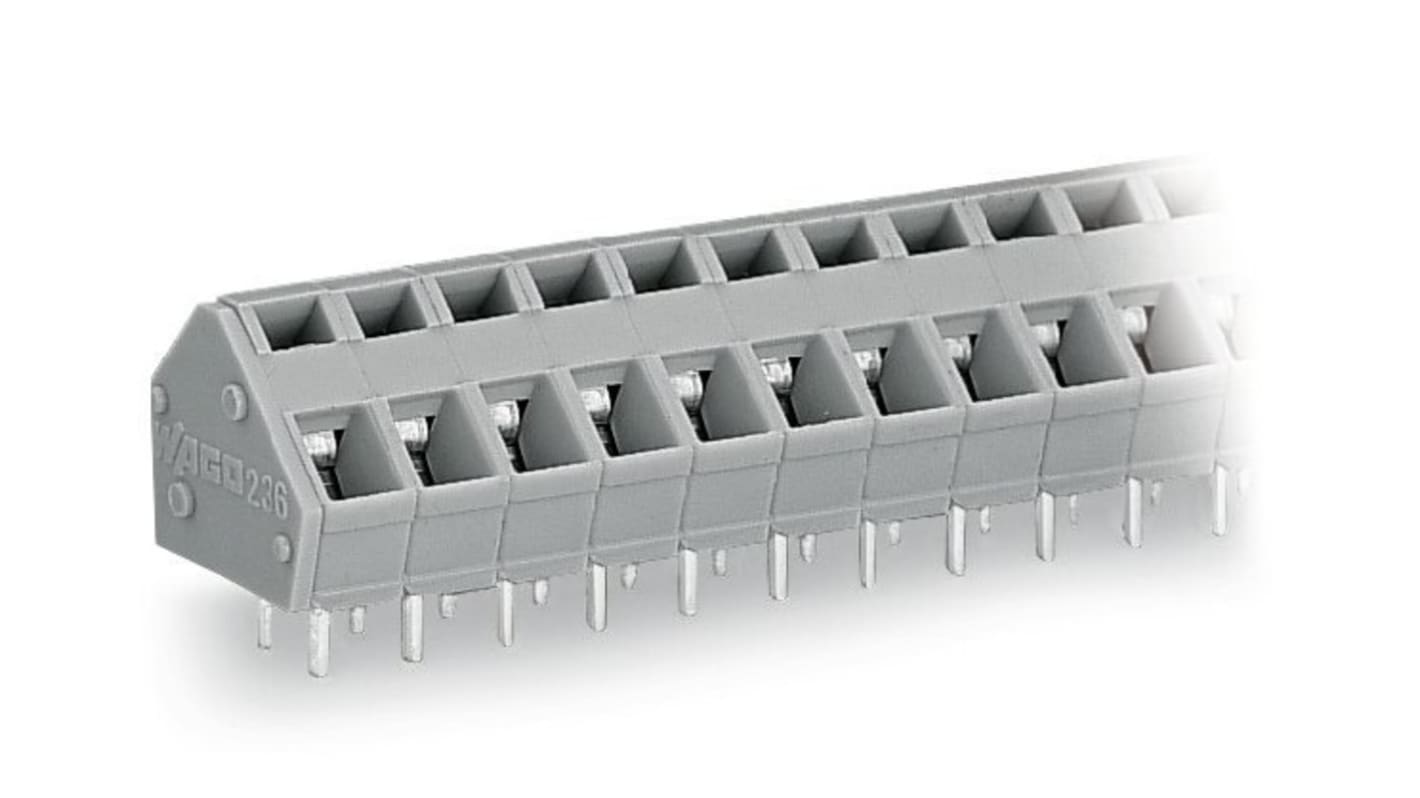

The WAGO PCB terminal block with 16 poles has cage clamp connections and screwdriver actuation. It has polyamide (PA66) insulation and comes in grey colour. 45° conductor entry angle permits a wide range of applications and wiring options.
Commoning option
Tin-plated contacts
