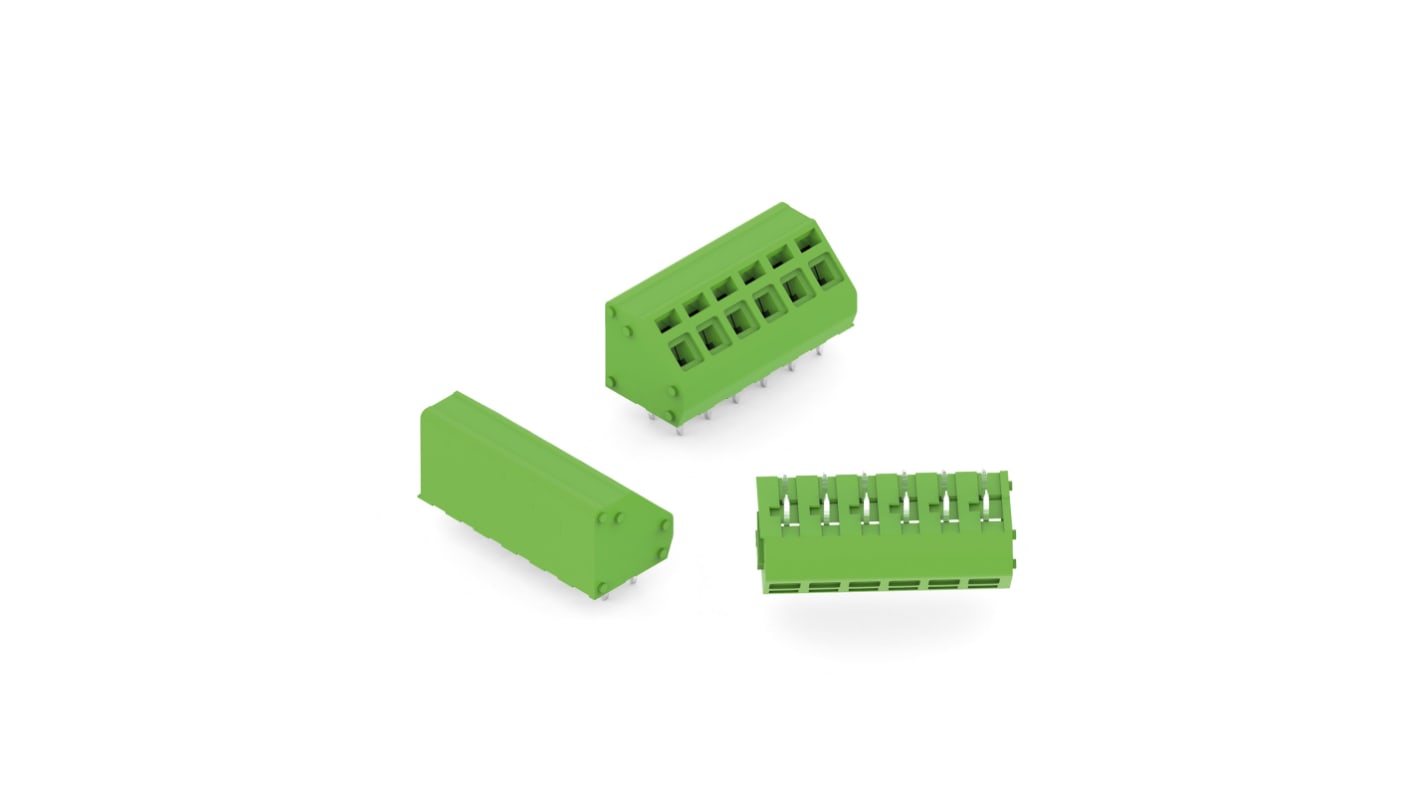

Wurth Elektronik WR-TBL Series PCB Terminal Block, 6-Contact, 5 mm Pitch, 1 Row, 691408720006B
- RS Stock No.:
- 230-2007
- Mfr. Part No.:
- 691408720006B
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 box of 140 units)*
£433.44
(exc. VAT)
£520.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 140 - 140 | £3.096 | £433.44 |
| 280 + | £2.839 | £397.46 |
*price indicative
- RS Stock No.:
- 230-2007
- Mfr. Part No.:
- 691408720006B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 6 | |
| Pitch | 5mm | |
| Current | 15A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 12 AWG | |
| Maximum Wire Size AWG | 28 AWG | |
| Orientation | 45° | |
| Colour | Green | |
| Wire Connection Method | Push-in | |
| Voltage | 300 V | |
| Series | WR-TBL | |
| Standards/Approvals | No | |
| Depth | 13.5mm | |
| Width | 14 mm | |
| Length | 31mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type PCB Terminal Block | ||
Number of Contacts 6 | ||
Pitch 5mm | ||
Current 15A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 12 AWG | ||
Maximum Wire Size AWG 28 AWG | ||
Orientation 45° | ||
Colour Green | ||
Wire Connection Method Push-in | ||
Voltage 300 V | ||
Series WR-TBL | ||
Standards/Approvals No | ||
Depth 13.5mm | ||
Width 14 mm | ||
Length 31mm | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik WR-TBL PCB terminal block push-in spring connection is easy-to-maintain connector that feature a 5 mm pitch. It used tin plated brass terminal with cable sizes in the range of 0.2-2.5mm², either solid or stranded and have a guided pin
Operating temperature -40 up to +105 °C
Insulator flammability rating UL94 V-0
Contact resistance 20 mΩ
