Phoenix Contact PTSM Series PCB Terminal Block, 1-Contact, 2.5 mm Pitch, 1 Row, 1840035
- RS Stock No.:
- 638-405
- Mfr. Part No.:
- 1840035
- Brand:
- Phoenix Contact
Subtotal (1 pack of 1000 units)*
£758.52
(exc. VAT)
£910.22
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £758.52 | £0.759 |
*price indicative
- RS Stock No.:
- 638-405
- Mfr. Part No.:
- 1840035
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | Polyamide Fibreglass | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | 0° | |
| Colour | Signal White | |
| Wire Connection Method | Push-in | |
| Voltage | 160V | |
| Series | PTSM | |
| Standards/Approvals | UL Recognised, VDE, cULus Recognised, IEC 60664-1:2007-04, IEC 60998-2-1:2002-12, IEC 60998-2-2:2002-12 | |
| Width | 5.1mm | |
| Length | 11mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 2.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material Polyamide Fibreglass | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation 0° | ||
Colour Signal White | ||
Wire Connection Method Push-in | ||
Voltage 160V | ||
Series PTSM | ||
Standards/Approvals UL Recognised, VDE, cULus Recognised, IEC 60664-1:2007-04, IEC 60998-2-1:2002-12, IEC 60998-2-2:2002-12 | ||
Width 5.1mm | ||
Length 11mm | ||
- COO (Country of Origin):
- IN

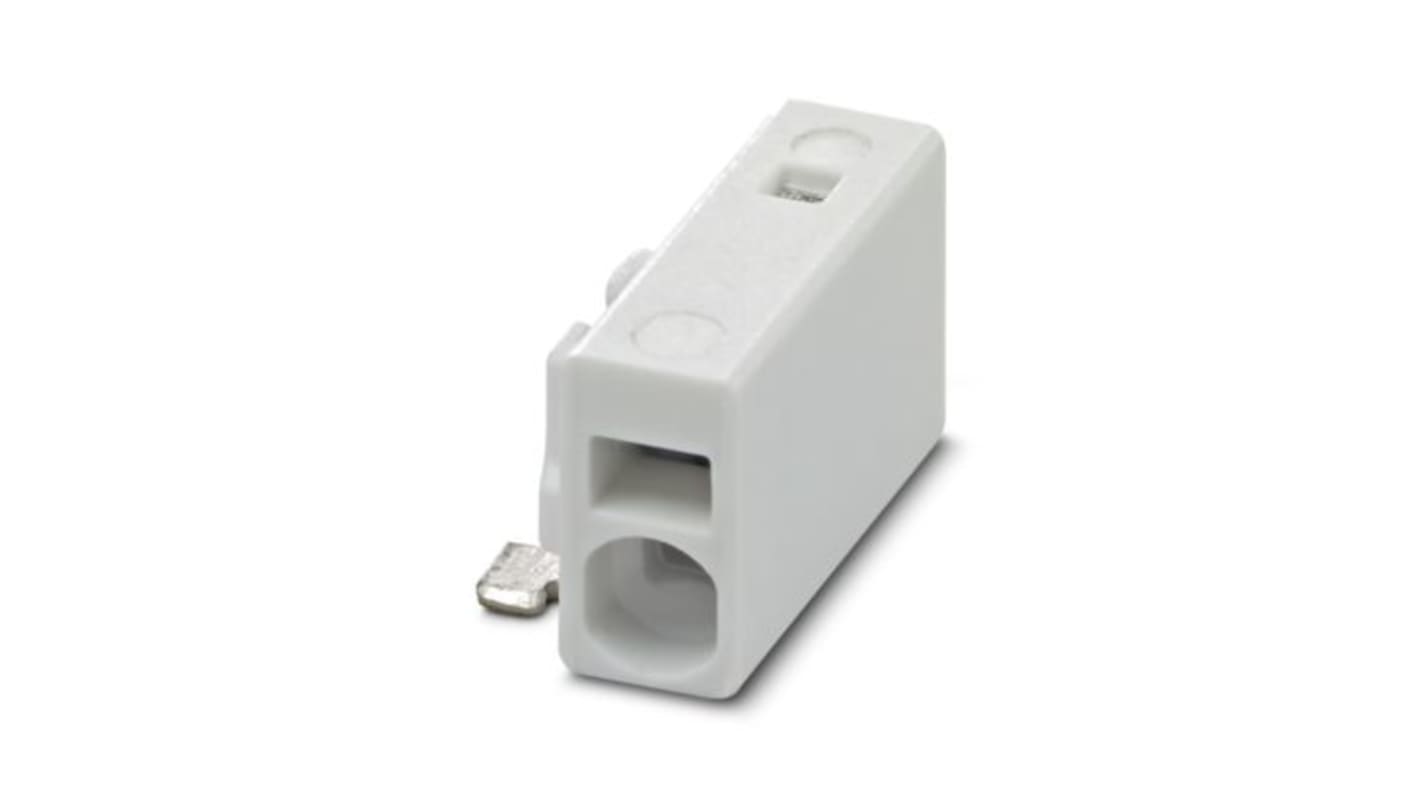

The Phoenix Contact PCB terminal block tailor-made for efficient integration into electronic circuits. Designed with precision and functionality in mind, this component supports a nominal current of 6 A and offers a rated voltage of 160 V. Its innovative push-in spring connection simplifies assembly, allowing for a significantly streamlined soldering process in surface-mounted technology (SMT) applications. Housed in a signal white colour, the terminal block not only ensures aesthetic appeal but also enhances visibility for easy identification on the PCB.
Long term stability ensured by defined contact force
Time saving integration into the SMT soldering process
Manufactured from WEEE/RoHS compliant materials for environmental safety
Achieves excellent performance in a wide range of ambient temperatures
