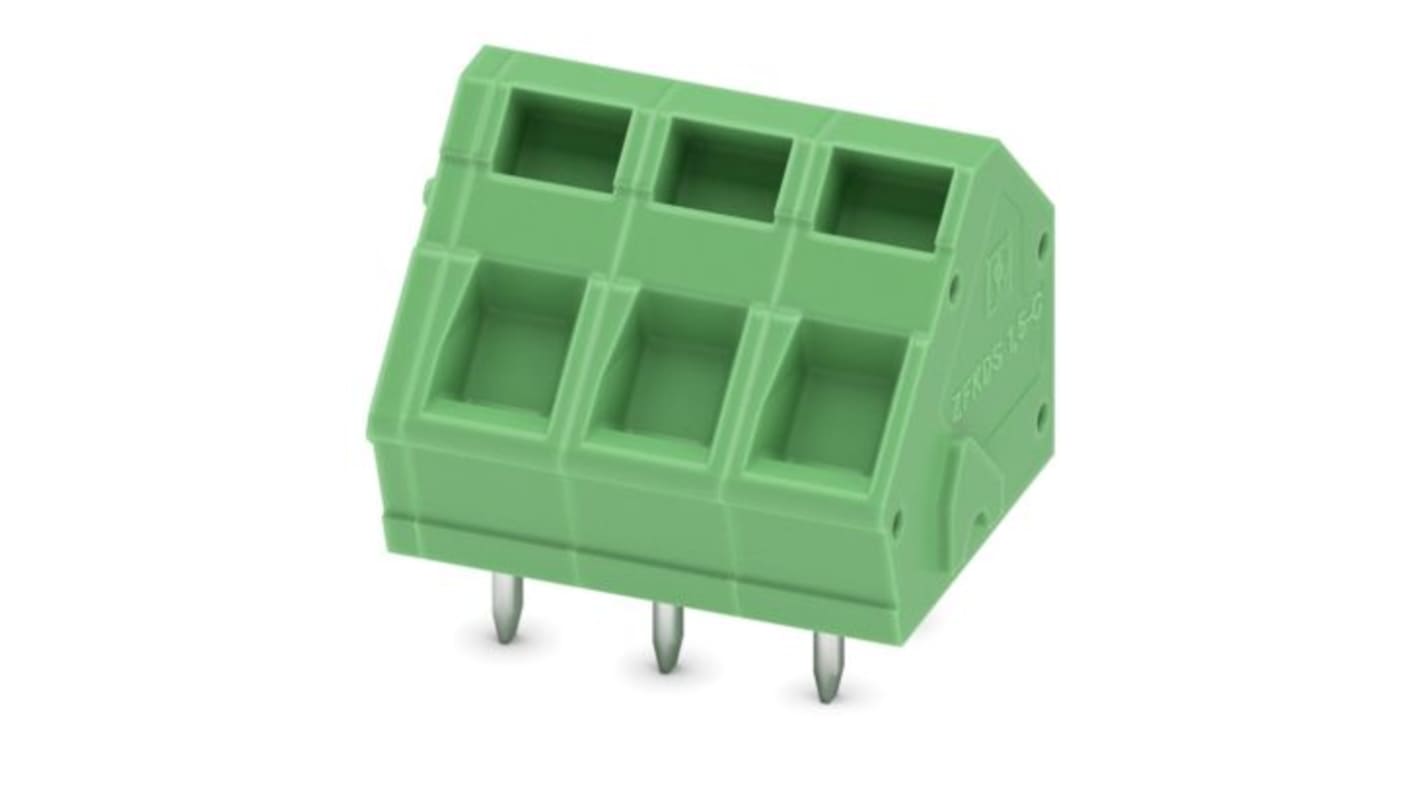

Phoenix Contact ZFKDS(A) 1.5C Series PCB Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, 1933969
- RS Stock No.:
- 608-129
- Mfr. Part No.:
- 1933969
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£62.88
(exc. VAT)
£75.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £62.88 | £1.258 |
*price indicative
- RS Stock No.:
- 608-129
- Mfr. Part No.:
- 1933969
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 3 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 45° | |
| Wire Connection Method | Spring Cage | |
| Colour | Green | |
| Voltage | 40V | |
| Series | ZFKDS(A) 1.5C | |
| Width | 16.88mm | |
| Standards/Approvals | cULus Recognised Approval | |
| Length | 14.02mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 3 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 16A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 45° | ||
Wire Connection Method Spring Cage | ||
Colour Green | ||
Voltage 40V | ||
Series ZFKDS(A) 1.5C | ||
Width 16.88mm | ||
Standards/Approvals cULus Recognised Approval | ||
Length 14.02mm | ||
- COO (Country of Origin):
- IN
The Phoenix Contact PCB terminal block represents an exceptional solution for connectivity within electronic assemblies. Renowned for its robust design, it delivers reliable performance under various conditions. Featuring a nominal current rating of 16 A and a rated voltage of 400 V, this terminal block is engineered for efficiency and safety. With its spring-cage connection method and angled conductor/PCB connection direction, it simplifies the installation process, ensuring versatile applications across an extensive range of industries.
Accommodates a variety of conductor cross sections for flexibility in use
Offers a specific focus on environmental compliance, including WEEE and RoHS standards
Allows for easy multi row arrangements on PCBs for complex designs
Optimised for integration into automated systems, enhancing production efficiency
