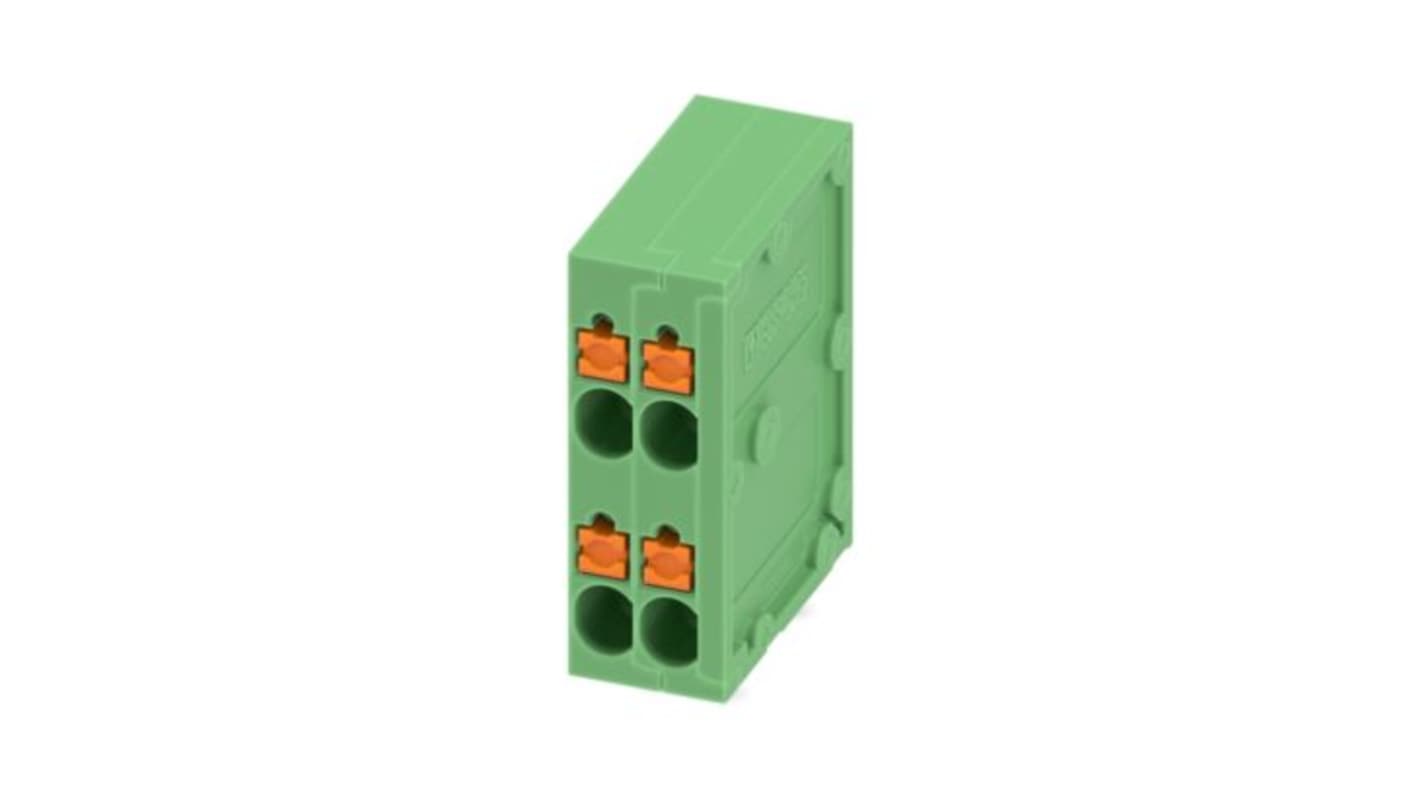

Phoenix Contact PCB Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 1841490
- RS Stock No.:
- 607-121
- Mfr. Part No.:
- 1841490
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£232.12
(exc. VAT)
£278.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £232.12 | £2.321 |
*price indicative
- RS Stock No.:
- 607-121
- Mfr. Part No.:
- 1841490
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 2 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Push-in Spring | |
| Voltage | 20V | |
| Standards/Approvals | cULus Recognised Approval ID: E60425-20061129, VDE approval of drawings Approval ID: 40043184 | |
| Width | 12mm | |
| Length | 18mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 2 | ||
Product Type PCB Terminal Block | ||
Pitch 3.5mm | ||
Current 10A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Push-in Spring | ||
Voltage 20V | ||
Standards/Approvals cULus Recognised Approval ID: E60425-20061129, VDE approval of drawings Approval ID: 40043184 | ||
Width 12mm | ||
Length 18mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB terminal block is engineered to provide reliable connectivity in various applications, promoting efficient electrical solutions for both industrial and automation settings. Designed with a nominal current capacity of 10 A and robust rated voltage specifications, this terminal block ensures superior performance even in demanding environments. With its push-in spring connection method and wave soldering mounting technique, it facilitates quick and tool-free installation. Its green insulating material not only enhances visibility but also meets stringent compliance standards. The dimensions and features are optimised for maximum contact density, making it an ideal choice for compact circuit designs.
Designed for stable long term contact performance
Accommodates flexible conductor connections for versatile applications
Superior quality with WEEE and RoHS compliance for environmental sustainability
Built for high reliability across a wide temperature range
