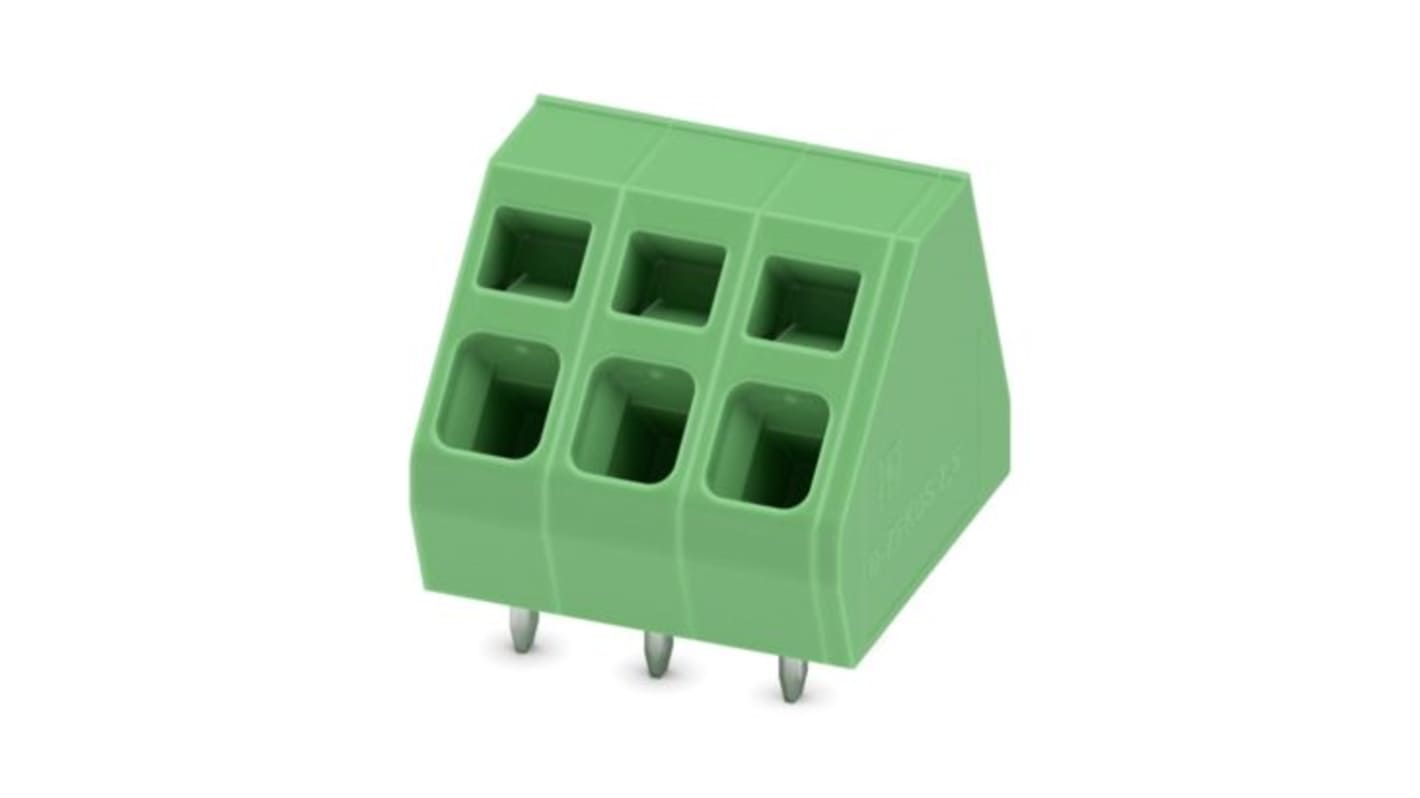

Phoenix Contact ZFKDSA 2.5 Series PCB Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 1799167
- RS Stock No.:
- 607-091
- Mfr. Part No.:
- 1799167
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£65.30
(exc. VAT)
£78.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £65.30 | £1.306 |
*price indicative
- RS Stock No.:
- 607-091
- Mfr. Part No.:
- 1799167
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Wire Connection Method | Spring Cage | |
| Colour | Green | |
| Voltage | 40V | |
| Series | ZFKDSA 2.5 | |
| Standards/Approvals | cULus Recognised | |
| Length | 16.85mm | |
| Width | 16.24mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Wire Connection Method Spring Cage | ||
Colour Green | ||
Voltage 40V | ||
Series ZFKDSA 2.5 | ||
Standards/Approvals cULus Recognised | ||
Length 16.85mm | ||
Width 16.24mm | ||
- COO (Country of Origin):
- IN
The Phoenix Contact Printed circuit board terminal block offers unmatched efficiency and reliability, supporting a nominal current of up to 24 A and a rated voltage of 400 V. Engineered for superior performance and longevity, it features a spring-cage connection mechanism that simplifies installation and enhances stability. The precise 5.08 mm pitch with three potential connections enables versatile configurations for various applications. This product seamlessly integrates into any layout, making it an ideal choice for those who seek both quality and functionality in demanding environments.
Adaptable for multi row arrangements on a printed circuit board
Provides clear and reliable pin layout for easy integration during assembly
Optimised for wave soldering, guaranteeing high quality connections
Environmentally friendly, meeting WEEE and RoHS compliance requirements
Lightweight packaging facilitates easy handling and transportation
