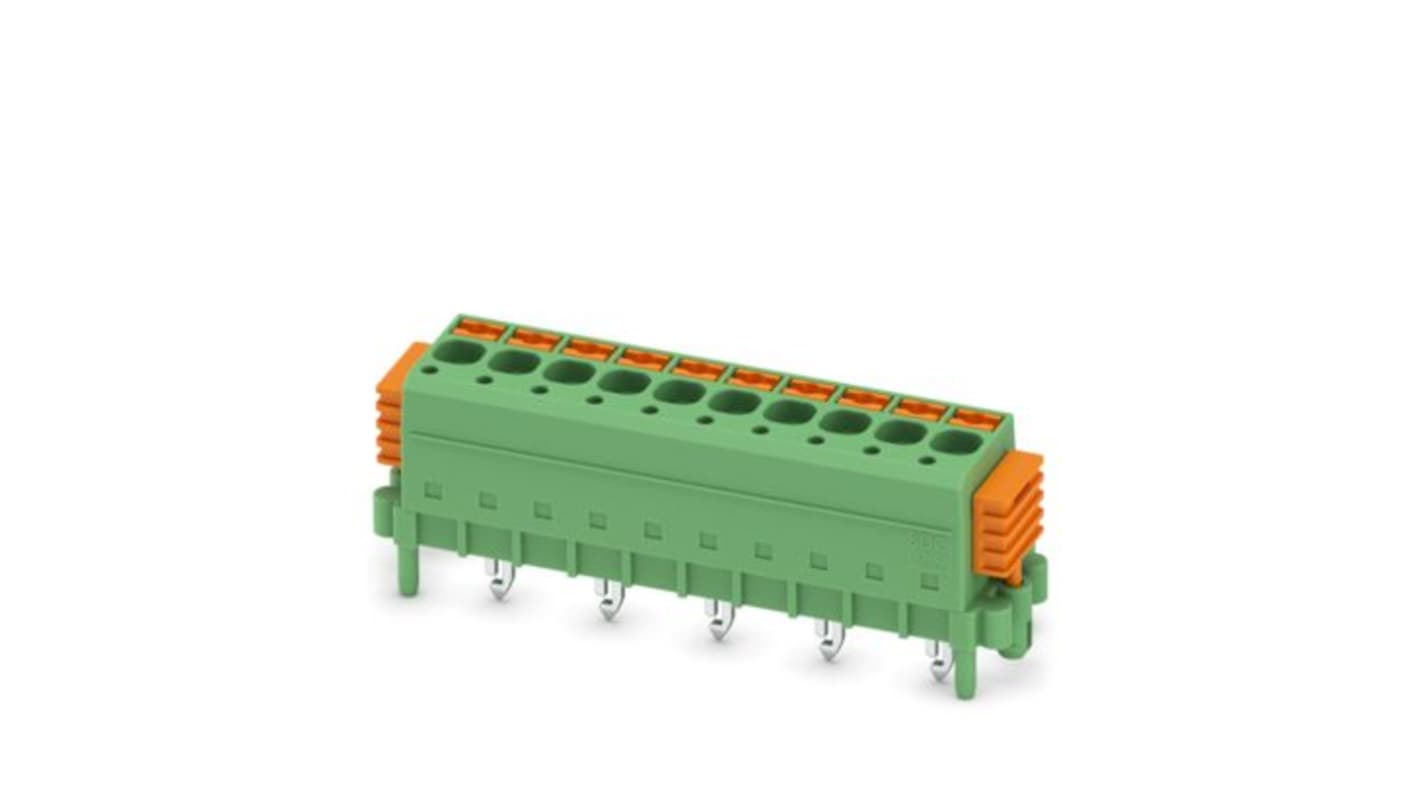

Phoenix Contact SDC 2 Series PCB Connector, 10-Contact, 5 mm Pitch, Plug-in, 1 Row Push-in Spring
- RS Stock No.:
- 521-495
- Mfr. Part No.:
- 1864118
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£475.76
(exc. VAT)
£570.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £475.76 | £9.515 |
*price indicative
- RS Stock No.:
- 521-495
- Mfr. Part No.:
- 1864118
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 10 | |
| Pitch | 5mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Mount Type | Plug-in | |
| Housing Material | Polyamide | |
| Colour | Green | |
| Termination Type | Push-in Spring | |
| Contact Gender | Female | |
| Voltage | 160V | |
| Width | 58.18mm | |
| Series | SDC 2 | |
| Length | 15.3mm | |
| Standards/Approvals | ROHS,IEC 60999-1:1999-11 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 10 | ||
Pitch 5mm | ||
Current 8A | ||
Number of Rows 1 | ||
Mount Type Plug-in | ||
Housing Material Polyamide | ||
Colour Green | ||
Termination Type Push-in Spring | ||
Contact Gender Female | ||
Voltage 160V | ||
Width 58.18mm | ||
Series SDC 2 | ||
Length 15.3mm | ||
Standards/Approvals ROHS,IEC 60999-1:1999-11 | ||
- COO (Country of Origin):
- SK
The Phoenix Contact direct connector is designed to streamline your PCB connections with remarkable efficiency and reliability. The innovative SKEDD direct plug-in technology allows for flexible positioning on your PCB, making it ideal for a variety of applications. With a robust pin layout and optimal contact technology, it ensures a stable connection while reducing component requirements and process costs. The push-in spring connection method not only allows for quick installation but also eliminates the need for additional tools, making it user-friendly. This connector meets rigorous safety standards, offering excellent electrical performance and environmental resilience, making it a go-to choice for modern electronic designs.
Enables flexible positioning on the PCB with its versatile design
Offers simple hand insertion for quick and easy assembly
Suitable for PCBs with both chemically tin plated and Hot Air Levelling surfaces
Integrated testing feature allows for convenient and quick troubleshooting
Utilises a colour coded actuating push button for intuitive operation
Vibration resistant connection enhances long term reliability
Robust packaging ensures safe delivery and storage
Durable materials provide exceptional mechanical and electrical performance
