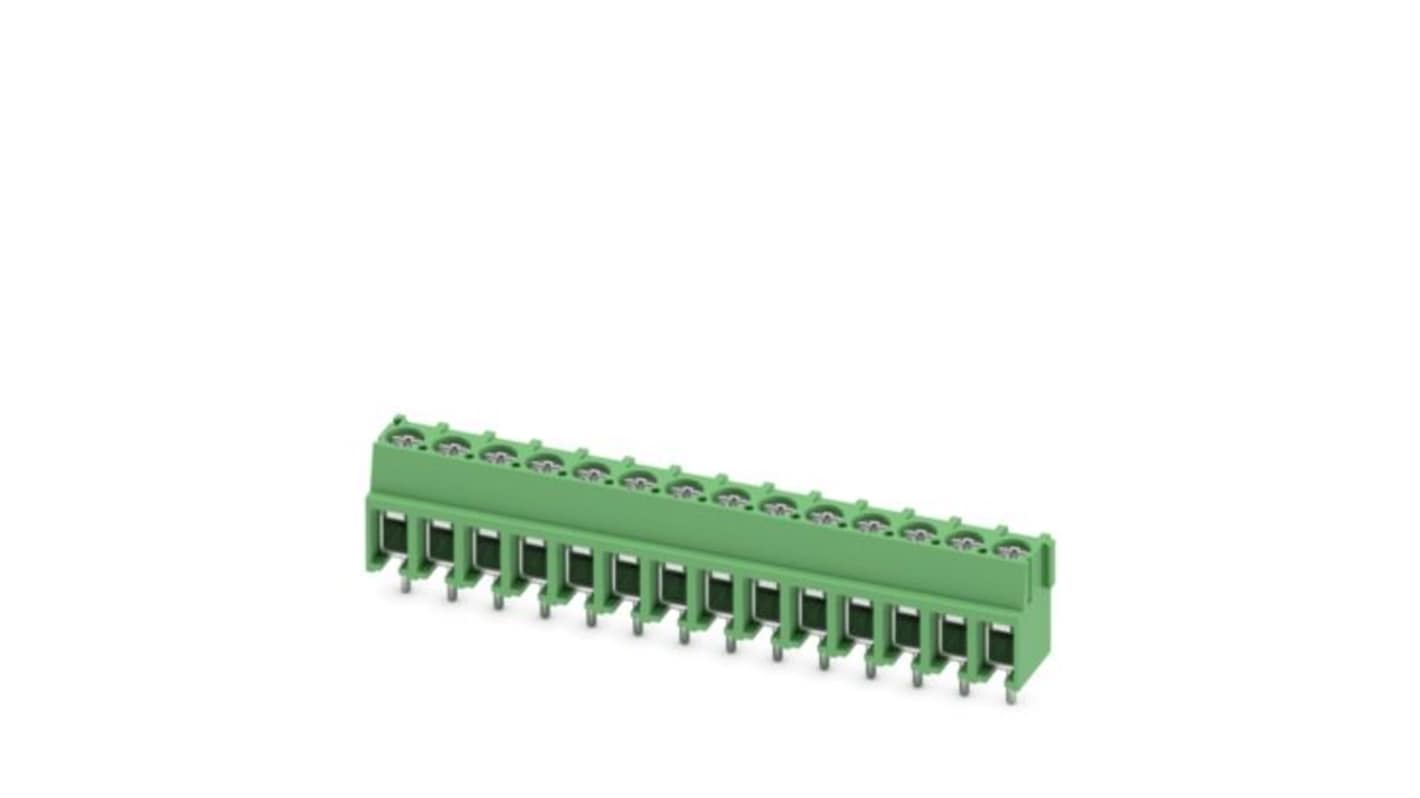

Phoenix Contact PT 2 Series PCB Terminal Block, 14-Contact, 5 mm Pitch, 1 Row, 1935899
- RS Stock No.:
- 483-831
- Mfr. Part No.:
- 1935899
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£135.52
(exc. VAT)
£162.62
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £135.52 | £2.71 |
*price indicative
- RS Stock No.:
- 483-831
- Mfr. Part No.:
- 1935899
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 14 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 32A | |
| Minimum Wire Size mm² | 0.5mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 4mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 40V | |
| Width | 70mm | |
| Standards/Approvals | cULus Recognised Approval ID: E60425-20030211, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, VDE report with production monitoring Approval ID: 40029839 | |
| Length | 9mm | |
| Series | PT 2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 14 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 32A | ||
Minimum Wire Size mm² 0.5mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 4mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 10AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 40V | ||
Width 70mm | ||
Standards/Approvals cULus Recognised Approval ID: E60425-20030211, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, VDE report with production monitoring Approval ID: 40029839 | ||
Length 9mm | ||
Series PT 2 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block is a high-quality solution designed for seamless integration into your electronic assemblies. With its robust design and reliable performance, this product excels in demanding environments. Engineered for ease of use, it features a screw connection method that provides excellent stability, making it suitable for various applications in both industrial and commercial settings. Its compact design allows for efficient space utilisation on printed circuit boards while ensuring optimum connectivity for multiple conductors. Additionally, this terminal block is compliant with international standards, affirming its reliability and safety.
Designed for optimal performance in electronic assemblies
Facilitates secure and stable connections with dual conductor capabilities
Compliant with WEEE/RoHS standards ensuring environmental safety
Configured for wave soldering, enhancing installation efficiency
Offers a high terminal block capacity to accommodate complex wiring needs
Constructed from high-quality Cu alloy for enhanced conductivity
Utilises a green housing colour for easy identification on PCBs
Incorporates a well-known connection principle for widespread compatibility
