WAGO 250 Series PCB Connector, 7-Contact, 5 mm Pitch, 1 Row, 250-507
- RS Stock No.:
- 225-663
- Mfr. Part No.:
- 250-507
- Brand:
- WAGO
Subtotal (1 box of 30 units)*
£60.30
(exc. VAT)
£72.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £60.30 | £2.01 |
*price indicative
- RS Stock No.:
- 225-663
- Mfr. Part No.:
- 250-507
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 7 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Minimum Wire Size mm² | 0.5mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 45° | |
| Colour | Grey | |
| Voltage | 32V | |
| Series | 250 | |
| Standards/Approvals | No | |
| Depth | 13mm | |
| Width | 36.5mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 7 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Minimum Wire Size mm² 0.5mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 45° | ||
Colour Grey | ||
Voltage 32V | ||
Series 250 | ||
Standards/Approvals No | ||
Depth 13mm | ||
Width 36.5mm | ||
- COO (Country of Origin):
- PL

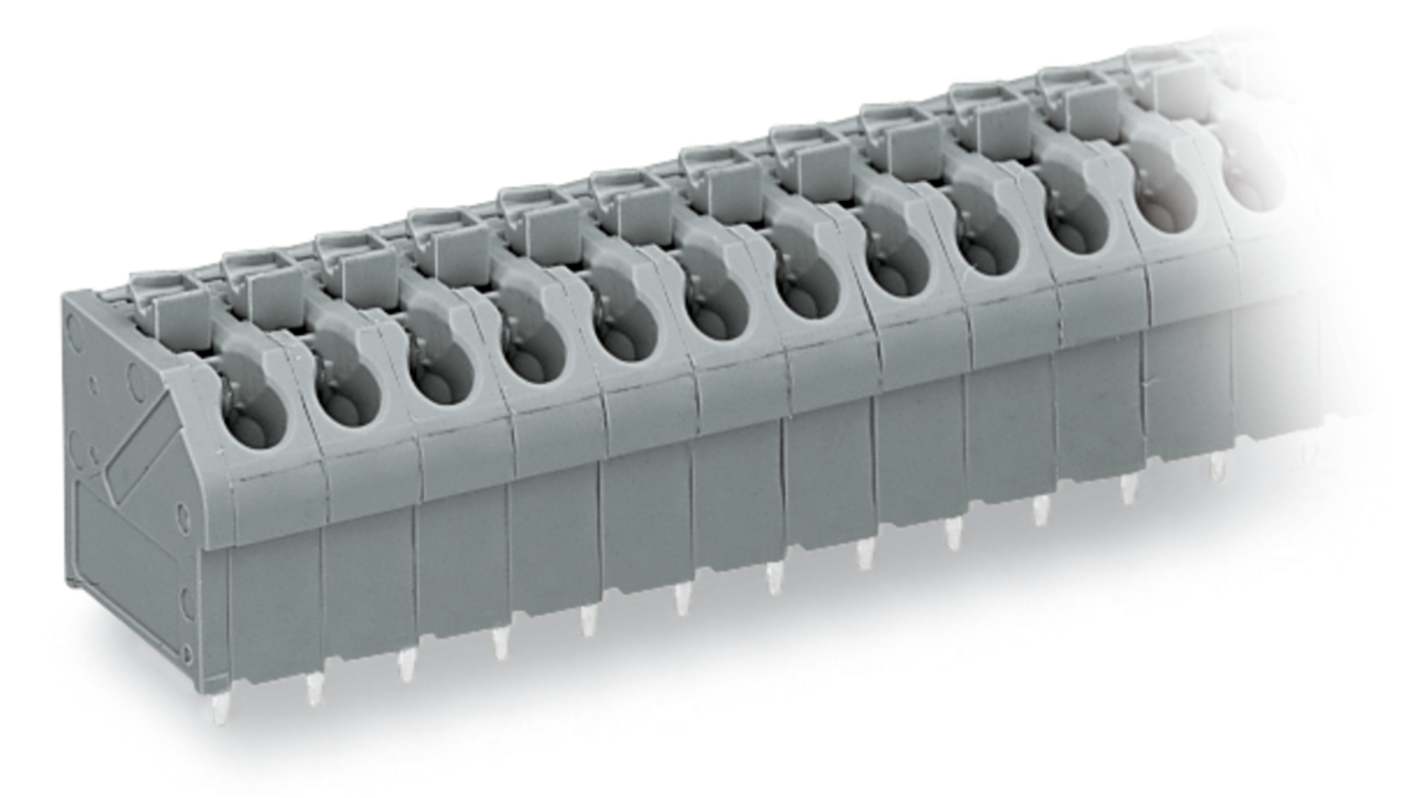

The Wago PCB Terminal Block combines functionality and efficiency, specifically designed for seamless integration into various electronic applications. Equipped with push button technology, it allows for easy termination of both solid and fine stranded conductors, making it ideal for tight spaces where simplicity is key. The innovative push in CAGE CLAMP technology ensures reliable and secure connections, reducing installation time and enhancing overall performance.
Push in termination system for hassle free installation
Space saving design allows for high density wiring
Flexible conductor connection options enhance usability across applications
Durable polyamide insulation material offers excellent thermal resistance
Direct marking capabilities streamline labelling processes
Compliant with RoHS directives to meet environmental standards
