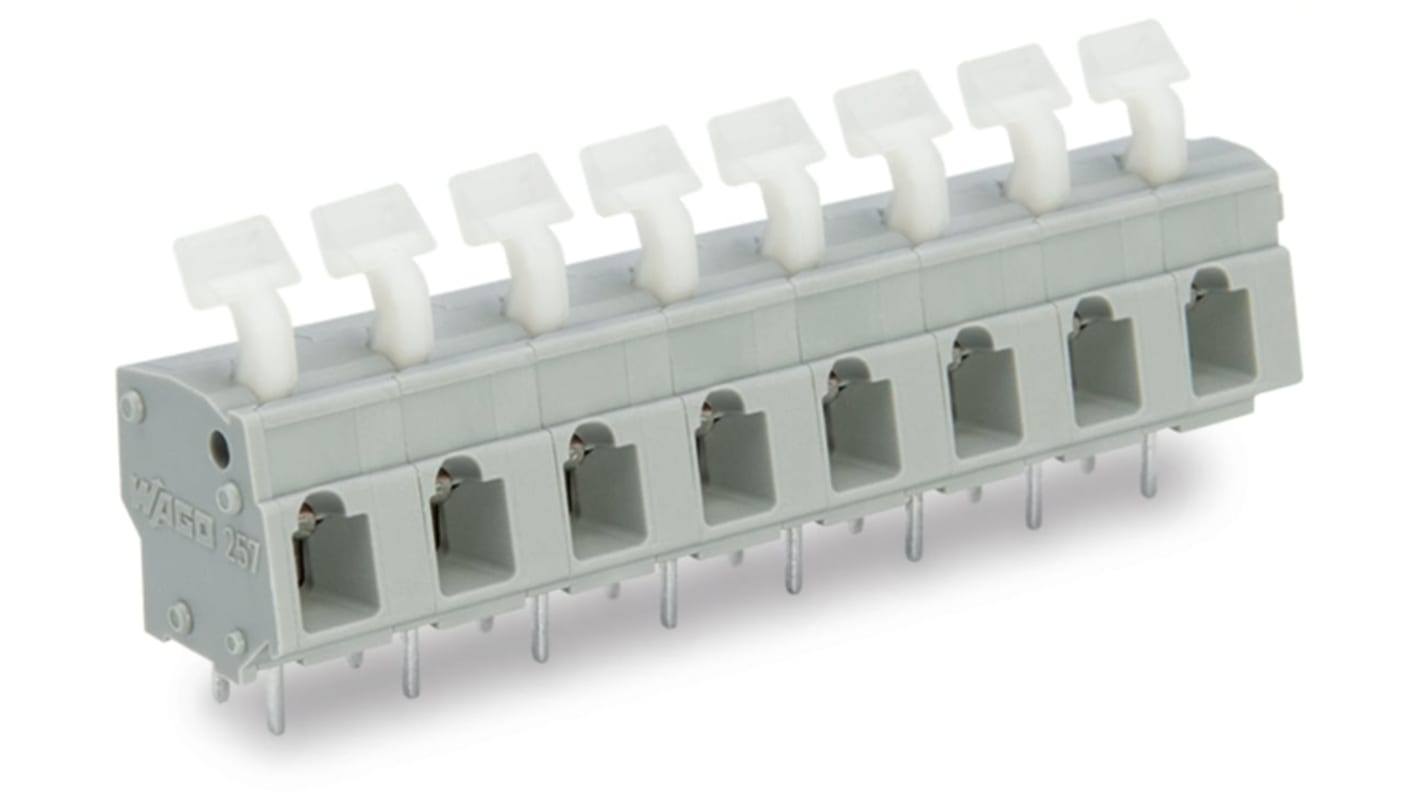

WAGO 257 Series PCB Connector, 12-Contact, 7.62 mm Pitch, 1 Row, 257-562
- RS Stock No.:
- 225-479
- Mfr. Part No.:
- 257-562
- Brand:
- WAGO
Subtotal (1 box of 10 units)*
£40.91
(exc. VAT)
£49.09
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £40.91 | £4.091 |
*price indicative
- RS Stock No.:
- 225-479
- Mfr. Part No.:
- 257-562
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 12 | |
| Pitch | 7.62mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Colour | Grey | |
| Voltage | 40V | |
| Standards/Approvals | No | |
| Width | 92.9mm | |
| Series | 257 | |
| Depth | 14.2mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 12 | ||
Pitch 7.62mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Colour Grey | ||
Voltage 40V | ||
Standards/Approvals No | ||
Width 92.9mm | ||
Series 257 | ||
Depth 14.2mm | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block is engineered to facilitate seamless connections in various electrical applications. With push button actuation and CAGE CLAMP technology, this product ensures a reliable and easy experience for users, whether in the field or in a controlled setting. Ideal for demanding environments, it permits tool free operation and minimal installation effort while accommodating a range of wire sizes.
Balanced for flexibility with metric or inch pin spacing
Constructed to meet rigorous electrical standards
Compliant with RoHS regulations for environmental safety
Designed to reduce installation time significantly
Offers a high number of connection points in a compact layout
Suitable for different conductor types enhancing versatility
