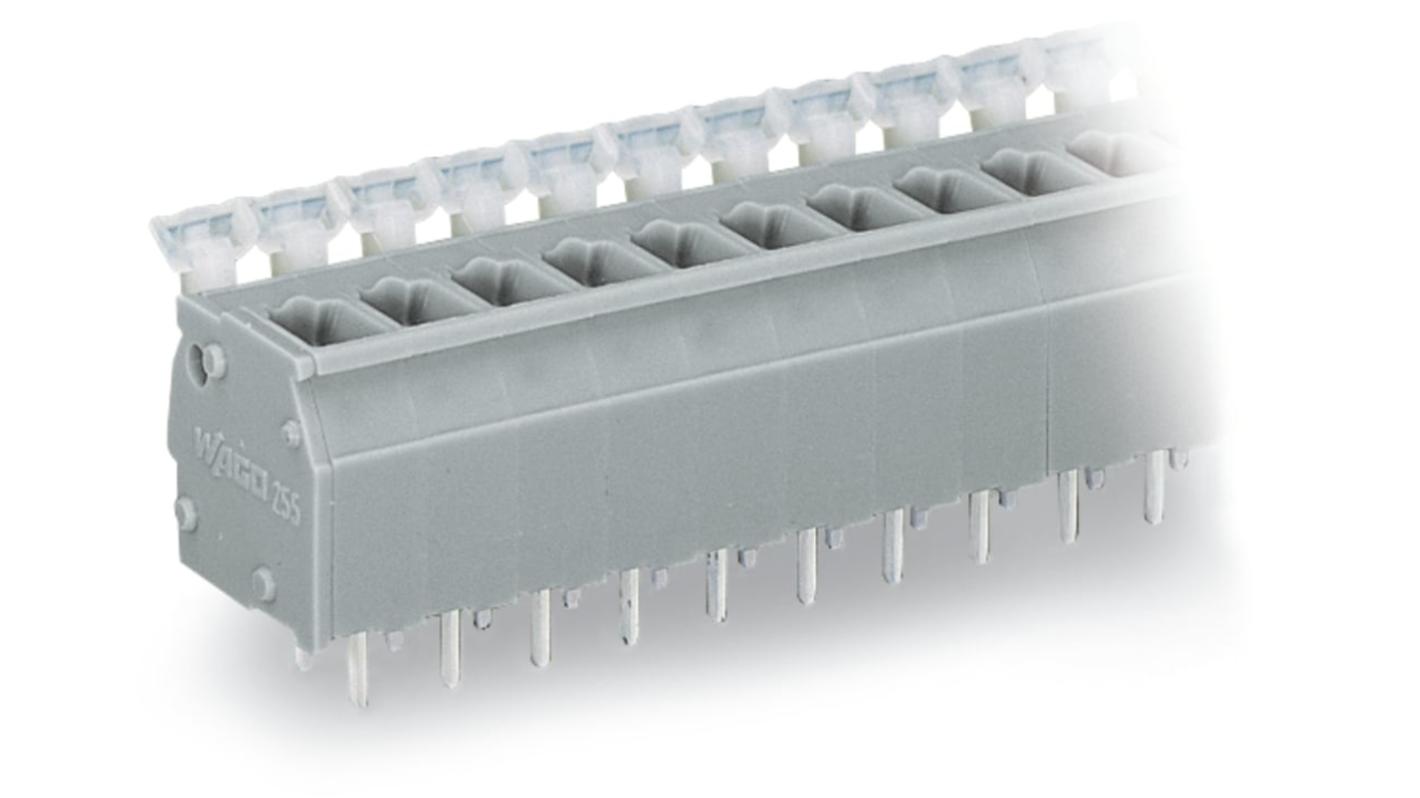

WAGO 255 Series PCB Connector, 12-Contact, 5.08 mm Pitch, 1 Row, 255-412
- RS Stock No.:
- 225-437
- Mfr. Part No.:
- 255-412
- Brand:
- WAGO
Subtotal (1 box of 15 units)*
£50.00
(exc. VAT)
£60.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £50.00 | £3.333 |
*price indicative
- RS Stock No.:
- 225-437
- Mfr. Part No.:
- 255-412
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 12 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Voltage | 32V | |
| Series | 255 | |
| Standards/Approvals | No | |
| Width | 62.9mm | |
| Depth | 18.3mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 12 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 24A | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Grey | ||
Voltage 32V | ||
Series 255 | ||
Standards/Approvals No | ||
Width 62.9mm | ||
Depth 18.3mm | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block with push button technology offers innovative wiring solutions for professionals seeking efficiency and reliability in their projects. Featuring a robust CAGE CLAMP connection, this product combines convenience with high electrical performance. Its versatile design allows for easy adjustments between metric and inch pin spacing, catering to a variety of installation requirements. Furthermore, its user friendly push button actuation simplifies the wiring process, making it ideal for in the field applications.
Tool free operation streamlines installation and reduces downtime
Optimised for both solid and fine stranded conductors for versatility
Constructed with flame retardant materials for enhanced safety
Available in variants to suit specific project requirements and preferences
