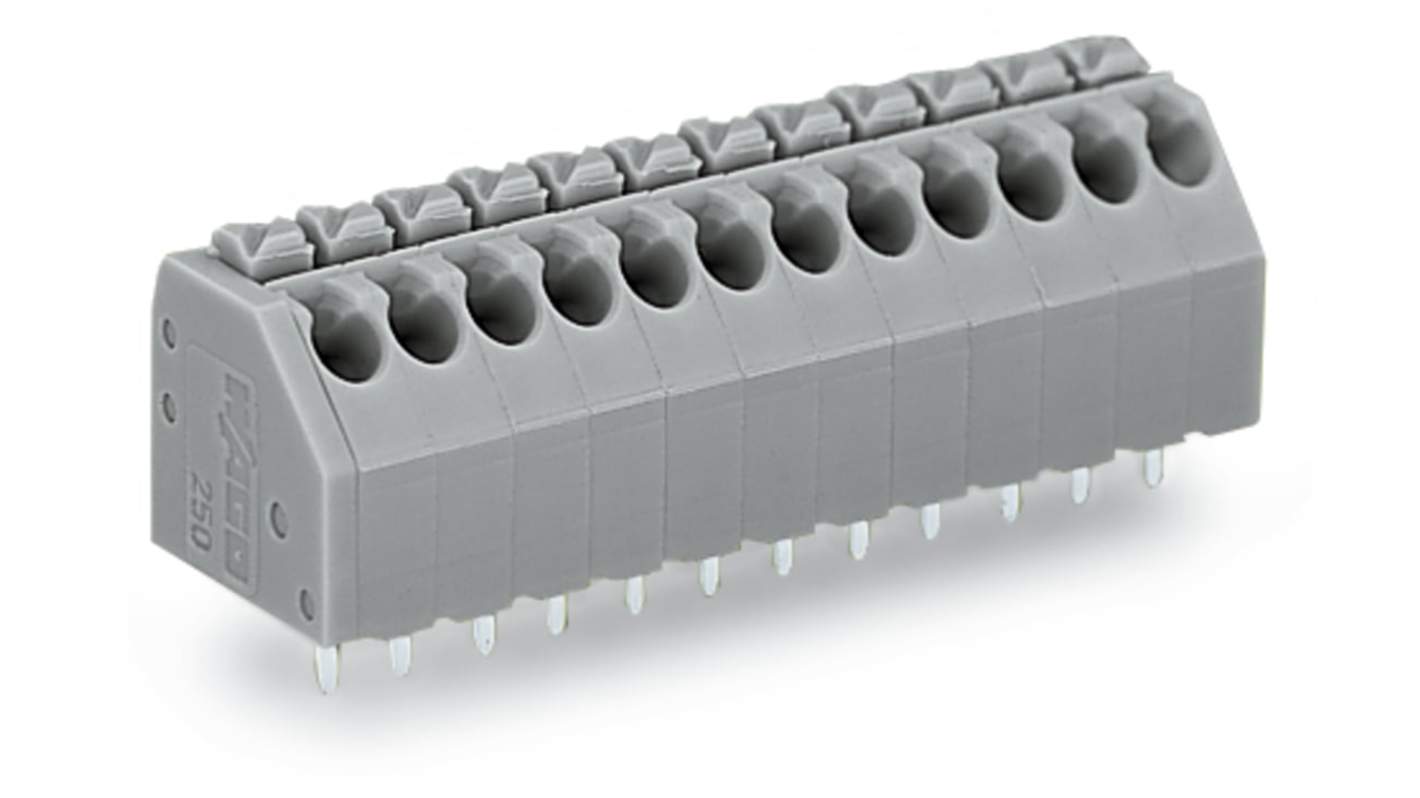

WAGO 250 Series PCB Connector, 10-Contact, 3.5 mm Pitch, 1 Row, 250-110/000-012
- RS Stock No.:
- 225-333
- Mfr. Part No.:
- 250-110/000-012
- Brand:
- WAGO
Subtotal (1 box of 30 units)*
£50.90
(exc. VAT)
£61.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £50.90 | £1.697 |
*price indicative
- RS Stock No.:
- 225-333
- Mfr. Part No.:
- 250-110/000-012
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 10 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Orange | |
| Voltage | 160V | |
| Series | 250 | |
| Depth | 12mm | |
| Width | 36.5mm | |
| Standards/Approvals | IEC/EN 60664-1, UL 1059, CSA C22.2 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 10 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Orange | ||
Voltage 160V | ||
Series 250 | ||
Depth 12mm | ||
Width 36.5mm | ||
Standards/Approvals IEC/EN 60664-1, UL 1059, CSA C22.2 | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block combines reliable functionality with a compact design, ideal for a variety of applications. The product features push in terminations, ensuring a secure and straightforward connection for both solid and fine stranded conductors. Engineered with a 45° conductor entry angle, it simplifies the wiring process. The robust construction, highlighted by high quality polyamide housing and copper alloy clamping springs, guarantees durability in demanding environments.
Direct marking options allow for easy identification of connections
Multiple variants available to cater to a wide range of needs
Adaptable for different conductor types increasing its versatility
RoHS compliant status ensures it meets environmental standards
