WAGO 234 Series PCB Terminal Block, 8-Contact, 2.54 mm Pitch, 1 Row, 234-508
- RS Stock No.:
- 225-305
- Mfr. Part No.:
- 234-508
- Brand:
- WAGO
Subtotal (1 box of 55 units)*
£182.76
(exc. VAT)
£219.31
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £182.76 | £3.323 |
*price indicative
- RS Stock No.:
- 225-305
- Mfr. Part No.:
- 234-508
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 2.54mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 63V | |
| Series | 234 | |
| Width | 22.52mm | |
| Standards/Approvals | No | |
| Depth | 14.4mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 8 | ||
Pitch 2.54mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Connector Gender Male | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 20AWG | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 63V | ||
Series 234 | ||
Width 22.52mm | ||
Standards/Approvals No | ||
Depth 14.4mm | ||
- COO (Country of Origin):
- CH

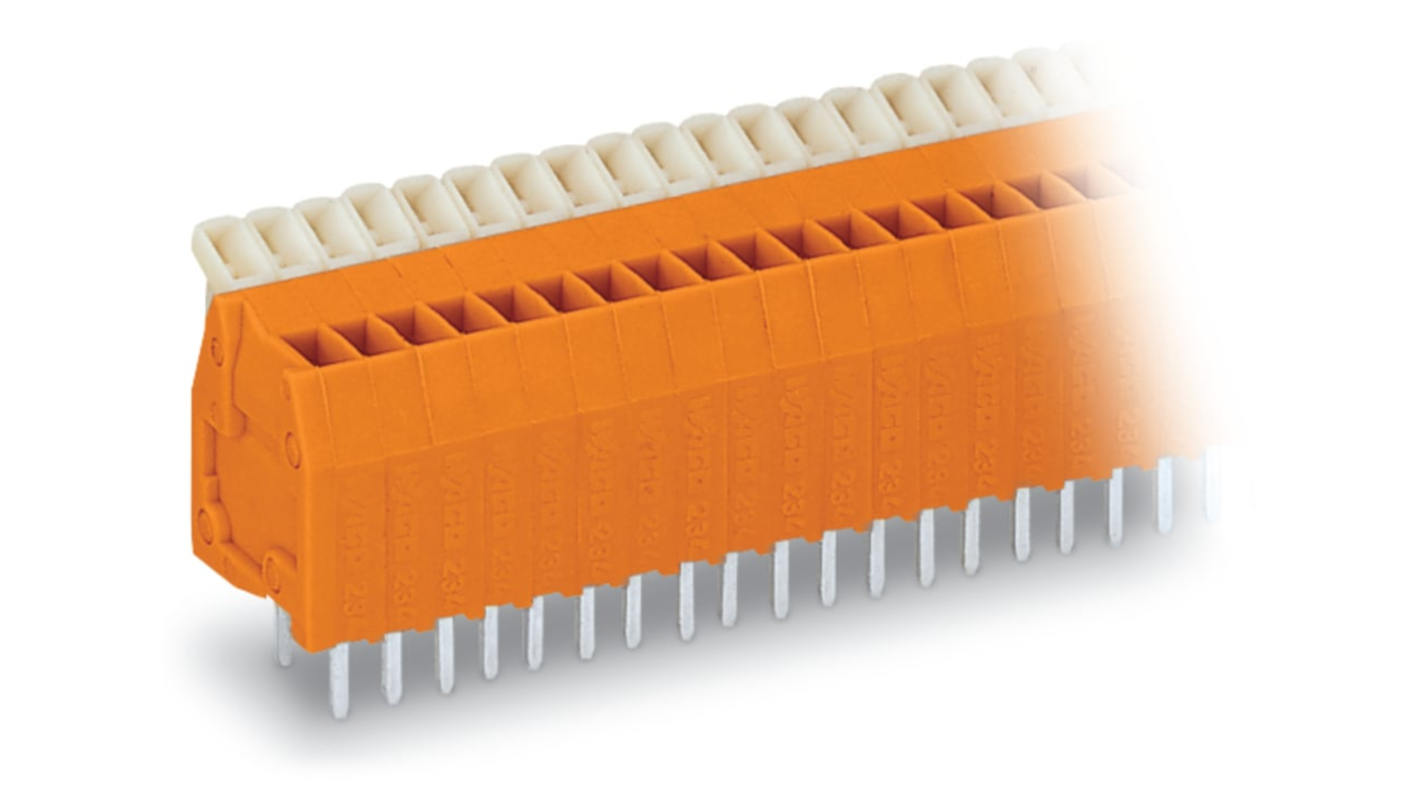

The Wago PCB Terminal Block is a sophisticated solution designed for versatile connectivity. Engineered with push button actuation and CAGE CLAMP technology, it allows for tool free operation, making it ideal for seamless in the field wiring. With eight poles and a compact design, this terminal block is perfect for applications with limited space while ensuring high mechanical stability through double solder pins. The robust orange housing not only offers a visually appealing aesthetic but also is constructed from durable polyamide that meets stringent fire safety standards.
Versatile for various wiring configurations
V0 rated insulation material ensures safety compliance
Direct push button actuation streamlines installation
Multiple connection options cater to diverse applications
Integrated marking strips support clear identification
