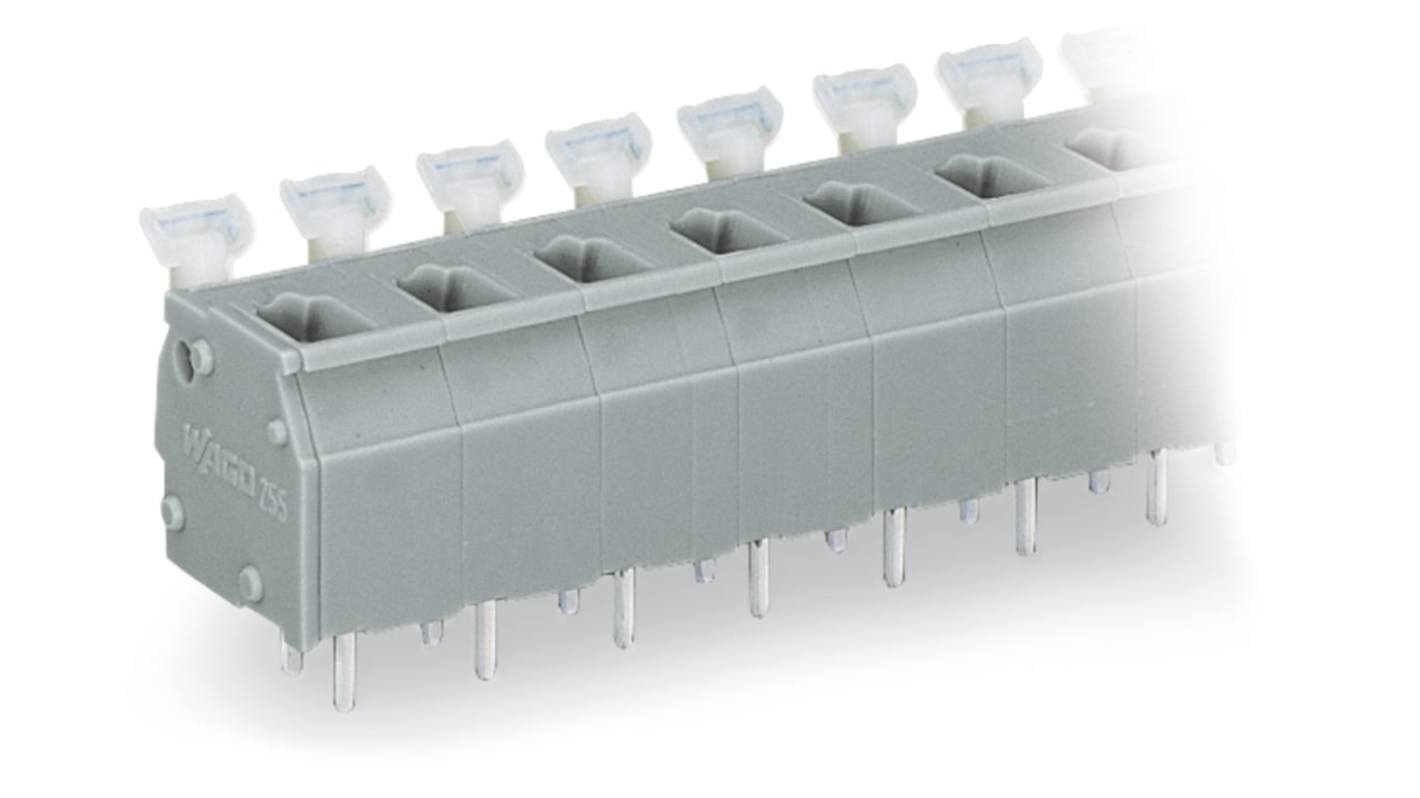

WAGO 255 Series PCB Connector, 24-Contact, 7.62 mm Pitch, 1 Row, 255-524
- RS Stock No.:
- 224-918
- Mfr. Part No.:
- 255-524
- Brand:
- WAGO
Subtotal (1 box of 5 units)*
£34.24
(exc. VAT)
£41.09
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £34.24 | £6.848 |
*price indicative
- RS Stock No.:
- 224-918
- Mfr. Part No.:
- 255-524
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 24 | |
| Product Type | PCB Connector | |
| Pitch | 7.62mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 50V | |
| Width | 182.9mm | |
| Standards/Approvals | No | |
| Depth | 18.3mm | |
| Series | 255 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 24 | ||
Product Type PCB Connector | ||
Pitch 7.62mm | ||
Number of Rows 1 | ||
Current 24A | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 50V | ||
Width 182.9mm | ||
Standards/Approvals No | ||
Depth 18.3mm | ||
Series 255 | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block featuring a push button design and CAGE CLAMP connection stands out for its versatility and user friendly operation. Ideal for field wiring, this terminal block allows for quick actuation without the need for tools, making installations and adjustments a breeze. With a refined design suitable for high density applications, it accommodates various conductor sizes while maintaining secure connections.
Robust materials ensure durability and longevity
Versatile conductor connections support solid and fine stranded options
Available in mixed colour variants for improved identification
Designed for high density applications with compact pin spacing
Ex approval variants cater to specific regulatory requirements
Solder pin arrangement enables easy PCB integration
