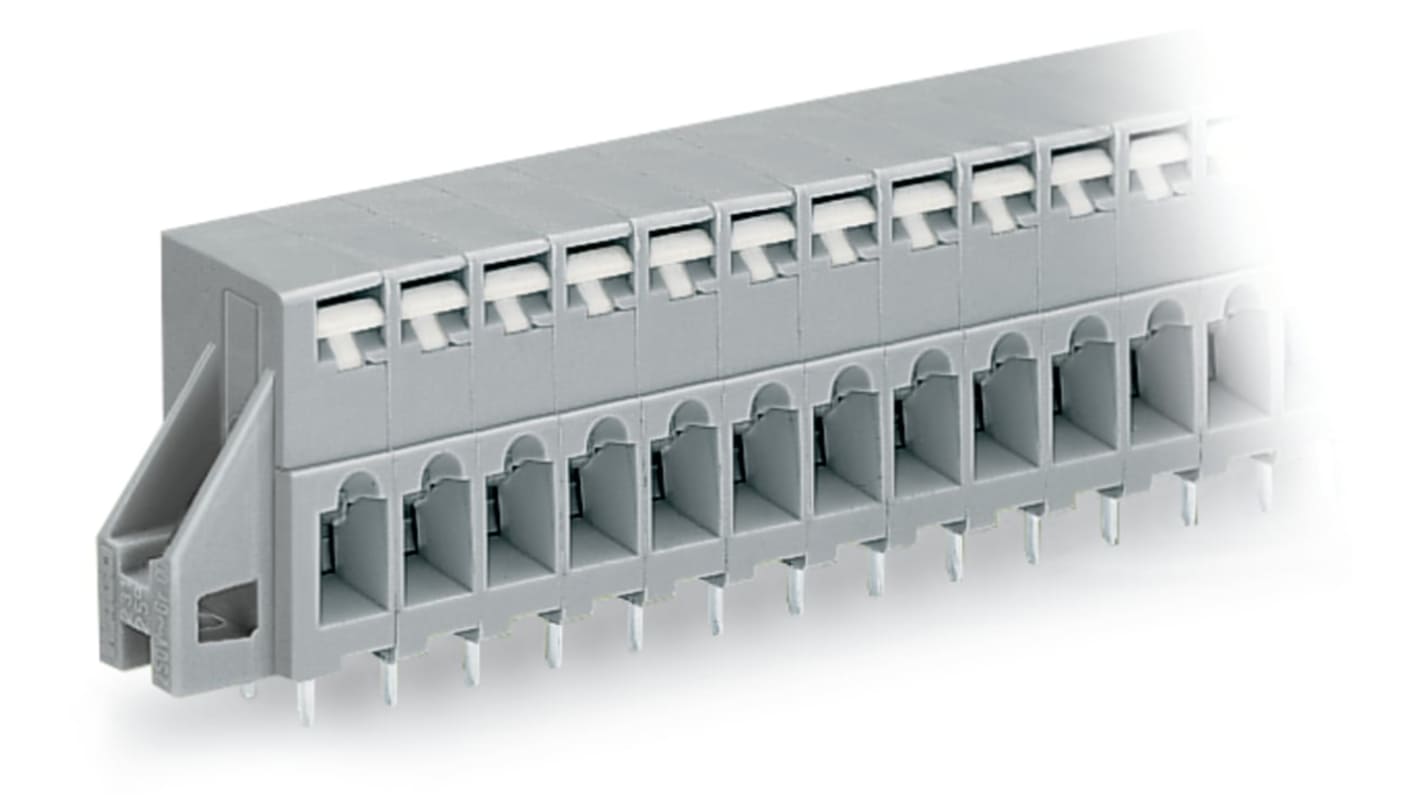

WAGO 741 Series PCB Connector, 6-Contact, 5 mm Pitch, 1 Row, 741-136
- RS Stock No.:
- 222-271
- Mfr. Part No.:
- 741-136
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£97.72
(exc. VAT)
£117.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £97.72 | £3.909 |
*price indicative
- RS Stock No.:
- 222-271
- Mfr. Part No.:
- 741-136
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 6 | |
| Pitch | 5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Grey | |
| Voltage | 25V | |
| Depth | 12.8mm | |
| Width | 39.4mm | |
| Series | 741 | |
| Standards/Approvals | IEC/EN 60664-1 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 6 | ||
Pitch 5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Grey | ||
Voltage 25V | ||
Depth 12.8mm | ||
Width 39.4mm | ||
Series 741 | ||
Standards/Approvals IEC/EN 60664-1 | ||
- COO (Country of Origin):
- CH
The Wago PCB Terminal Block offers a robust and reliable solution for your electronic connectivity needs. Designed with a push button actuation mechanism, it simplifies the wiring process while ensuring secure connections. The CAGE CLAMP technology facilitates efficient conductor entry without the need for special tools, making installation straightforward for users. With a compact design that includes 6 poles, this terminal block efficiently handles solid and fine stranded conductors, accommodating a wide range of cable types.
Compatible with a variety of conductor types to enhance versatility
Designed for easy push button actuation reducing installation time
Complies with multiple electrical standards for safe operation
Offers a compact design that saves space on printed circuit boards
Constructed with high quality materials for durability and reliability
Features an integrated test slot for convenient maintenance checks
Includes mounting flanges to provide additional mechanical stability
