WAGO 256 Series PCB Connector, 8-Contact, 5.08 mm Pitch, 1 Row, 256-408
- RS Stock No.:
- 221-598
- Distrelec Article No.:
- 304-29-971
- Mfr. Part No.:
- 256-408
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£56.06
(exc. VAT)
£67.27
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £56.06 | £2.242 |
*price indicative
- RS Stock No.:
- 221-598
- Distrelec Article No.:
- 304-29-971
- Mfr. Part No.:
- 256-408
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 8 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Depth | 17.6mm | |
| Standards/Approvals | No | |
| Width | 42.9mm | |
| Series | 256 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 8 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Depth 17.6mm | ||
Standards/Approvals No | ||
Width 42.9mm | ||
Series 256 | ||
- COO (Country of Origin):
- CH

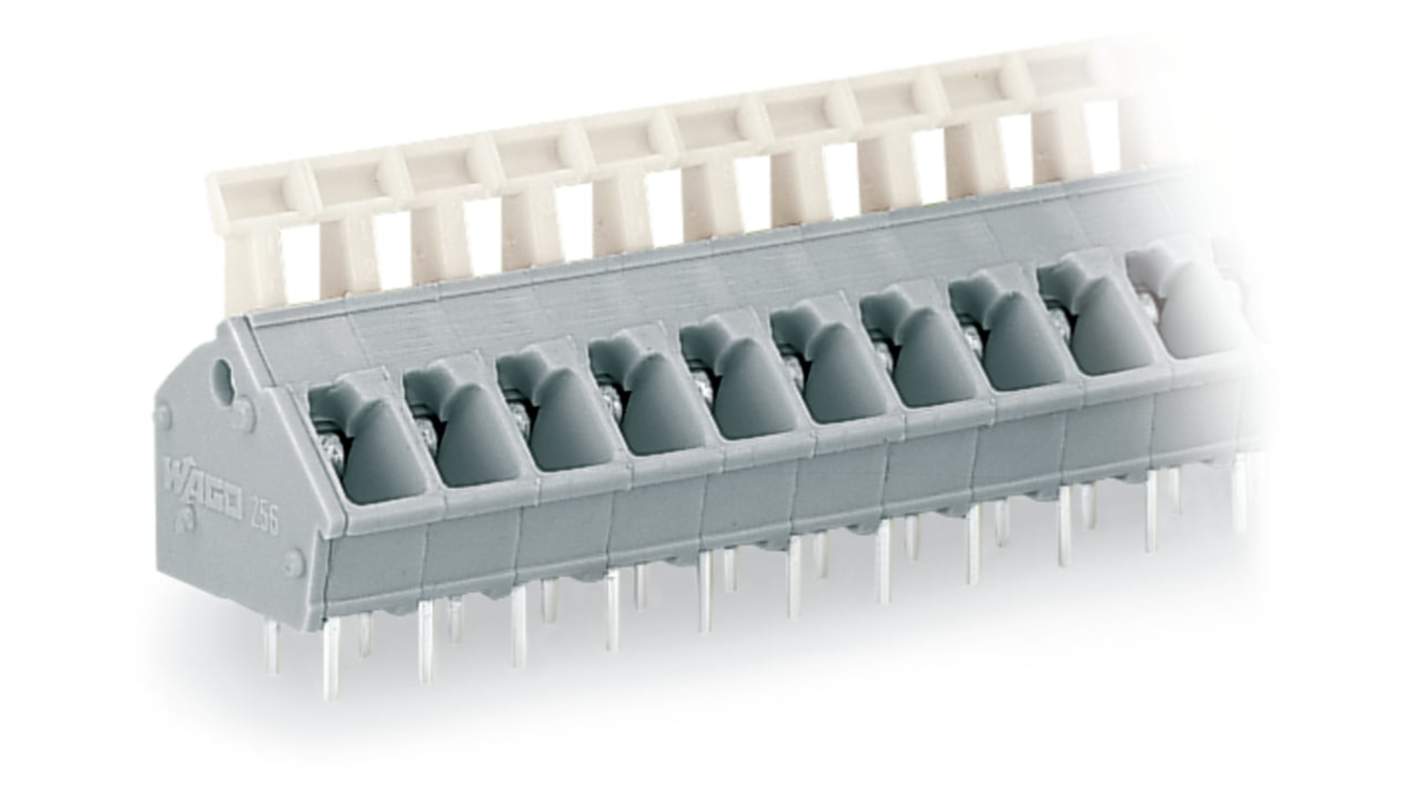

The Wago PCB Terminal Block with push button functionality exemplifies innovation and practicality in electrical connection technology. This versatile 8 pole component utilises CAGE CLAMP technology, ensuring a secure and reliable connection for fine stranded and solid conductors. Designed for ease of use, it allows straightforward, tool free operation, making it an ideal choice for field wiring scenarios. Its compact dimensions offer the perfect blend of efficient use of space and durability, while the option for metric or inch pin spacing enhances its adaptability to various applications.
Optimised for quick and secure connections in compact spaces
Versatile push button design simplifies in field conductor termination
Accommodates a range of conductor sizes ensuring broad compatibility
Engineered for easy conversion between metric and inch pin spacing
Weight efficient design aids in reducing overall assembly weight
Environmental compliance guarantees reliability in diverse conditions
Designed for easy installation reducing assembly time and effort
Solder pin arrangement promotes stable connections over time
