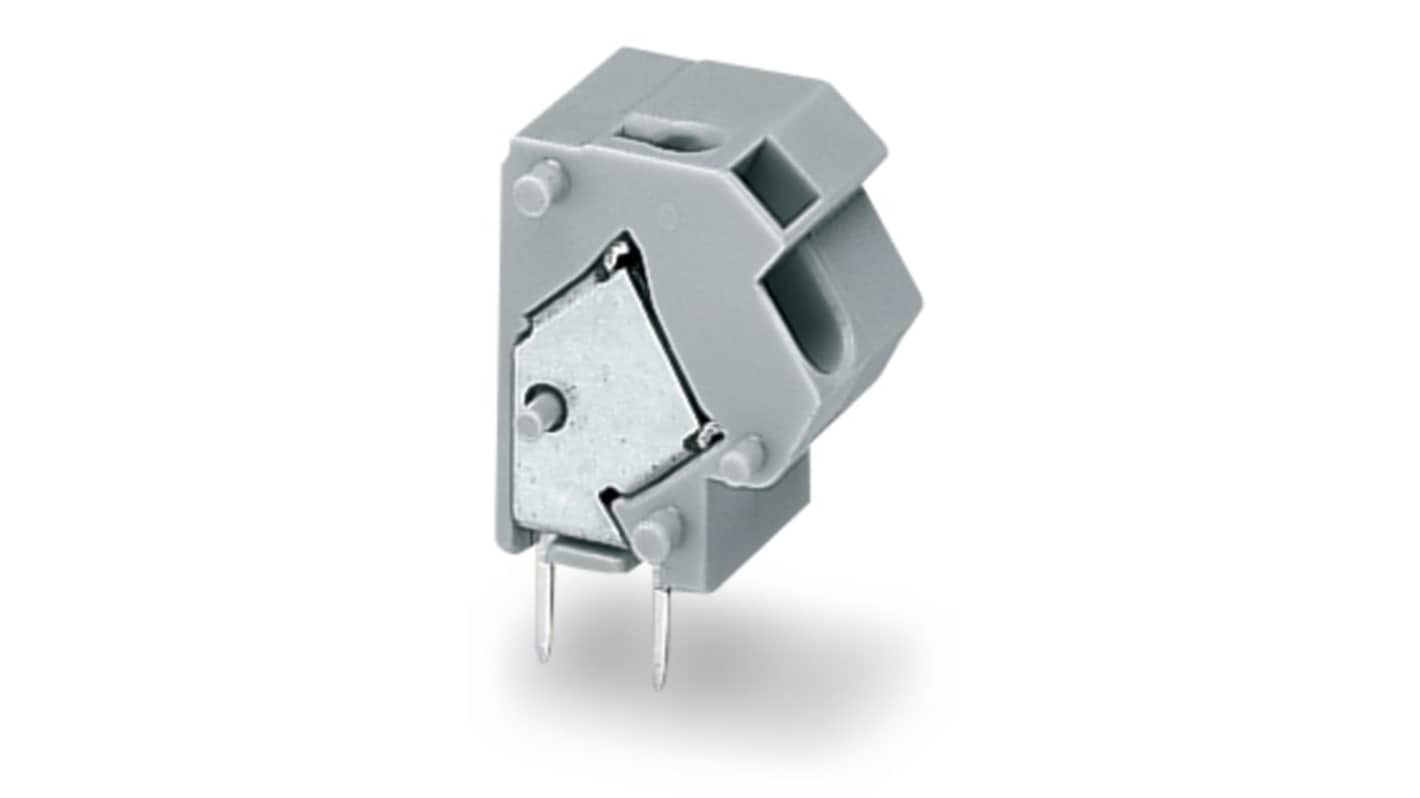

WAGO 254 Series PCB Connector, 1-Contact, 10.16 mm Pitch, Through Hole, 2 Row
- RS Stock No.:
- 220-808
- Mfr. Part No.:
- 254-864
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£28.28
(exc. VAT)
£33.94
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £28.28 | £0.283 |
*price indicative
- RS Stock No.:
- 220-808
- Mfr. Part No.:
- 254-864
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 10.16mm | |
| Number of Rows | 2 | |
| Current | 24A | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Colour | Blue | |
| Wire Connection Method | Push Wire | |
| Voltage | 63V | |
| Depth | 13.5mm | |
| Standards/Approvals | No | |
| Width | 11.7mm | |
| Series | 254 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 10.16mm | ||
Number of Rows 2 | ||
Current 24A | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Colour Blue | ||
Wire Connection Method Push Wire | ||
Voltage 63V | ||
Depth 13.5mm | ||
Standards/Approvals No | ||
Width 11.7mm | ||
Series 254 | ||
- COO (Country of Origin):
- PL
The Wago Stackable PCB Terminal Block is engineered for efficiency and reliability in compact spaces. The PUSH WIRE connection technology facilitates straightforward insertion of solid and ferruled conductors, simplifying assembly processes. Designed with a depth of just 8.9 mm, it offers maximised space savings on your circuit board while maintaining high performance.
Space efficient design allows for integration into confined PCBs
Available in various colour options to support customisation
Compliant with RoHS regulations promoting eco friendly usage
Offers a high degree of robustness in demanding environmental conditions
Supports a broad range of conductor cross sections for flexible applications
Compatible with various accessories to enhance functionality
