Wurth Elektronik
- RS Stock No.:
- 142-4117
- Mfr. Part No.:
- 9775026360R
- Brand:
- Wurth Elektronik
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 142-4117
- Mfr. Part No.:
- 9775026360R
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Material | Steel | |
| Product Type | Round Spacer | |
| Standards/Approvals | General Tolerance: DIN ISO 2768-1m, Halogen Free(IEC 61249-2-21), Halogen Fre (JEDEC JS709B), IEC 60286-3:2013, REACH (EC)1907/2006), Reflow Soldering Profile: IPC/JEDEC J-STD-020E, RoHS 2011/65/EU&2015/863, Storage Conditions DIN EN 61760-2 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Material Steel | ||
Product Type Round Spacer | ||
Standards/Approvals General Tolerance: DIN ISO 2768-1m, Halogen Free(IEC 61249-2-21), Halogen Fre (JEDEC JS709B), IEC 60286-3:2013, REACH (EC)1907/2006), Reflow Soldering Profile: IPC/JEDEC J-STD-020E, RoHS 2011/65/EU&2015/863, Storage Conditions DIN EN 61760-2 | ||

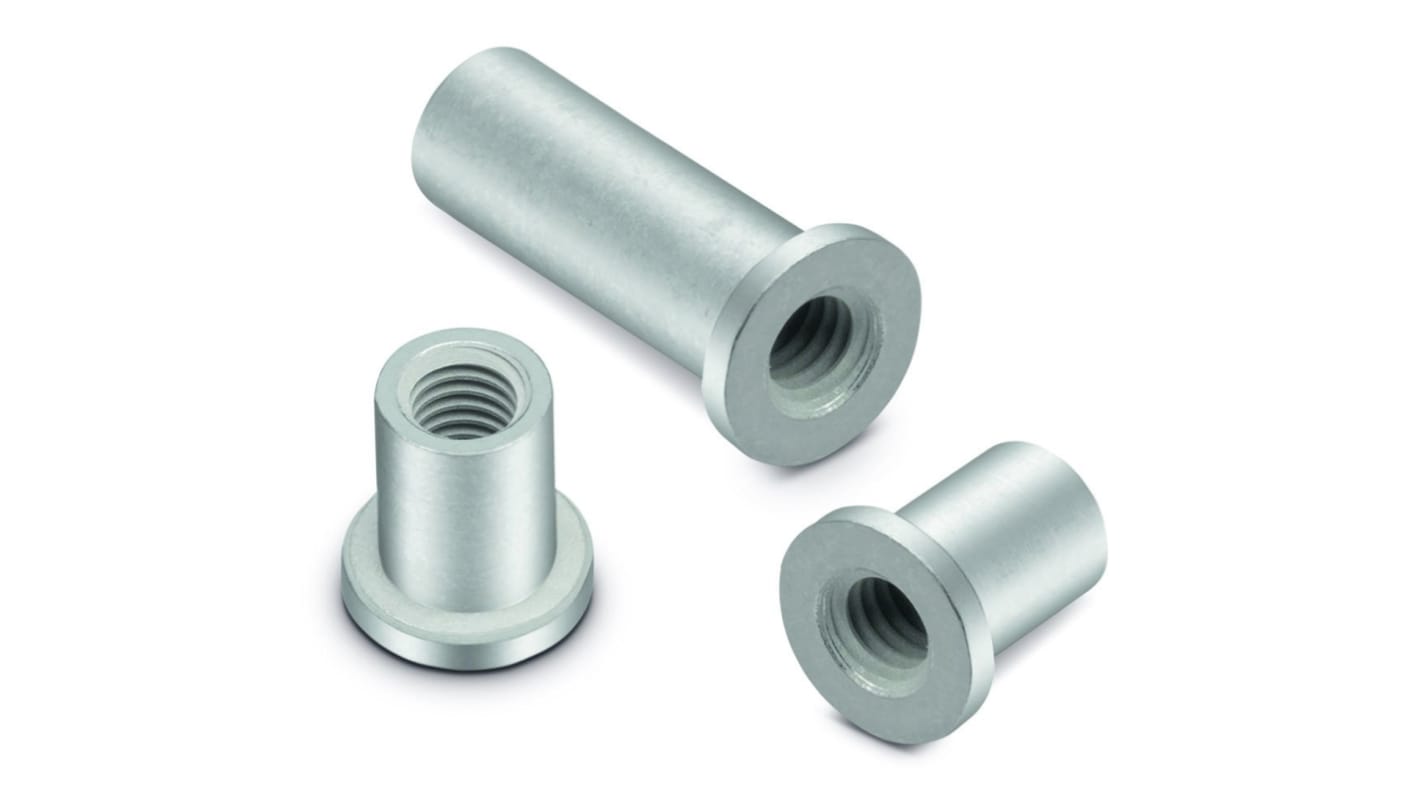

Wurth WA-SMSR Series SMT Reverse Steel Spacers, M3
WA-SMSR series PCB SMT reverse spacers made from tin plated steel with an M3 thread. These SMT spacers are soldered on the top to create spacing on the bottom of the PCB. The spacers are suitable for automated assembly and offer a high tightening torque and mechanical strength. When used on a standard PCB thickness of 1.6 mm these SMT spacers can be used to create distances from 1 mm to 10 mm
