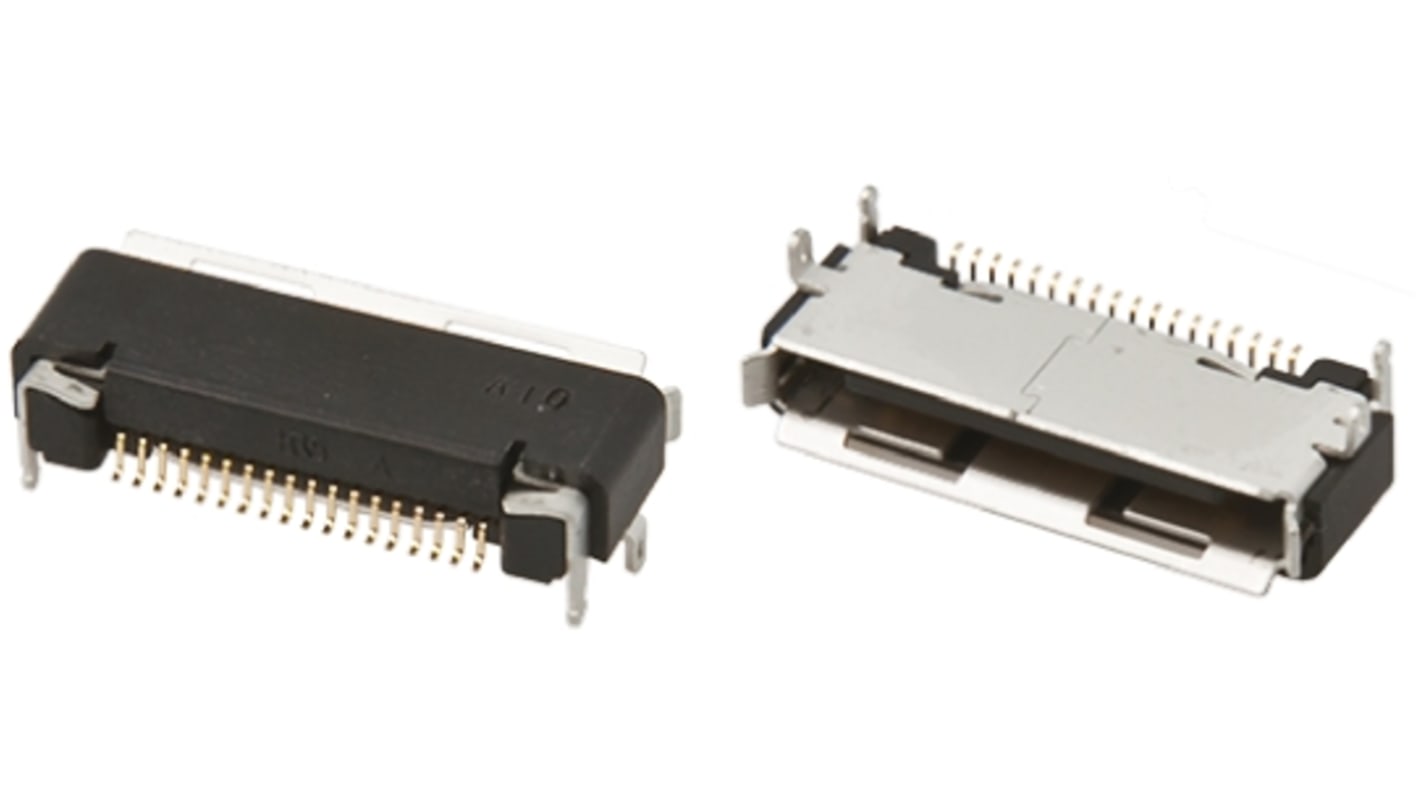

Hirose 3800 Series Right Angle Surface Mount PCB Socket, 18-Contact, 1-Row, Solder Termination
- RS Stock No.:
- 740-1019
- Mfr. Part No.:
- 3860-B-18S
- Brand:
- Hirose
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 740-1019
- Mfr. Part No.:
- 3860-B-18S
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 18 | |
| Number of Rows | 1 | |
| Type | Board to Board | |
| Mounting Type | Surface Mount | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Current Rating | 1.5A | |
| Voltage Rating | 125 V | |
| Series | 3800 | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 18 | ||
Number of Rows 1 | ||
Type Board to Board | ||
Mounting Type Surface Mount | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Current Rating 1.5A | ||
Voltage Rating 125 V | ||
Series 3800 | ||
- COO (Country of Origin):
- CN
Hirose 3800 Series High Durability Interface Connectors
Hirose 3800 series are a robust and hard wearing interface connector, with up to 20k mating cycles, ideal for board to board and cable to board interfacing, durable enough for many applications that require tougher than average performance from a small form connector.
20,000 times mechanical operation with unique contact structure
18 ways per connector
Robust structure with 0.35 mm thick metal shell covering the housing
Small size and light weight
Clear tactile click when mating
18 ways per connector
Robust structure with 0.35 mm thick metal shell covering the housing
Small size and light weight
Clear tactile click when mating
Note
For cable connector, cable jacket 6mm max. diameter AWG 28.
Hirose 3800 Series Interface Connectors
