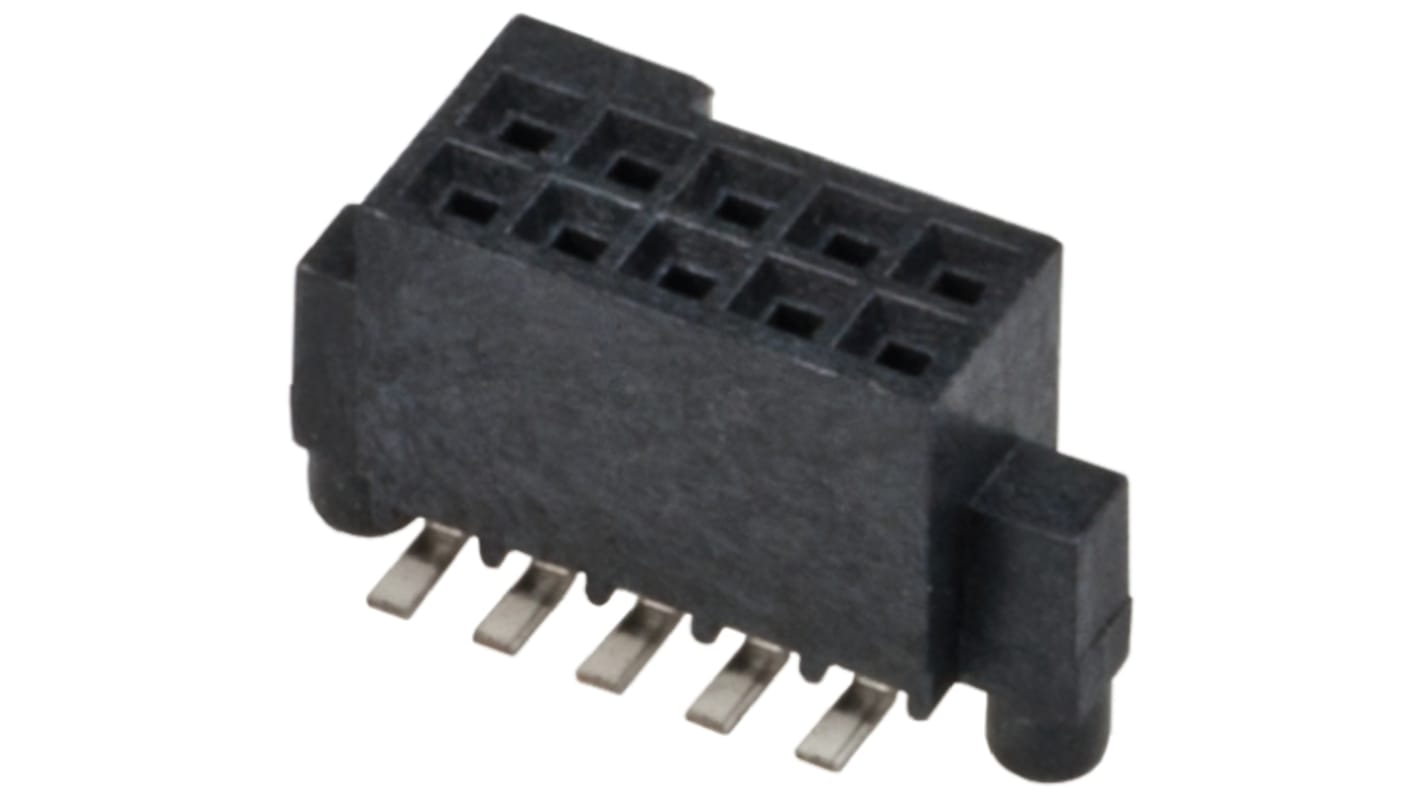

Amphenol Communications Solutions Rib-Cage Series Straight Surface Mount PCB Socket, 10-Contact, 2-Row, 1.27mm Pitch,
- RS Stock No.:
- 714-2454
- Mfr. Part No.:
- 87024-605LF
- Brand:
- Amphenol ICC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 714-2454
- Mfr. Part No.:
- 87024-605LF
- Brand:
- Amphenol ICC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol ICC | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Type | Board to Board | |
| Mounting Type | Surface Mount | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Current Rating | 12A | |
| Voltage Rating | 800 V | |
| Series | Rib-Cage | |
| Contact Material | Bronze | |
Select all | ||
|---|---|---|
Brand Amphenol ICC | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Type Board to Board | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Current Rating 12A | ||
Voltage Rating 800 V | ||
Series Rib-Cage | ||
Contact Material Bronze | ||
- COO (Country of Origin):
- CN
RIB-CAGE PCB Receptacles
These Board to Board FCI Rib-Cage™ multi-point SMT receptacles are polarized and have PCB locators and 0.76 μm gold plated contacts providing reliability in high vibration and shock-prone applications.
Above board height is 4.75 mm, mating heights vary with pin header used.
Note
For mating Pin Headers see stock number 714-2485 typical.
1.27mm Board to Board - FCI RIB-CAGE System
The FCI Rib-Cage System is a 1.27mm (0.050 in.) pitch dual row Board-to-Board connector system designed for extreme applications using mezzanine connections between printed circuit boards (PCB) or flexible printed circuits (FPC).
