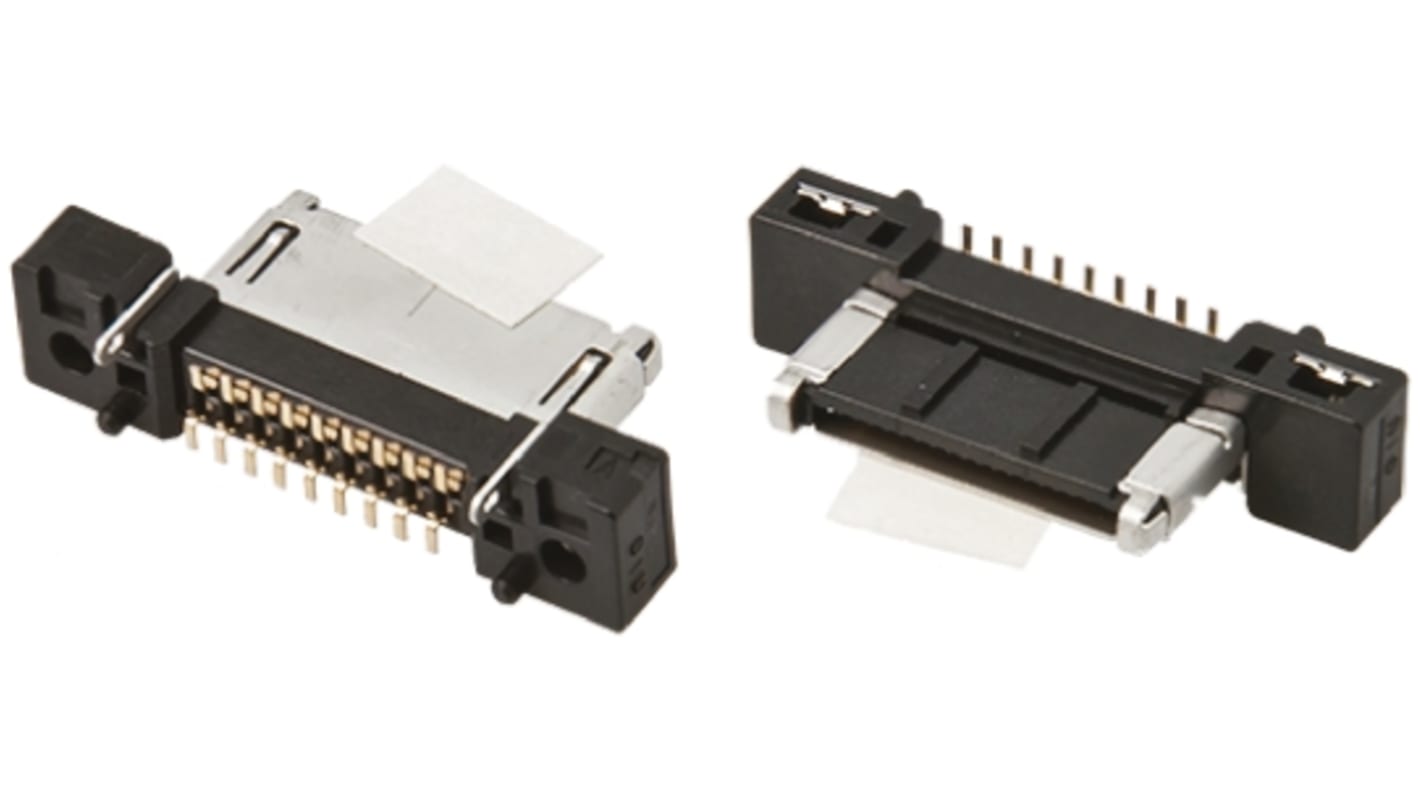

Hirose 3800 Series Straight Surface Mount PCB Header, 18 Contact(s), 0.8mm Pitch, Shrouded
- RS Stock No.:
- 741-8180P
- Mfr. Part No.:
- 3880-B-18P
- Brand:
- Hirose
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 741-8180P
- Mfr. Part No.:
- 3880-B-18P
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Series | 3800 | |
| Pitch | 0.8mm | |
| Number of Contacts | 18 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Current Rating | 1.5A | |
| Voltage Rating | 125.0 V | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Series 3800 | ||
Pitch 0.8mm | ||
Number of Contacts 18 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Current Rating 1.5A | ||
Voltage Rating 125.0 V | ||
- COO (Country of Origin):
- CN
Hirose 3800 Series High Durability Interface Connectors
Hirose 3800 series are a robust and hard wearing interface connector, with up to 20k mating cycles, ideal for board to board and cable to board interfacing, durable enough for many applications that require tougher than average performance from a small form connector.
20,000 times mechanical operation with unique contact structure
18 ways per connector
Robust structure with 0.35 mm thick metal shell covering the housing
Small size and light weight
Clear tactile click when mating
18 ways per connector
Robust structure with 0.35 mm thick metal shell covering the housing
Small size and light weight
Clear tactile click when mating
Note
For cable connector, cable jacket 6mm max. diameter AWG 28.
Hirose 3800 Series Interface Connectors
