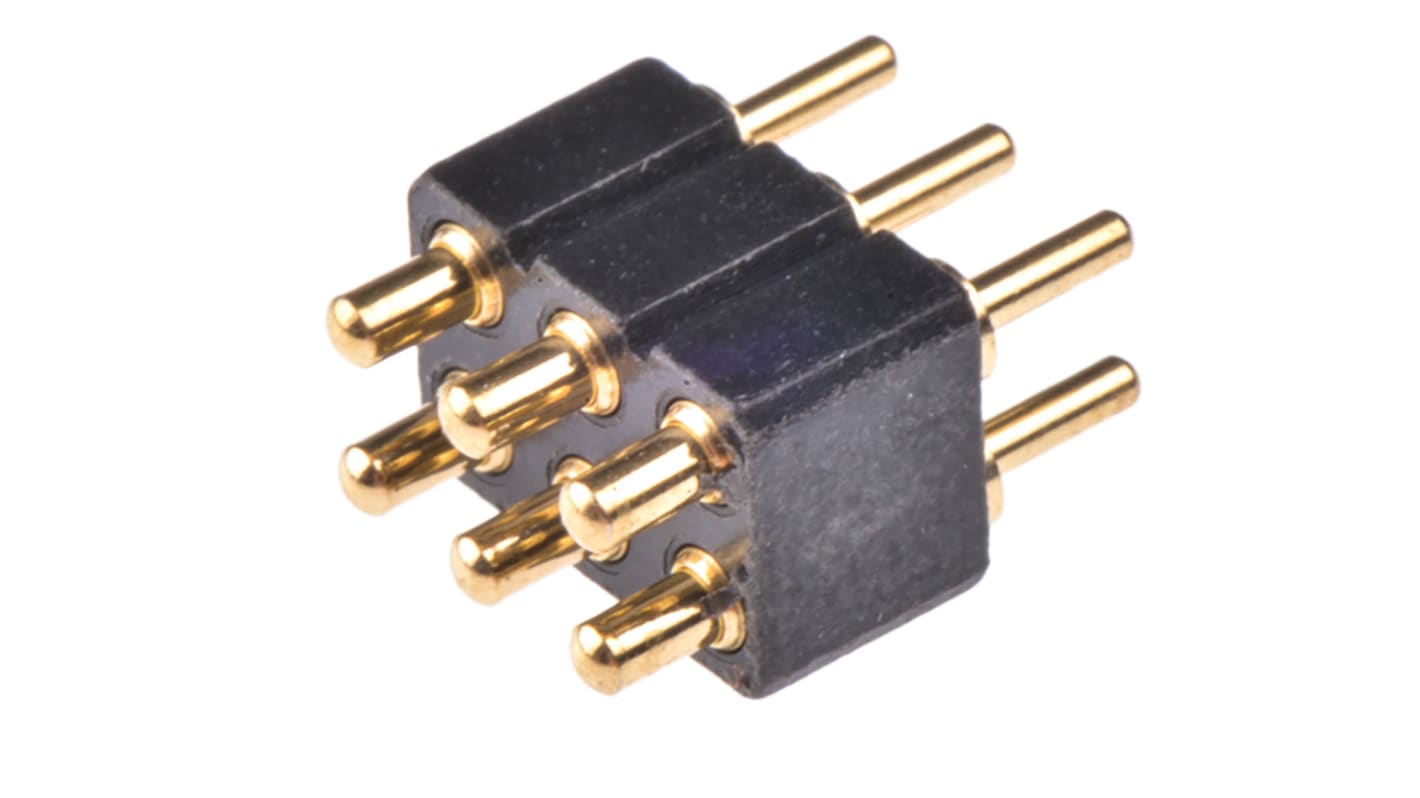

Preci-Dip Straight Through Hole Spring Loaded Connector, 6 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 702-0382P
- Mfr. Part No.:
- 813-S1-006-10-015101
- Brand:
- Preci-Dip
47 In stock - FREE next working day delivery available
Added
Price Each (Supplied in a Box)
£3.53
(exc. VAT)
£4.24
(inc. VAT)
| Units | Per unit |
| 10 - 24 | £3.53 |
| 25 - 49 | £3.29 |
| 50 - 99 | £3.14 |
| 100 + | £3.01 |
- RS Stock No.:
- 702-0382P
- Mfr. Part No.:
- 813-S1-006-10-015101
- Brand:
- Preci-Dip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
2.54 mm DIL Spring-Loaded Contacts,Through Hole
These Preci-dip DIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.
The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
Note
For counterpart SMT DIL Pad Connectors see stock number 702-0420 typical
Standards
UL 94V-0
Preci-dip Spring-Loaded Connectors
A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.
Specifications
Attribute | Value |
|---|---|
| Pitch | 2.54mm |
| Number of Contacts | 6 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Brass |
| Current Rating | 3.5A |
| Voltage Rating | 100.0 V , 150.0 V dc |
| Gender | Male |
