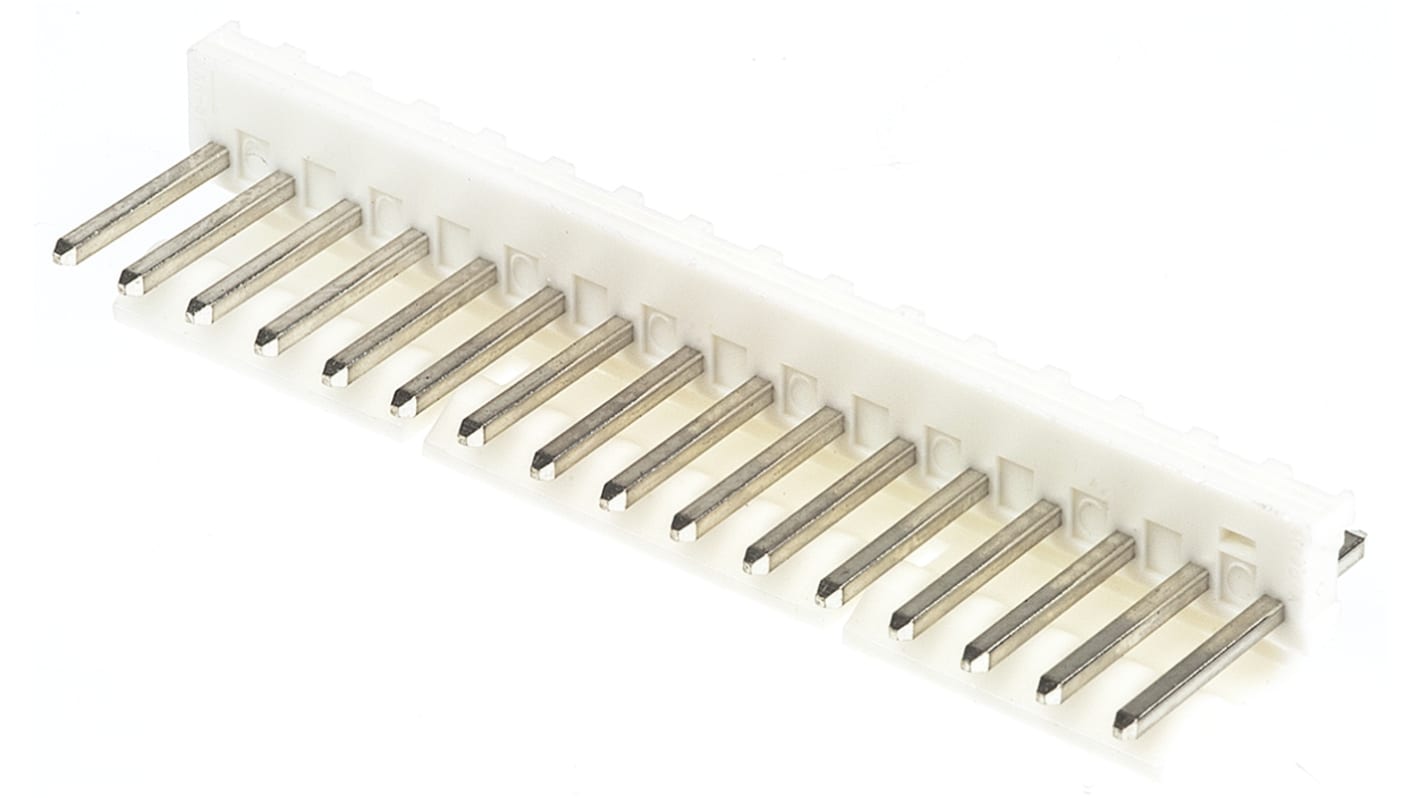

Molex KK 396 Series Straight Through Hole Pin Header, 16 Contact(s), 3.96mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 679-5723
- Mfr. Part No.:
- 26-60-4160
- Brand:
- Molex
10 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.655
(exc. VAT)
£0.786
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.655 | £6.55 |
| *price indicative | ||
- RS Stock No.:
- 679-5723
- Mfr. Part No.:
- 26-60-4160
- Brand:
- Molex
Technical Reference
Legislation and Compliance
Product Details
Vertical headers, 41791 Series
Mates with 2139; 3069; 6442 and 41695 Series housings and 2145 and 41815 Series PC Board connectors.
Note
Stock number 670-3118 is a 3 way with circuit 2 voided.
3.96mm Molex KK Range
Specifications
Attribute | Value |
|---|---|
| Series | KK 396 |
| Pitch | 3.96mm |
| Number of Contacts | 16 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 7.0A |
| Series Number | 41791 |
| Voltage Rating | 250.0 V |
