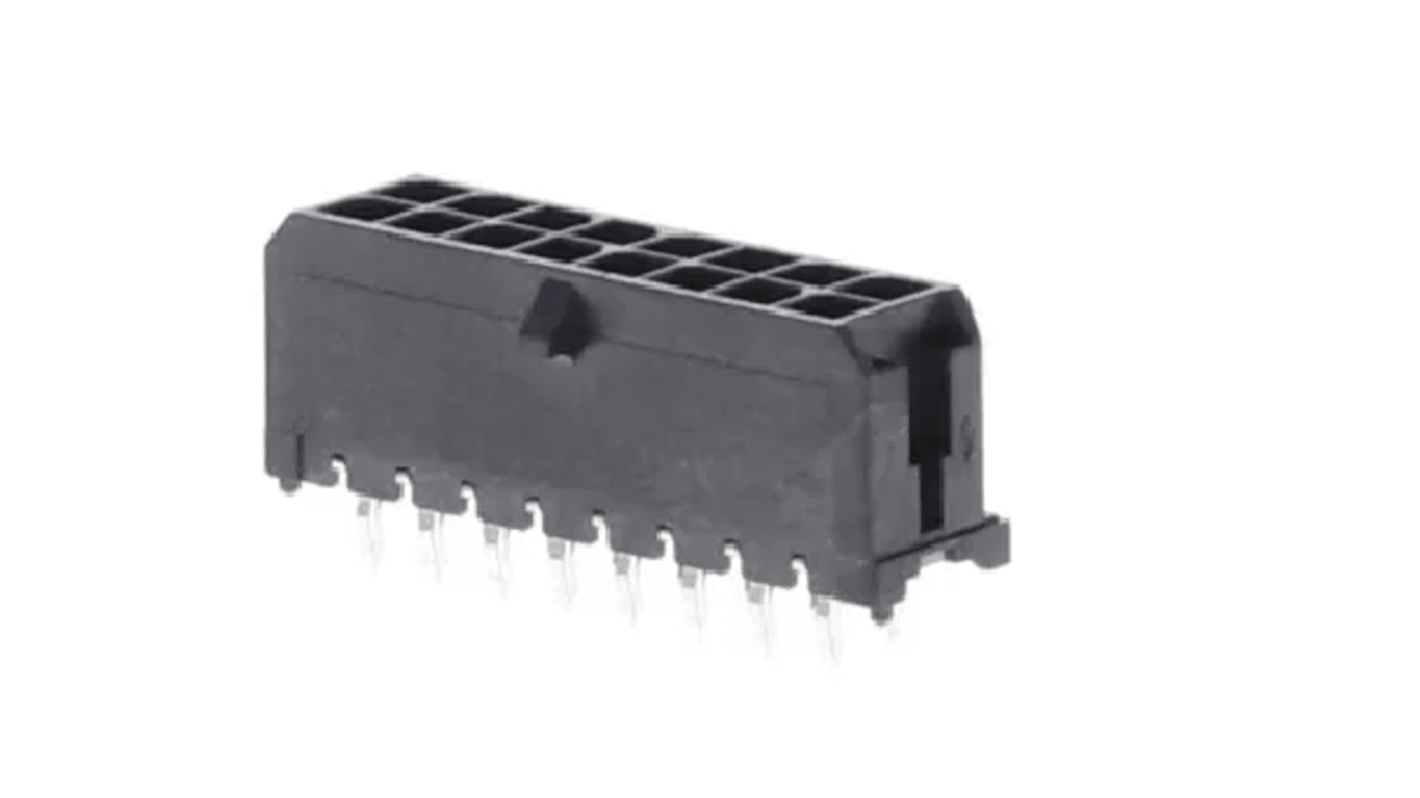

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 16 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 box of 792 units)*

£1,717.056

(exc. VAT)

£2,060.784

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 792 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
792 - 3168£2.168£1,717.06
3960 - 7128£1.845£1,461.24
7920 - 11088£1.769£1,401.05
11880 - 15048£1.70£1,346.40
15840 +£1.631£1,291.75

*price indicative

RS Stock No.:
188-8779
Mfr. Part No.:
43045-1612
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

PCB Header

Series

Micro-Fit 3.0

Current

8.5A

Pitch

3mm

Housing Material

High Temperature Thermoplastic

Number of Contacts

16

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Brass

Contact Plating

Tin

Row Pitch

3mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

105°C

Mating Pin Length

3mm

Standards/Approvals

No

Voltage

600 V

Molex Micro-Fit 3.0 Series PCB Header, 8.5A Current Rating, 3mm Pitch - 43045-1612


This PCB header is a crucial component within the Micro-Fit 3.0 circuit connection system, tailored for high-performance applications across various electronic and electrical sectors. It ensures dependable wire-to-board connections, playing a key role in effective power management in automation and mechanical industries.

Features & Benefits


• Fully shrouded and polarised for enhanced safety during operation

• Compatible with 3.0mm pitch headers for versatile integration

• Constructed from durable materials for longevity and consistent performance

Applications


• Suitable for automation equipment needing robust wire-to-board connections

• Applicable in electrical projects requiring high current capacity

• Ideal for connecting various PCB designs in mechanical systems

What is the recommended PCB thickness for optimal performance?


The optimal PCB thickness for this connection is 1.60mm to ensure proper fitting and reliability.

How durable is it against industrial usage?


It can withstand up to 30 mating cycles, suitable for frequent connections and disconnections in industrial applications.

What temperature range can it operate within?


It operates effectively across a temperature range of -40° to +105°C, ensuring functionality in diverse environments.
