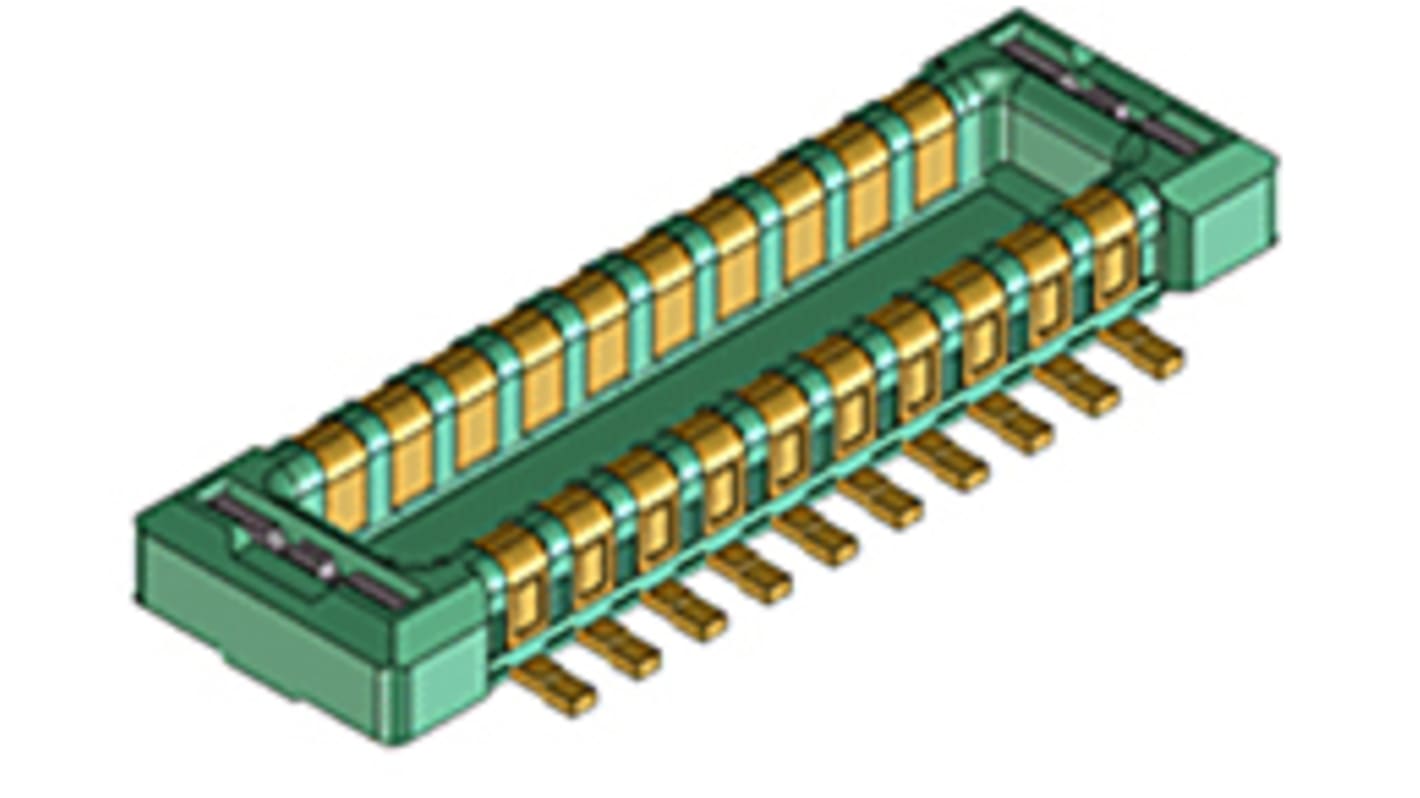

Molex SlimStack Series Straight Surface Mount PCB Header, 10 Contact(s), 0.4mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 178-9834
- Mfr. Part No.:
- 503776-1010
- Brand:
- Molex
151 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.363
(exc. VAT)
£0.436
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.363 | £1,089.00 |
*price indicative
- RS Stock No.:
- 178-9834
- Mfr. Part No.:
- 503776-1010
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
0.40mm Pitch SlimStack B8 Board-to-Board Plug, Surface Mount, Dual Row, Vertical, 0.80mm Stacking Height, 10 Circuits
Specifications
Attribute | Value |
|---|---|
| Series | SlimStack |
| Pitch | 0.4mm |
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 300.0mA |
| Series Number | 503776 |
| Voltage Rating | 50.0 V |
