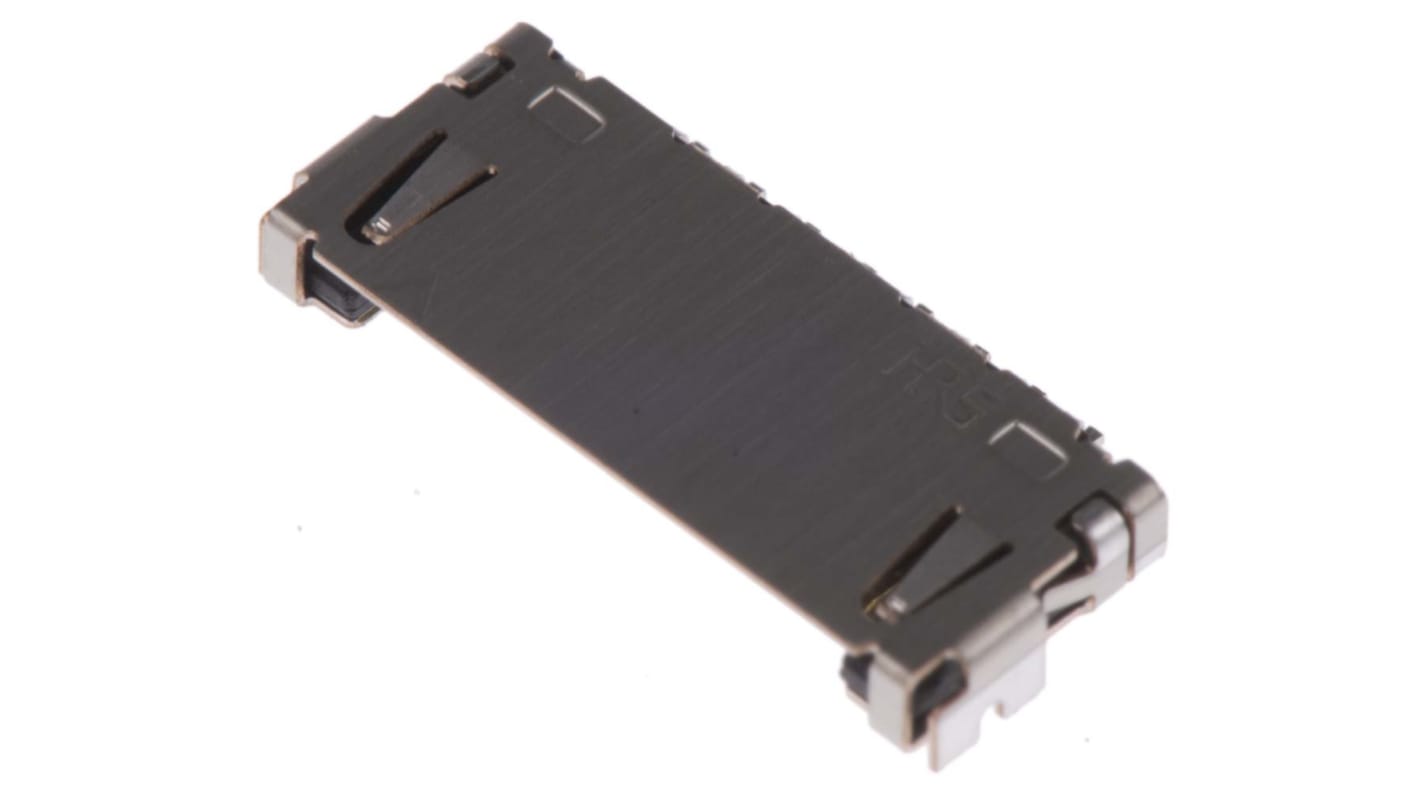

Hirose DF19 Series Right Angle Surface Mount PCB Header, 8 Contact(s), 1.0mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 122-1672
- Mfr. Part No.:
- DF19G-8P-1H(54)
- Brand:
- Hirose
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 1000)
£0.612
(exc. VAT)
£0.734
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 - 1000 | £0.612 | £612.00 |
| 2000 + | £0.581 | £581.00 |
| *price indicative | ||
- RS Stock No.:
- 122-1672
- Mfr. Part No.:
- DF19G-8P-1H(54)
- Brand:
- Hirose
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Right angle receptacle, top-board
1 mm Contact Pitch Cable Connectors
Top-board mounting
Small configuration and board space
Common use of receptacle
Uniform external dimensions
Ground connection
Glow wire compliance (Compliant with IEC60695-2-11)
Common use of receptacle
Uniform external dimensions
Ground connection
Glow wire compliance (Compliant with IEC60695-2-11)
1.0 mm Wire to Board - Hirose DF19
Specifications
Attribute | Value |
|---|---|
| Series | DF19 |
| Pitch | 1.0mm |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Current Rating | 1.0A |
| Voltage Rating | 100.0 V |
