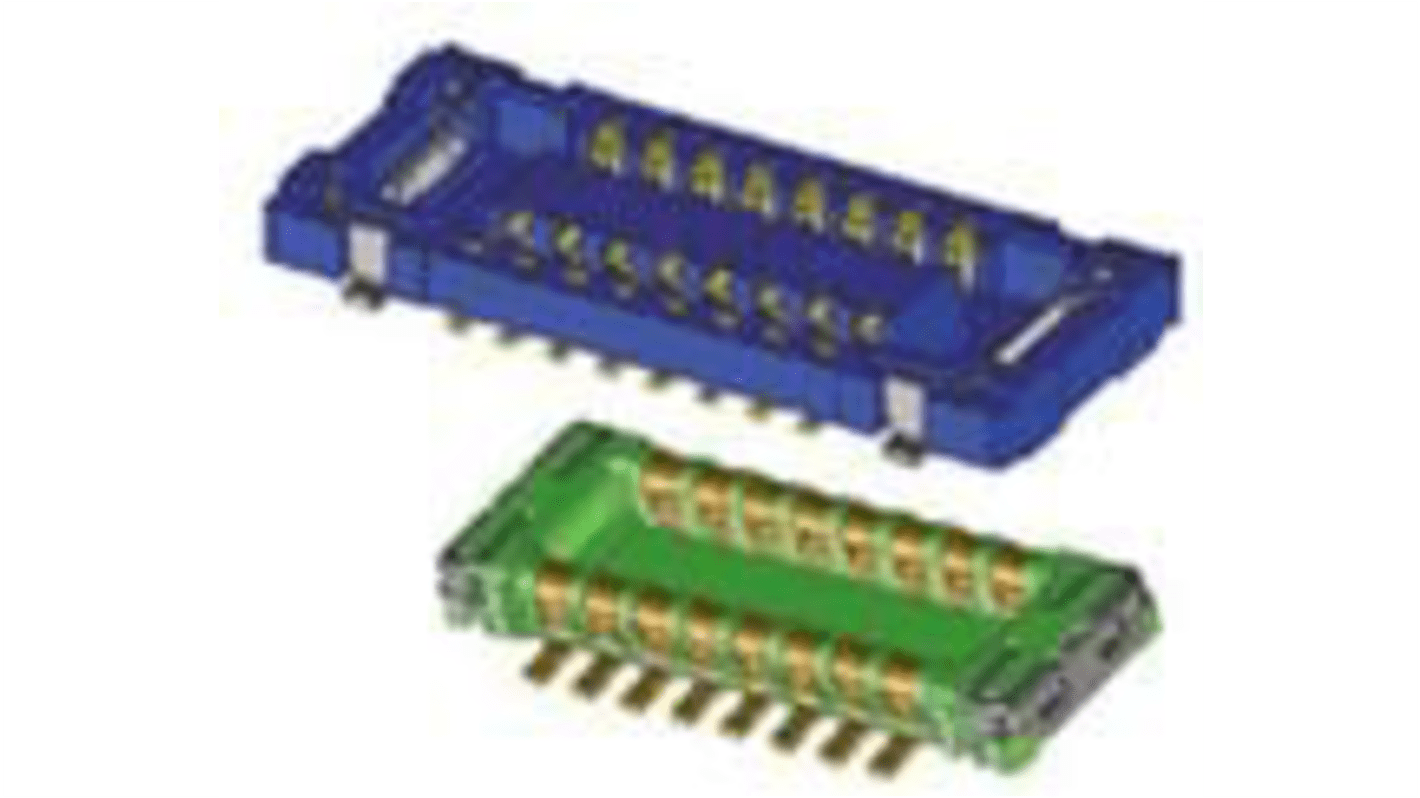

Molex 503548 Series Vertical Surface Mount PCB Header, 10 Contact(s), 0.4mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 reel of 3000 units)*

£862.24

(exc. VAT)

£1,034.69

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£862.24£0.287

*price indicative

RS Stock No.:
520-767
Mfr. Part No.:
503548-1020
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

503548

Pitch

0.4mm

Number of Contacts

10

Number of Rows

2

Body Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mounting Type

Surface Mount

COO (Country of Origin):
JP
The TE Connectivity 0.40mm SlimStack Board-to-Board Receptacle is a cutting-edge solution designed for high-density applications. This innovative connector provides reliable performance with a compact footprint, making it ideal for modern electronics where space is at a premium. Its dual-row design allows for efficient mating while maintaining a low stacking height, making it an optimal choice for applications requiring precision and durability. Built with a robust copper alloy and finished with high-quality gold plating, this connector ensures maximum conductivity and long-lasting reliability in demanding environments. Whether used in consumer electronics or industrial applications, this board-to-board connector delivers exceptional performance and compliance with industry standards.

Slim and space-saving design enhances overall product efficiency
Vertical orientation ensures ease of integration in tight spaces
Halogen-free materials contribute to environmental compliance
Durable construction allows for up to 30 mating cycles
Surface mount termination style simplifies PCB assembly
Sleek black resin enhances aesthetic appeal while ensuring functionality
Low halogen content promotes greener solutions in electronics
