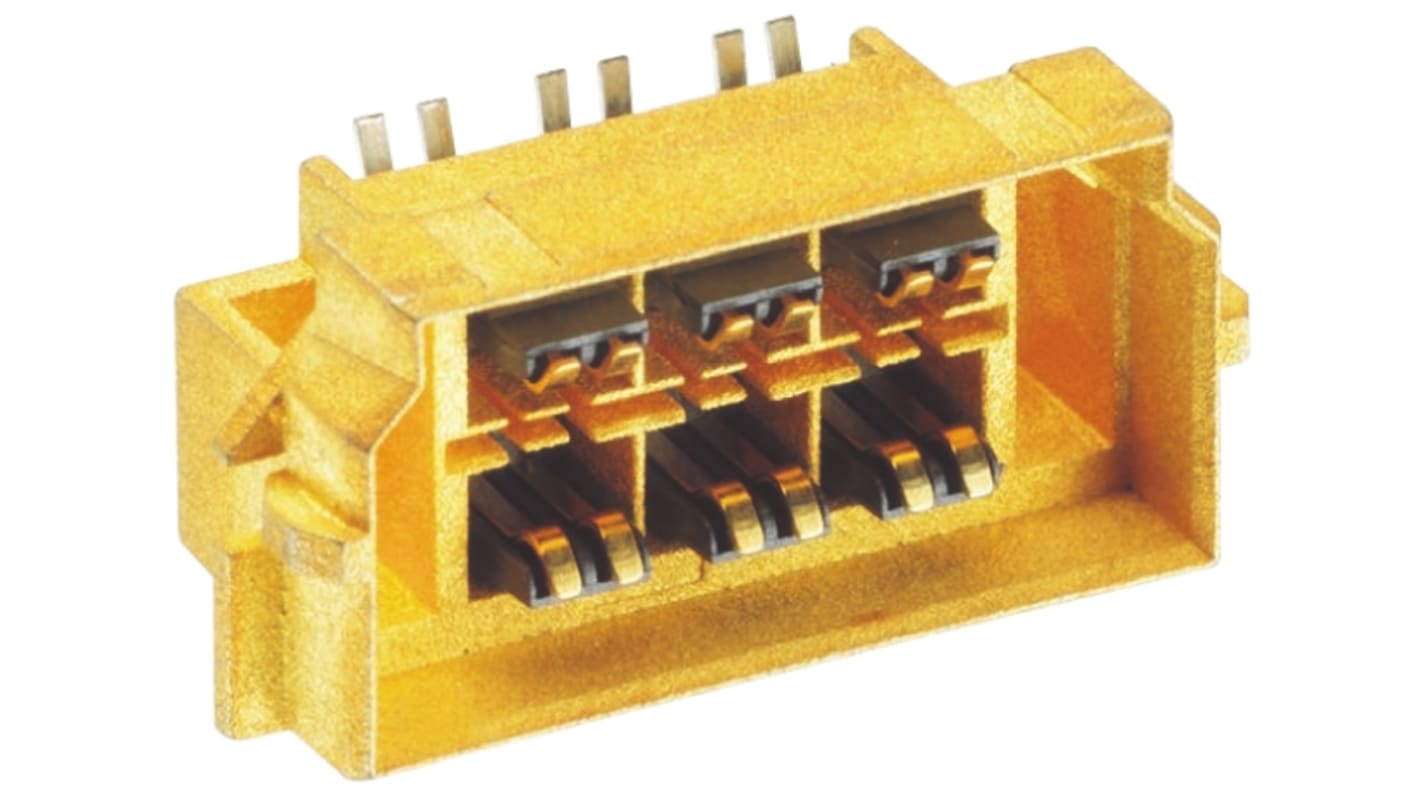

Molex Plateau HS Mezz Series Straight Surface Mount PCB Header, 45 Contact(s), 1.2mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 244-005
- Mfr. Part No.:
- 75003-0105
- Brand:
- Molex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 244-005
- Mfr. Part No.:
- 75003-0105
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | Plateau HS Mezz | |
| Pitch | 1.2mm | |
| Number of Contacts | 45 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Board to Board | |
| Termination Method | Solder | |
| Contact Material | Brass | |
| Series Number | 75003 | |
| Current Rating | 1.5A | |
| Voltage Rating | 30.0 V | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series Plateau HS Mezz | ||
Pitch 1.2mm | ||
Number of Contacts 45 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Board to Board | ||
Termination Method Solder | ||
Contact Material Brass | ||
Series Number 75003 | ||
Current Rating 1.5A | ||
Voltage Rating 30.0 V | ||
- COO (Country of Origin):
- US
Plateau HS Mezzanine Plugs
Fully shrouded
100 mating cycles
Current rating of 1.5 A max. per circuit
100 mating cycles
Current rating of 1.5 A max. per circuit
Approvals
UL 29179, CSA LR19980
Approvals
UL 29179, CSA LR19980
1.20mm Plateau HS Mezz™
Pleateau HS Mezz™ high speed mezzanine plugs and receptacles feature innovative gold-plated plastic Plateau Technology™ for outstanding performance and enabling differential data rates in excess of 10 Gigabits per second.,The shielding properties of the plated housing effectively isolate each differential pair, reducing the total number of terminals needed for grounding.,Ideal for servers, mainframe computers, workstations, test equipment, telecommunications equipment, medical equipment and instrumentation.
Differential data rates in excess of 10 Gigabits per second
Plated plastic housing reduces need for higher pin counts
SMT contacts on 1.20mm pitch spacing with pairs on 3.50mm pitch
Two points of contact on each signal interface for high reliability
Stack heights from 9mm to 25mm
Reflow capable max temp 260°C
Housing Material: LCP
Plated plastic housing reduces need for higher pin counts
SMT contacts on 1.20mm pitch spacing with pairs on 3.50mm pitch
Two points of contact on each signal interface for high reliability
Stack heights from 9mm to 25mm
Reflow capable max temp 260°C
Housing Material: LCP
