Seasonic 300W PC Power Supply, 100 → 264V ac Input, 3.3 V dc, 5 V dc, 12 V dc Output
- RS Stock No.:
- 880-6881
- Mfr. Part No.:
- 1SG30GFSA0A10W
- Brand:
- Seasonic
19 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Price Each
£61.01
(exc. VAT)
£73.21
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £61.01 |
| 5 - 9 | £59.18 |
| 10 - 24 | £57.35 |
| 25 - 49 | £55.52 |
| 50 + | £53.97 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 880-6881
- Mfr. Part No.:
- 1SG30GFSA0A10W
- Brand:
- Seasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

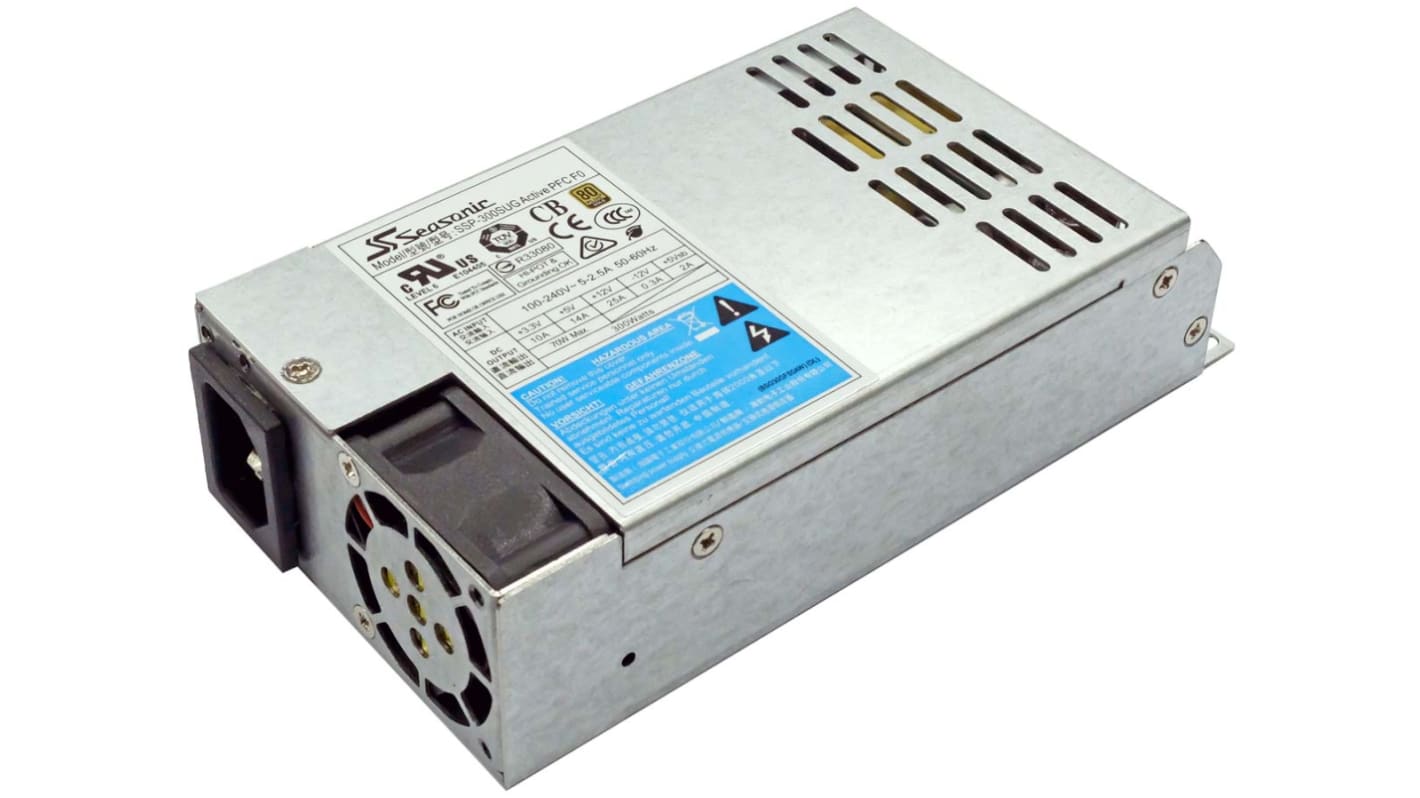

Seasonic 300W Switch Mode Power Supply 80+ EA-300 Series
The Sea Sonic EA-300 is a small 300W computer power supply. The EA-300 features a DC-DC converter design and carries the 80 plus bronze certificate, which provides high power efficiency of at least 87% at normal input voltage. The Sea Sonic EA-300 is cooled by a slim, low noise fan and features active PFC circuit.
80 PLUS GOLD Certificate
Serial ATA ready
DC to DC converter design
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection & Over power protection
100% hi-pot test
100% burn in, high temperature cycled on/off
Serial ATA ready
DC to DC converter design
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection & Over power protection
100% hi-pot test
100% burn in, high temperature cycled on/off
Approvals
CUL, TUV, CB, BSMI, CE, FCC, RCM
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 100 → 264V ac |
| Output Voltage | 3.3 V dc, 5 V dc, 12 V dc |
| Power Rating | 300W |
| Output Current | 10 A, 14 A, 25 A |
| Length | 81.5mm |
| Width | 150mm |
| Depth | 40.5mm |
| Mounting Type | Surface Mount |
| Efficiency | ≥87% |
| Load Regulation | ±5% |
| Line Regulation | ±1% |
| Better World Verification | 80 Plus Gold |
| Better World Product | Yes |
| Standards Met | 80 PLUS GOLD Certificate, BSMI, CB, CE, CUL, ErP, FCC, ISO 14001, ISO 9001, RCM, TUV |
| Power Signal Conversion Type | DC-DC |
| Series | EA-300 |
| Input Frequency Range | 50/60Hz |
