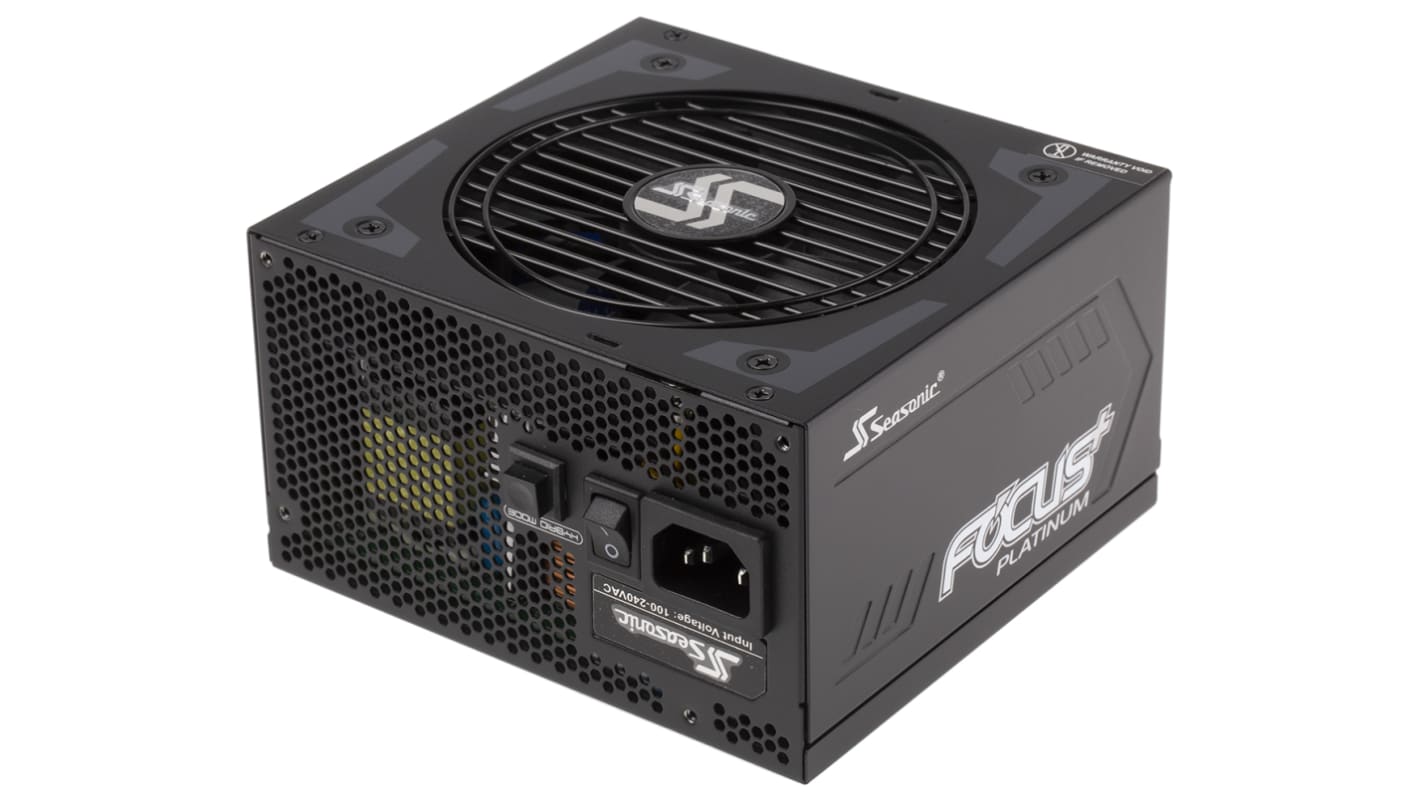

Seasonic 850W ATX Power Supply, 100 → 240V ac Input, -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc Output
- RS Stock No.:
- 181-2091
- Mfr. Part No.:
- SSR-850PX
- Brand:
- Seasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-2091
- Mfr. Part No.:
- SSR-850PX
- Brand:
- Seasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Seasonic | |
| Input Voltage | 100 → 240V ac | |
| Output Voltage | -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc | |
| Power Rating | 850W | |
| Output Current | 3 A, 20 A, 70 A, 300 mA | |
| Number of Outputs | 5 | |
| Length | 140mm | |
| Width | 150mm | |
| Depth | 86mm | |
| Mounting Type | Panel Mount | |
| Efficiency | 92% | |
| Minimum Temperature | 0°C | |
| Input Frequency Range | 50 → 60Hz | |
| Series | ATX | |
| Maximum Temperature | +50°C | |
| Power Signal Conversion Type | AC-DC | |
| Maximum Input Current | 11A | |
Select all | ||
|---|---|---|
Brand Seasonic | ||
Input Voltage 100 → 240V ac | ||
Output Voltage -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc | ||
Power Rating 850W | ||
Output Current 3 A, 20 A, 70 A, 300 mA | ||
Number of Outputs 5 | ||
Length 140mm | ||
Width 150mm | ||
Depth 86mm | ||
Mounting Type Panel Mount | ||
Efficiency 92% | ||
Minimum Temperature 0°C | ||
Input Frequency Range 50 → 60Hz | ||
Series ATX | ||
Maximum Temperature +50°C | ||
Power Signal Conversion Type AC-DC | ||
Maximum Input Current 11A | ||
- COO (Country of Origin):
- CN
Thanks to its small form factor the Focus+ Platinum 850 watt power supply is a mighty solution for those, who want to implement a smaller HTPC system or living room computer. This high quality unit is built with top-rated highly reliable aluminium electrolytic solid capacitors and it features Seasonic’s new cable-free connection design where the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This premium design feature is a breakthrough solution that lowers the chance of production errors and improves output power quality.
Reduced noise without increase in temperature,
Extended fan life due to the reduced number of fan rotations,
Optimized heat dissipation at all times,
Unsurpassed silent performance in Fanless Mode.
Extended fan life due to the reduced number of fan rotations,
Optimized heat dissipation at all times,
Unsurpassed silent performance in Fanless Mode.
