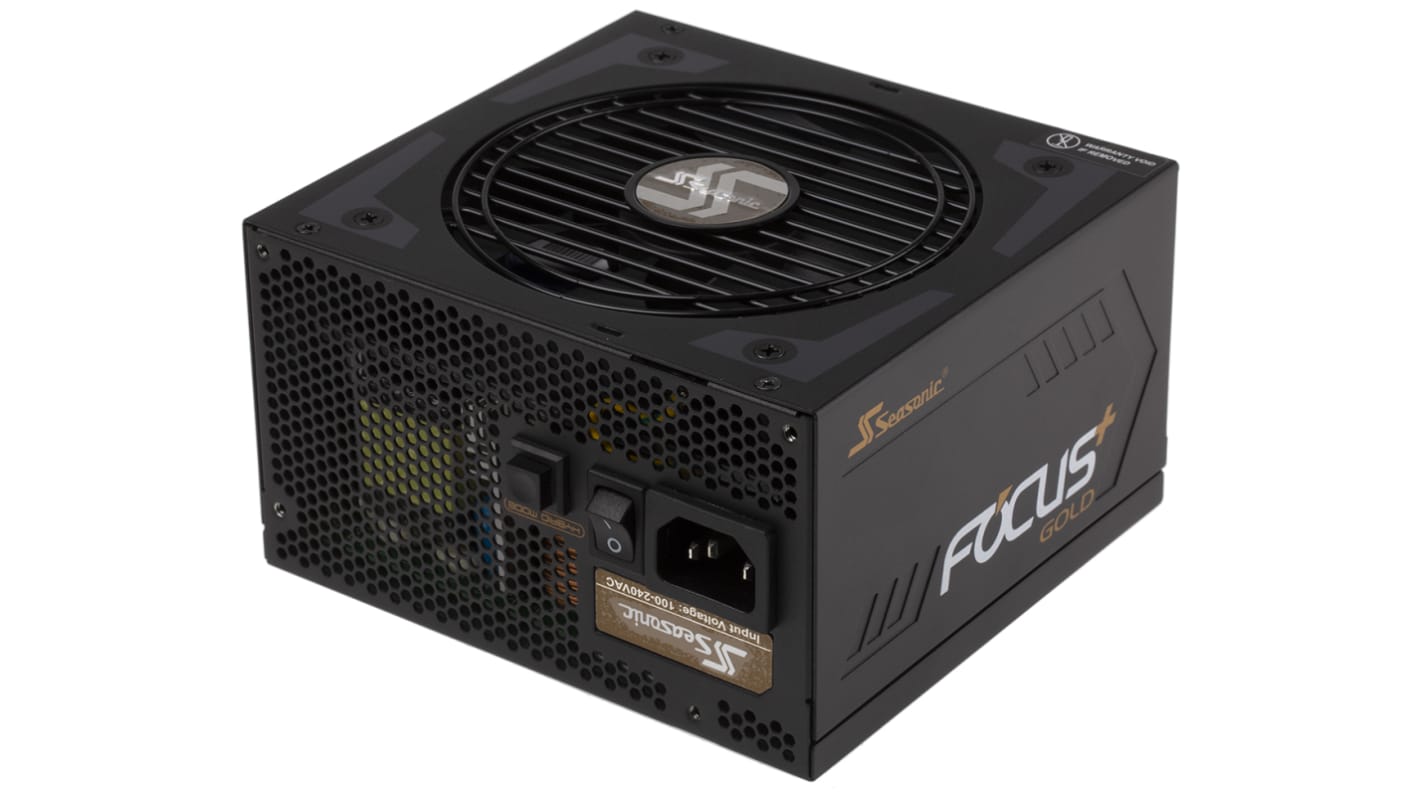

Seasonic 850W ATX Power Supply, 100 → 240V ac Input, -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc Output
- RS Stock No.:
- 181-2089
- Mfr. Part No.:
- SSR-850FX
- Brand:
- Seasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-2089
- Mfr. Part No.:
- SSR-850FX
- Brand:
- Seasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Seasonic | |
| Input Voltage | 100 → 240V ac | |
| Output Voltage | -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc | |
| Power Rating | 850W | |
| Output Current | 3 A, 20 A, 70 A, 300 mA | |
| Number of Outputs | 5 | |
| Length | 140mm | |
| Width | 150mm | |
| Depth | 86mm | |
| Mounting Type | Panel Mount | |
| Efficiency | 90% | |
| Minimum Temperature | 0°C | |
| Maximum Input Current | 13A | |
| Power Signal Conversion Type | AC-DC | |
| Maximum Temperature | +50°C | |
| Series | ATX | |
| Input Frequency Range | 50 → 60Hz | |
Select all | ||
|---|---|---|
Brand Seasonic | ||
Input Voltage 100 → 240V ac | ||
Output Voltage -15 V dc, 3.3 V dc, 5 V dc, 12 V dc, 5 VSB V dc | ||
Power Rating 850W | ||
Output Current 3 A, 20 A, 70 A, 300 mA | ||
Number of Outputs 5 | ||
Length 140mm | ||
Width 150mm | ||
Depth 86mm | ||
Mounting Type Panel Mount | ||
Efficiency 90% | ||
Minimum Temperature 0°C | ||
Maximum Input Current 13A | ||
Power Signal Conversion Type AC-DC | ||
Maximum Temperature +50°C | ||
Series ATX | ||
Input Frequency Range 50 → 60Hz | ||
- COO (Country of Origin):
- CN
This high-wattage unit boasts ultra-high 80 PLUS® Gold efficiency which achieves 90 % efficiency at 50 % system load. Due to its small size the Focus+ Gold power supply is a great solution for smaller computer cases in the living room for instance. This power supply is not only small, but mean too. It boasts the highest power density in its class and it also has remarkable output characteristics during operation. The technologies applied and the components and materials used in the manufacturing of the FOCUS+ Gold 850 are in line with Seasonic’s highest standards.
Reduced noise without increase in temperature,
Extended fan life due to the reduced number of fan rotations,
Optimized heat dissipation at all times,
Unsurpassed silent performance in Fanless Mode.
Extended fan life due to the reduced number of fan rotations,
Optimized heat dissipation at all times,
Unsurpassed silent performance in Fanless Mode.
