- RS Stock No.:
- 311-7117
- Mfr. Part No.:
- 557-1505-203F
- Brand:
- Dialight
1 In stock - FREE next working day delivery available
Added
Price Each
£18.22
(exc. VAT)
£21.86
(inc. VAT)
Units | Per unit |
1 + | £18.22 |
- RS Stock No.:
- 311-7117
- Mfr. Part No.:
- 557-1505-203F
- Brand:
- Dialight
Technical Reference
Legislation and Compliance
Non Compliant
Product Details

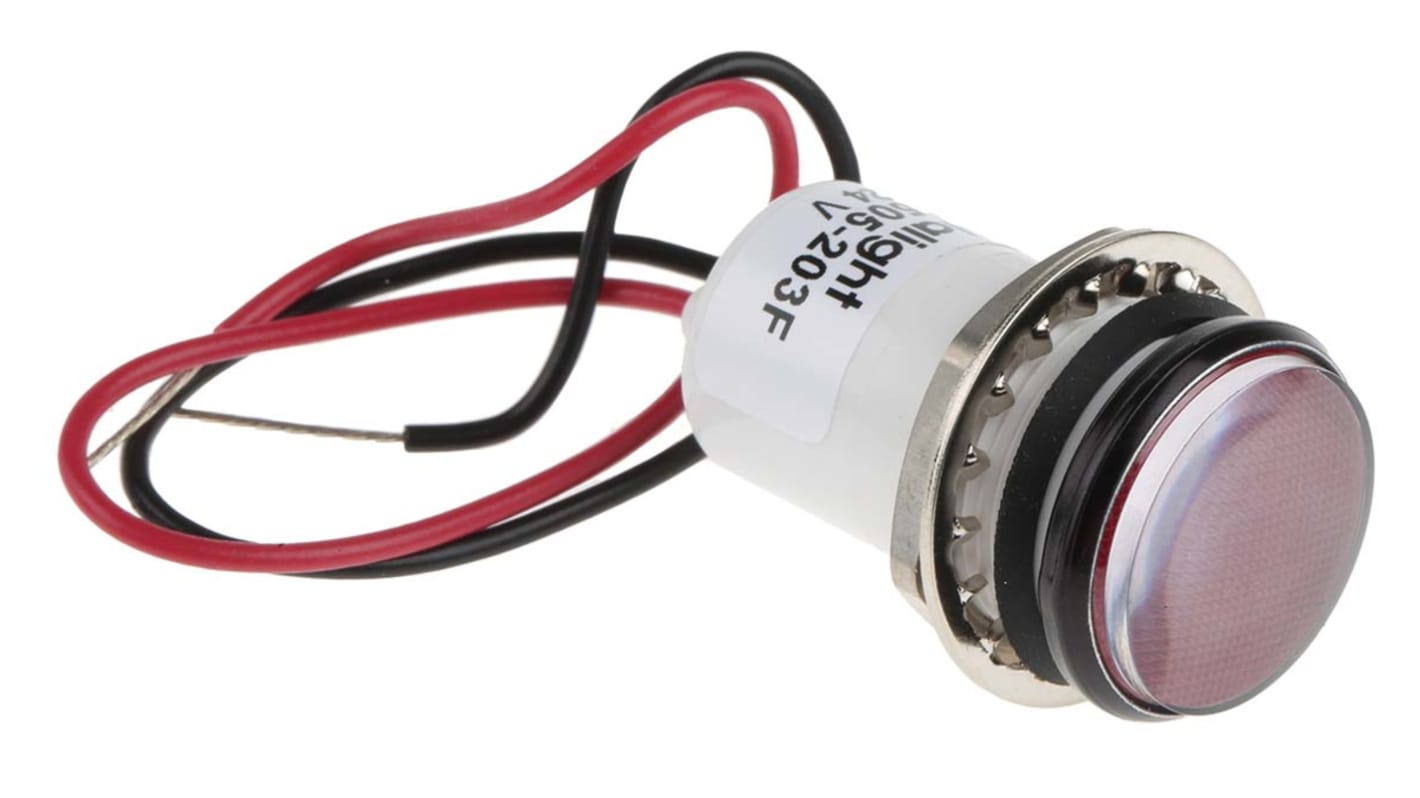

Dialight 557 Series Panel Mount LED Indicator
The 557 Series LED Panel Mount Indicators incorporate both InGaN and AlInGaP technologies to offer higher intensities. Designed to withstand outdoor applications susceptible to rain, dust and sunlight.
Available in red, yellow, green, blue and white
Watertight seal from front of panel meets MIL-L-3661B
Voltage range of 5, 12 & 24 VDC
Maximum mounting torque: -15" / lb
Housing material: White polycarbonate
Front mounting in 11/16" clearance hole
Lens material: Polycarbonate 94 - VO
Operating temperature: -25°C → +85°C
Storage temperature: -30°C → +100°C
Watertight seal from front of panel meets MIL-L-3661B
Voltage range of 5, 12 & 24 VDC
Maximum mounting torque: -15" / lb
Housing material: White polycarbonate
Front mounting in 11/16" clearance hole
Lens material: Polycarbonate 94 - VO
Operating temperature: -25°C → +85°C
Storage temperature: -30°C → +100°C
Specifications
Attribute | Value |
---|---|
Voltage Rating | 24V dc |
Light Output Colour | Red |
Mounting Hole Size | 17.5mm |
Lamp Type | LED |
Termination Type | Lead Wires |
Bezel Style | Flush |
Current Rating | 20mA |
Length | 35.6mm |
