- RS Stock No.:
- 234-9363
- Mfr. Part No.:
- 677-501-04
- Brand:
- Marl
47 In stock - FREE next working day delivery available
Added
Price Each
£25.71
(exc. VAT)
£30.85
(inc. VAT)
Units | Per unit |
1 - 14 | £25.71 |
15 - 24 | £23.14 |
25 - 49 | £21.57 |
50 - 99 | £19.28 |
100 + | £17.17 |
- RS Stock No.:
- 234-9363
- Mfr. Part No.:
- 677-501-04
- Brand:
- Marl
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

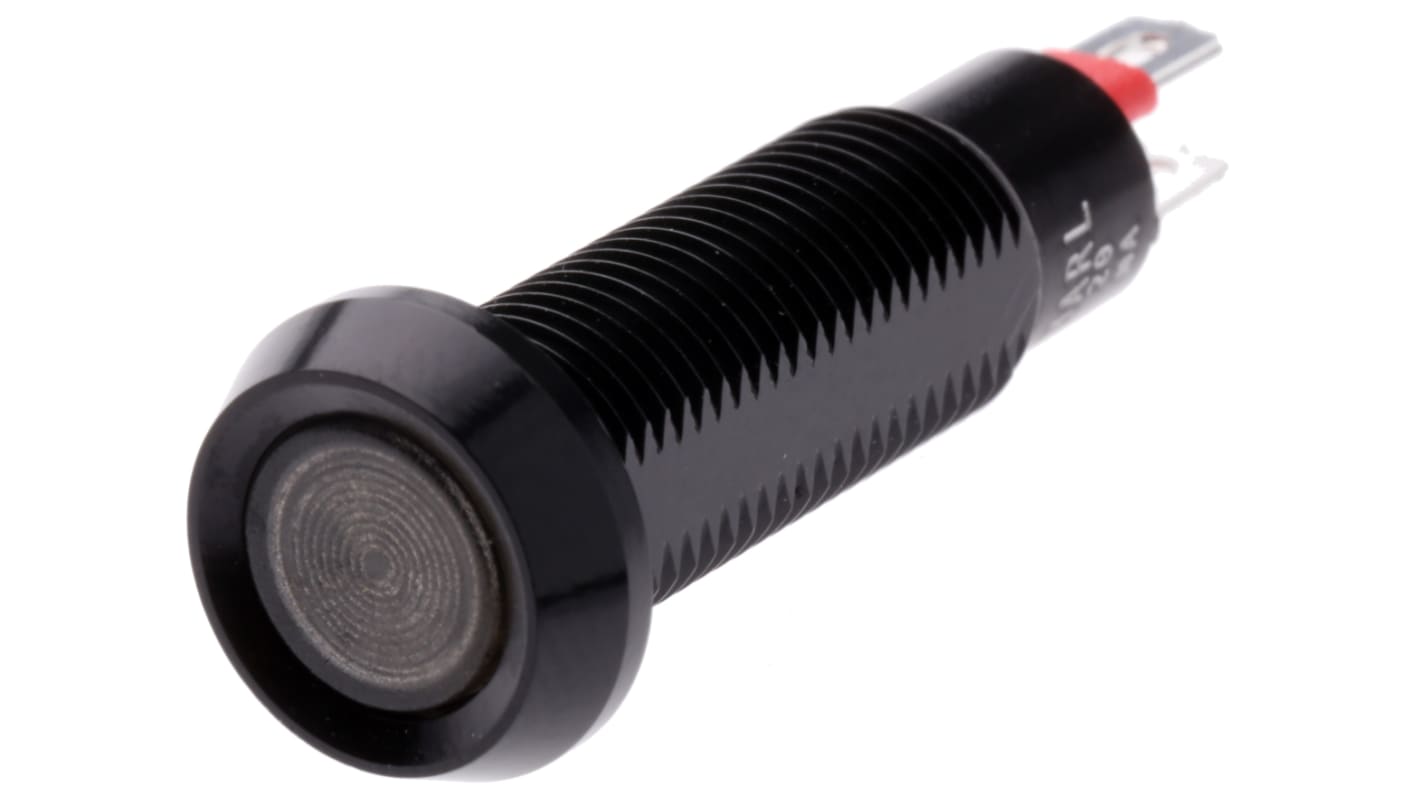

LED Indicator, 8.1mm Mount, High Contrast, Ultra-Bright
7mm high contrast smoked polycarbonate lens
Low profile black anodised aluminium housing
IP67 rated
Fully internally potted
Shock and vibration resistant
D shaped mounting to prevent rotation
0.11in. (2.8x0.5mm) terminals
Supplied with sealing washer, fixing nut, lock washer
Mounting Hole Size: 8.1mm Dia.
Operating Temperature: -20 to +60°C
Low profile black anodised aluminium housing
IP67 rated
Fully internally potted
Shock and vibration resistant
D shaped mounting to prevent rotation
0.11in. (2.8x0.5mm) terminals
Supplied with sealing washer, fixing nut, lock washer
Mounting Hole Size: 8.1mm Dia.
Operating Temperature: -20 to +60°C
Note
These LED indicators should not be operated without a suitable series resistor or other current-limiting device
Specifications
Attribute | Value |
---|---|
Light Output Colour | Red |
Mounting Hole Size | 8.1mm |
Lamp Type | LED |
Termination Type | Solder Tab |
IP Rating | IP67 |
Bezel Style | Recessed |
Bezel Colour | Black |
Current Rating | 20mA |
Length | 29mm |
