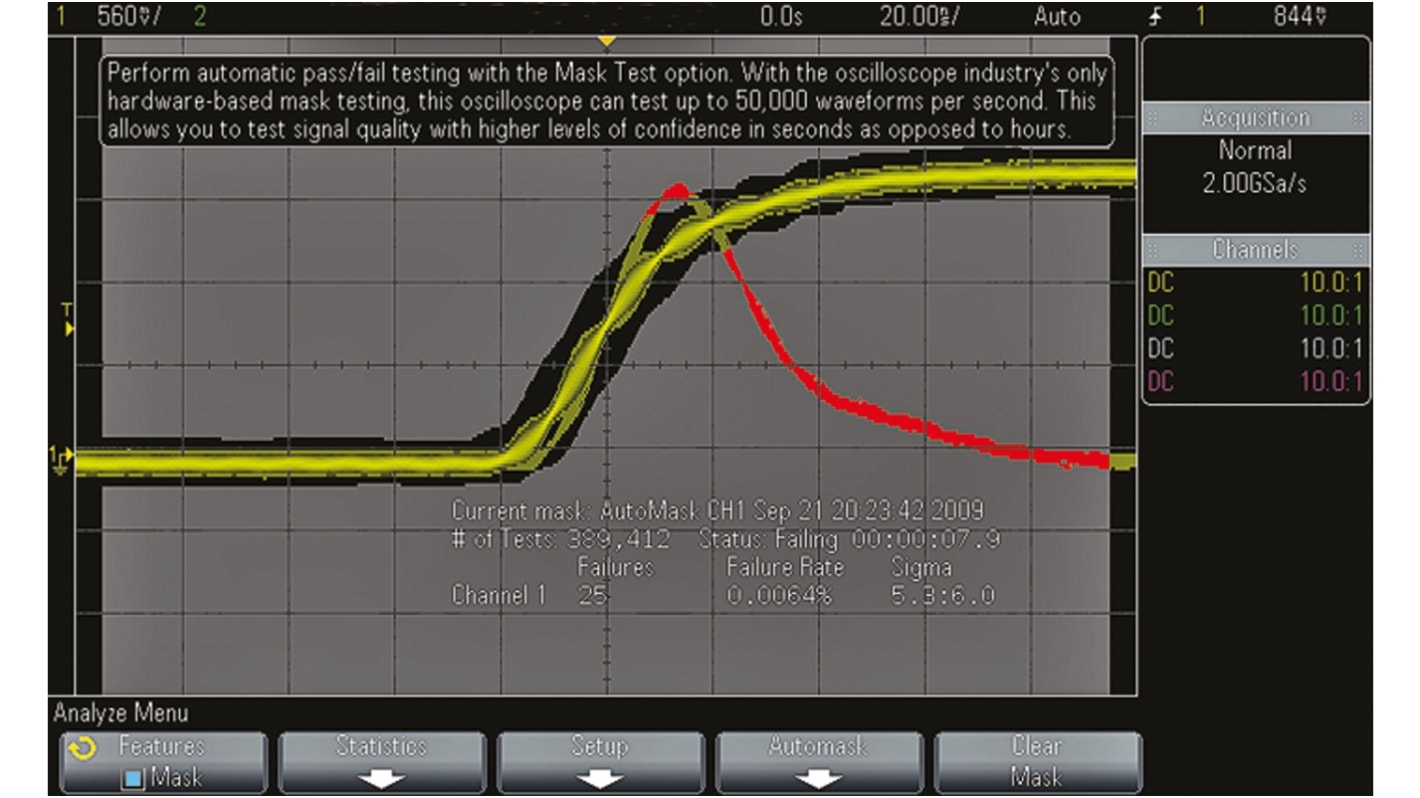

Keysight Technologies DSOX2MASK Interface Module, For Use With InfiniiVision 2000 X

Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): MY
Product Details

Keysight InfiniiVision Series Accessories

A full range of Keysight accessories is available for Keysight InfiniiVision 2000X and 3000X Series oscilloscopes. These range from upgrade and application modules to a carry case ( 725-0555 ) and rackmount kit ( 725-0558 ). A built-in storage compartment beneath the scope handle provides secure, protected storage for physical accessories - so they are ready for use at any time.

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.

Specifications
Attribute Value
For Use With InfiniiVision 2000 X
Available to back order for despatch 12/05/2020
Price Each
£ 235.00
(exc. VAT)
£ 282.00
(inc. VAT)
Units
Per unit
1 +
£235.00
