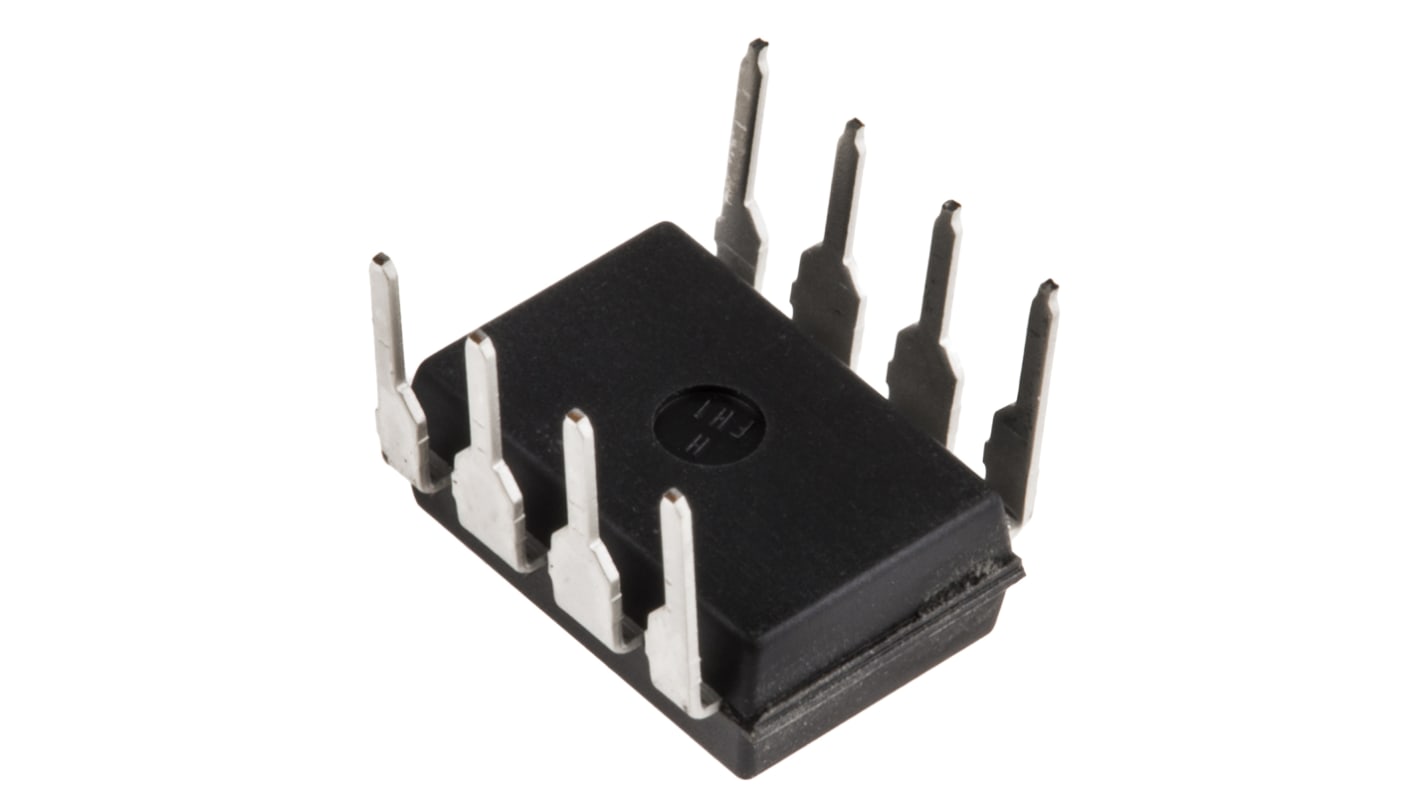

Broadcom, HCPL-2530-000E DC Input Logic Gate Output Dual Optocoupler, Through Hole, 8-Pin PDIP

RS Stock No.:: 547-3841
Mfr. Part No.:: HCPL-2530-000E
Brand:: Broadcom

Broadcom, HCPL-2530-000E DC Input Logic Gate Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Discontinued product

RS Stock No.:: 547-3841
Mfr. Part No.:: HCPL-2530-000E
Brand:: Broadcom

Datasheet

Be the first to know about our latest products and services

Join our mailing list today:

The personal information you provide to us when signing up to the mailing list will be processed in line with our privacy policy.

Attribute	Value
Mounting Type	Through Hole
Output Device	Logic Gate
Maximum Forward Voltage	1.7V
Number of Channels	2
Number of Pins	8
Package Type	PDIP
Input Current Type	DC
Maximum Input Current	25 mA
Isolation Voltage	5 kVrms
Logic Output	Yes
Maximum Current Transfer Ratio	50%
Minimum Current Transfer Ratio	7 %

Broadcom, HCPL-2530-000E DC Input Logic Gate Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Optocoupler, 1MBd Transistor Output, Avago Technologies
