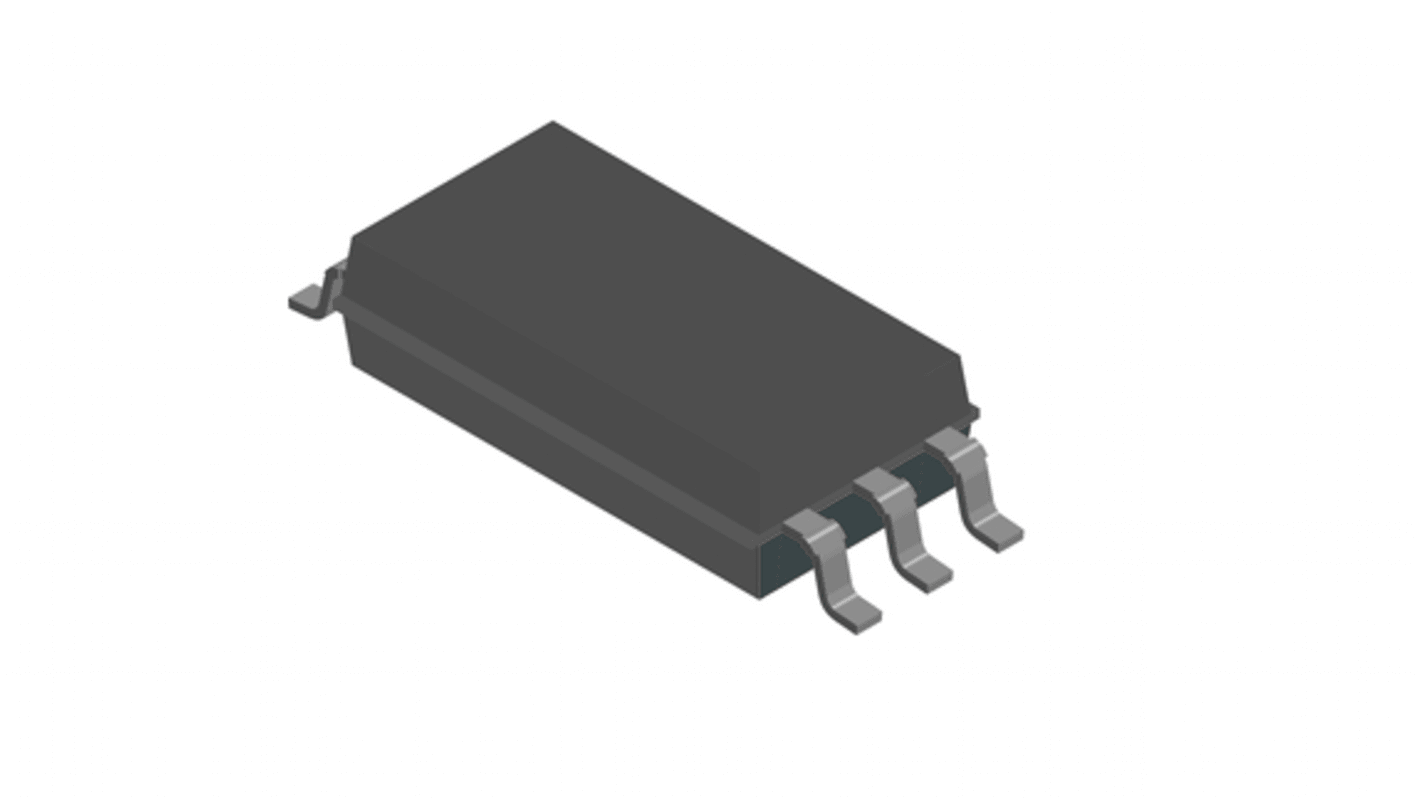

Vishay, TCLT1103 Phototransistor Output Optocoupler, Surface Mount, 5-Pin LSOP
- RS Stock No.:
- 257-6865P
- Mfr. Part No.:
- TCLT1103
- Brand:
- Vishay
Subtotal 1 unit (supplied on a continuous strip)*
£0.59
(exc. VAT)
£0.71
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £0.59 |
*price indicative
- RS Stock No.:
- 257-6865P
- Mfr. Part No.:
- TCLT1103
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Surface Mount | |
| Output Device | Phototransistor | |
| Maximum Forward Voltage | 1.6V | |
| Number of Channels | 1 | |
| Number of Pins | 5 | |
| Package Type | LSOP | |
| Series | TCLT | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Output Device Phototransistor | ||
Maximum Forward Voltage 1.6V | ||
Number of Channels 1 | ||
Number of Pins 5 | ||
Package Type LSOP | ||
Series TCLT | ||
The Vishay TCLT110 series Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 5-lead SOP-6L package. This optocoupler have special construction having creepage distance > 8 mm. It is connected base low profile device.
Extra low coupling capacitance
DC input with transistor output
Isolation test voltage 5000 VRMS
DC input with transistor output
Isolation test voltage 5000 VRMS
