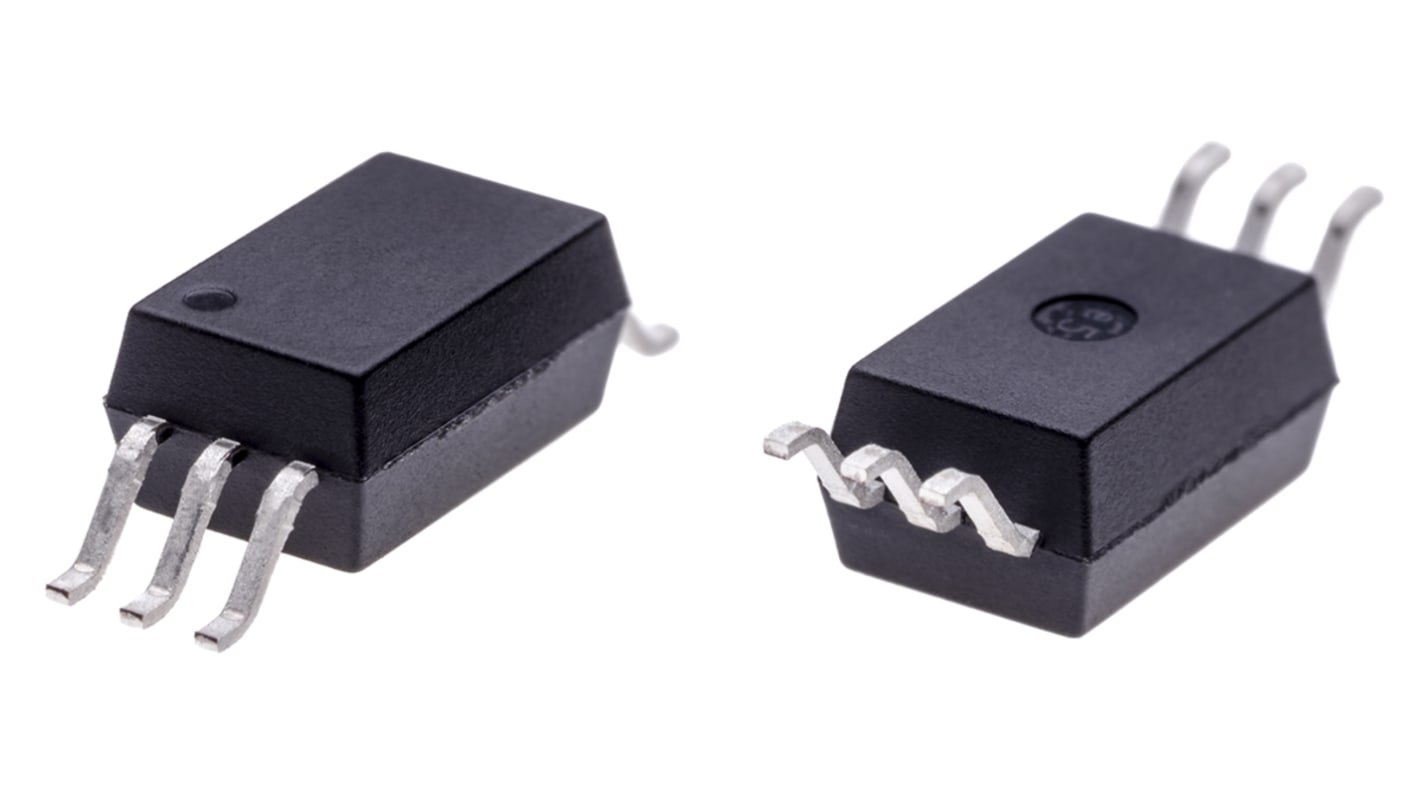

Isocom, IS341W DC Input IGBT, MOSFET Output Dual Optocoupler, Surface Mount, 6-Pin SO

View all Optocouplers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
161-1058
Mfr. Part No.:
IS341W
Brand:
Isocom
Find similar products by selecting one or more attributes.
Select all

Brand

Isocom

Mounting Type

Surface Mount

Output Device

IGBT, MOSFET

Maximum Forward Voltage

1.8V

Number of Channels

2

Number of Pins

6

Package Type

SO

Input Current Type

DC

Typical Rise Time

35ns

Maximum Input Current

1 (Peak Current) A

Isolation Voltage

5000 (Minimum) Vrms

Typical Fall Time

35ns

Series

IS341W

COO (Country of Origin):
CN
The IS341W Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in inverters of motor control and of power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The high peak output current of 3.0A is capable to direct drive IGBT with ratings up to 1200 V/100 A. For IGBTs with higher ratings, IS341W can be used to drive a discrete power stage which drives the IGBT gate. The device is supplied in Stretched SO6 package with wide lead separation.

3.0A Maximum Peak Output Current
2.5A Minimum Peak Output Current
Rail-to-Rail Output Voltage
20kV/μs Minimum Common Mode Rejection at VCM 1500V
Wide Operating Voltage Range VCC 15 to 30 V
Under Voltage Lock Out (UVLO) Protection with Hysteresis
Guaranteed Performance over Temperature Range - 40°C to +105°C
