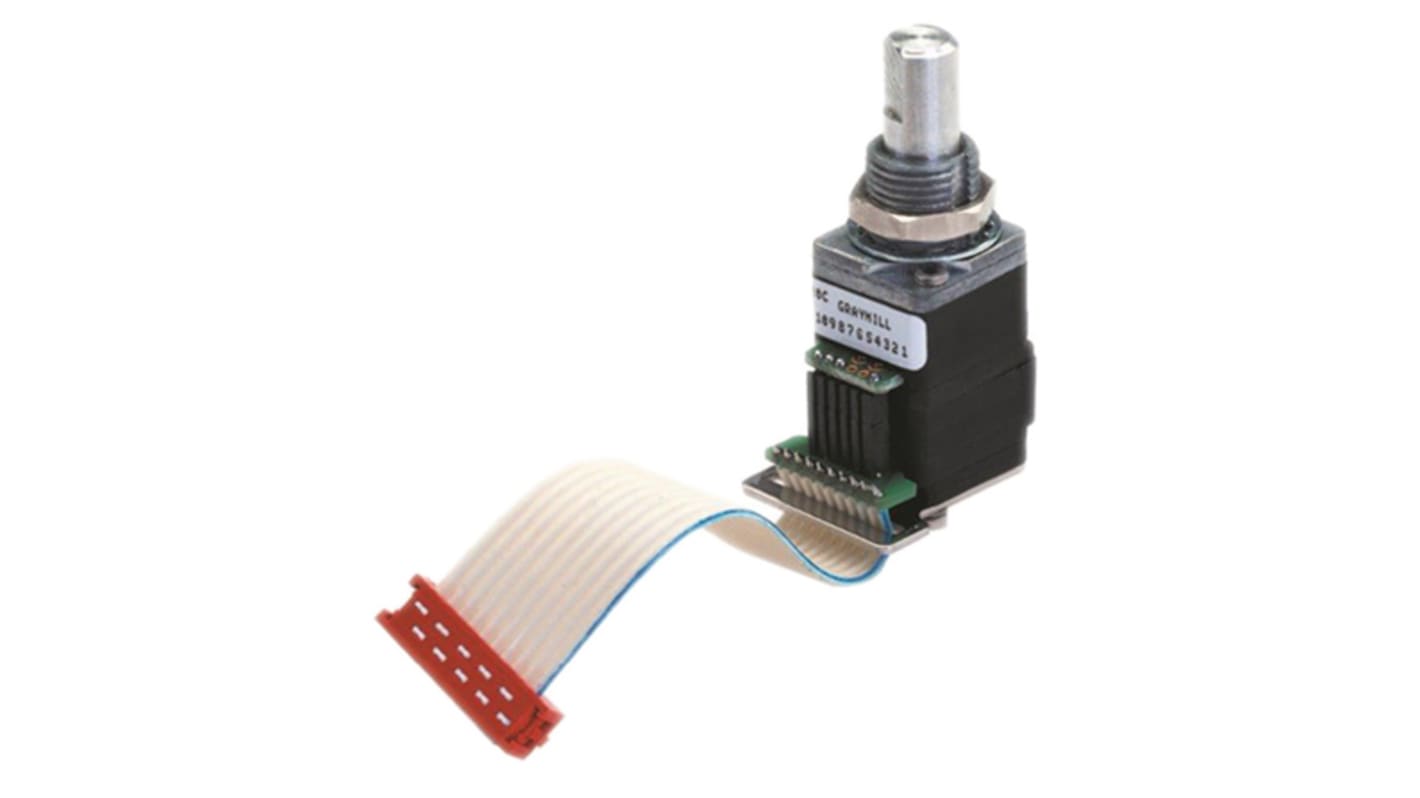

Grayhill 5V dc Optical Encoder with a 6.35 mm Flat Shaft, Panel Mount, Pin

View all Optical Rotary Encoders
Discontinued
RS Stock No.:
878-0587
Mfr. Part No.:
62R30-01-P
Brand:
Grayhill
Find similar products by selecting one or more attributes.
Select all

Brand

Grayhill

Encoder Reading

Quadrature

Encoder Signal

2-Bit Quadrature

Supply Voltage

5V dc

Shaft Diameter

6.35 mm

Shaft Length

17.45mm

Mounting Type

Panel Mount

Shaft Style

Flat

Termination Style

Pin

Maximum Operating Speed

100rpm

Current Rating

30 mA @ 5 V dc

COO (Country of Origin):
US

Grayhill 62R Series Optical Encoders


The 62R series optical encoders offer either 12, 16 or 24 detent positions. The 62R features a 0.5 inch package with redundant circuitry and are ideally suited to critical applications such as cockpit controls and medical equipment. The 62R series is extremely cost effective and has an operational expectancy of more than 3,000,000 operations life expectancy on the optional pushbutton and 1,000,000 rotational life expectancy on the encoder. This can help reduce maintenance costs and down-time.

Features:
Redundant circuitry
1 million rotational cycles
Compatible with CMOS, TTL and HCMOS Logic
Optional integral pushbutton
Available in 12, 16, and 24 detent positions
Choices of cable length and terminations
Ideal for critical applications
Operating temperature range: -40 to +85 °C
