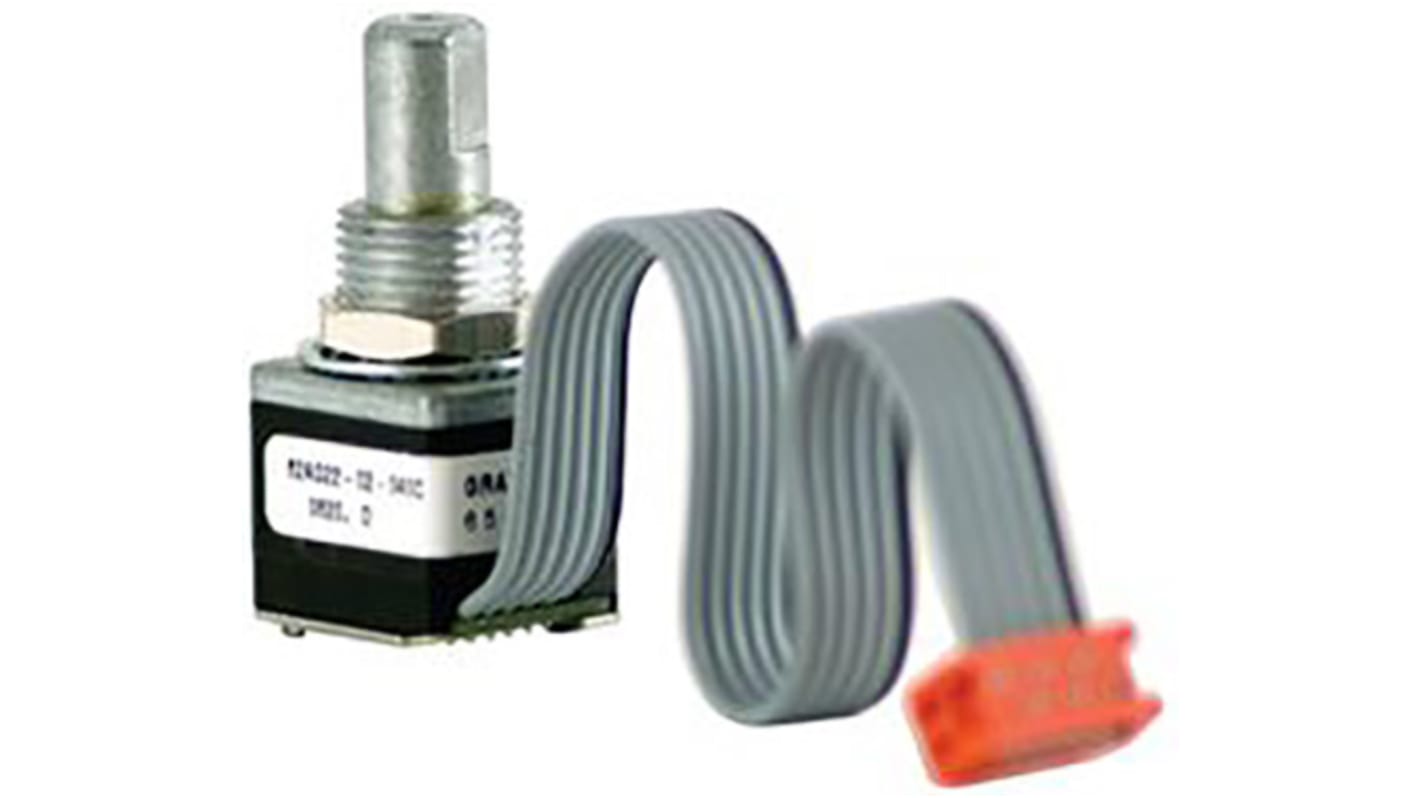

The 62AG series of optical encoders are built for use in a range of applications. These include audio systems, navigation systems, patient monitoring systems,consumer electronics and professional editing equipment. Available with a choice of different cable lengths and termination types. The 62AG series of optical encoder feature Grayhill's patented light pipe technology.
Features: Over 1 Million Rotational Cycles 2-bit Code Output Quadrature Coding 16, 20, 24 and 32 Detent Positions Available 5Vdc or 3.3Vdc Versions Available
Attribute
Value
Encoder Reading
Quadrature
Encoder Signal
2-Bit Gray Code
Supply Voltage
5V dc
Shaft Diameter
6.32 mm
Shaft Length
17.45mm
Mounting Type
Panel Mount
Shaft Style
Flat
Termination Style
Center Ribbon Cable with Connector
Maximum Operating Speed
100rpm
Current Rating
30mA
