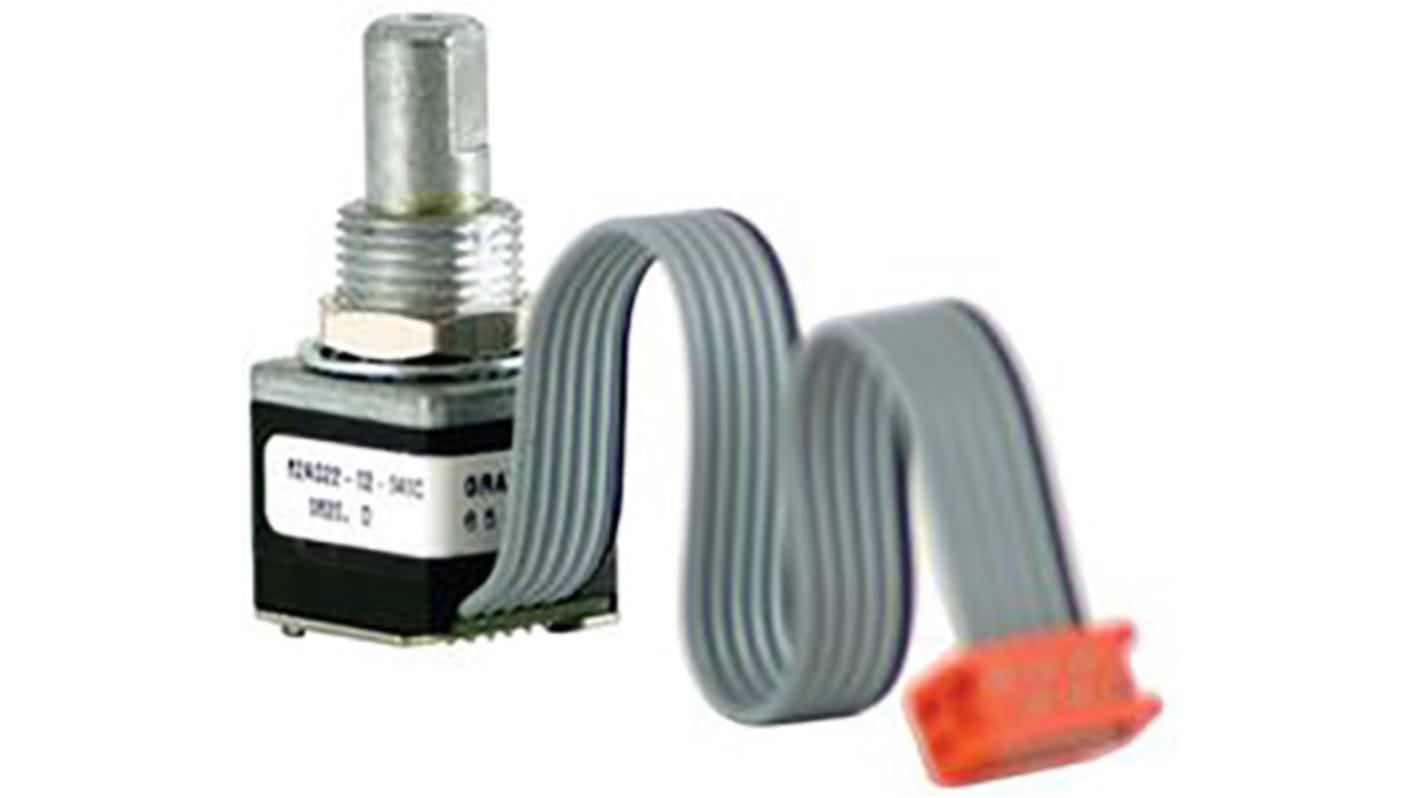

Grayhill 5V dc Optical Encoder with a 6.32 mm Flat Shaft, Panel Mount, Center Ribbon Cable with Connector
- RS Stock No.:
- 878-0426
- Mfr. Part No.:
- 62AG11-L0-060C
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 878-0426
- Mfr. Part No.:
- 62AG11-L0-060C
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Encoder Reading | Quadrature | |
| Encoder Signal | 2-Bit Gray Code | |
| Supply Voltage | 5V dc | |
| Shaft Diameter | 6.32 mm | |
| Shaft Length | 17.45mm | |
| Mounting Type | Panel Mount | |
| Shaft Style | Flat | |
| Termination Style | Center Ribbon Cable with Connector | |
| Maximum Operating Speed | 100rpm | |
| Current Rating | 30mA | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Encoder Reading Quadrature | ||
Encoder Signal 2-Bit Gray Code | ||
Supply Voltage 5V dc | ||
Shaft Diameter 6.32 mm | ||
Shaft Length 17.45mm | ||
Mounting Type Panel Mount | ||
Shaft Style Flat | ||
Termination Style Center Ribbon Cable with Connector | ||
Maximum Operating Speed 100rpm | ||
Current Rating 30mA | ||
- COO (Country of Origin):
- CN
Grayhill 62AG Series Optical Encoders
The 62AG series of optical encoders are built for use in a range of applications. These include audio systems, navigation systems, patient monitoring systems,consumer electronics and professional editing equipment. Available with a choice of different cable lengths and termination types. The 62AG series of optical encoder feature Grayhill's patented light pipe technology.
Features:
Over 1 Million Rotational Cycles
2-bit Code Output
Quadrature Coding
16, 20, 24 and 32 Detent Positions Available
5Vdc or 3.3Vdc Versions Available
Over 1 Million Rotational Cycles
2-bit Code Output
Quadrature Coding
16, 20, 24 and 32 Detent Positions Available
5Vdc or 3.3Vdc Versions Available
