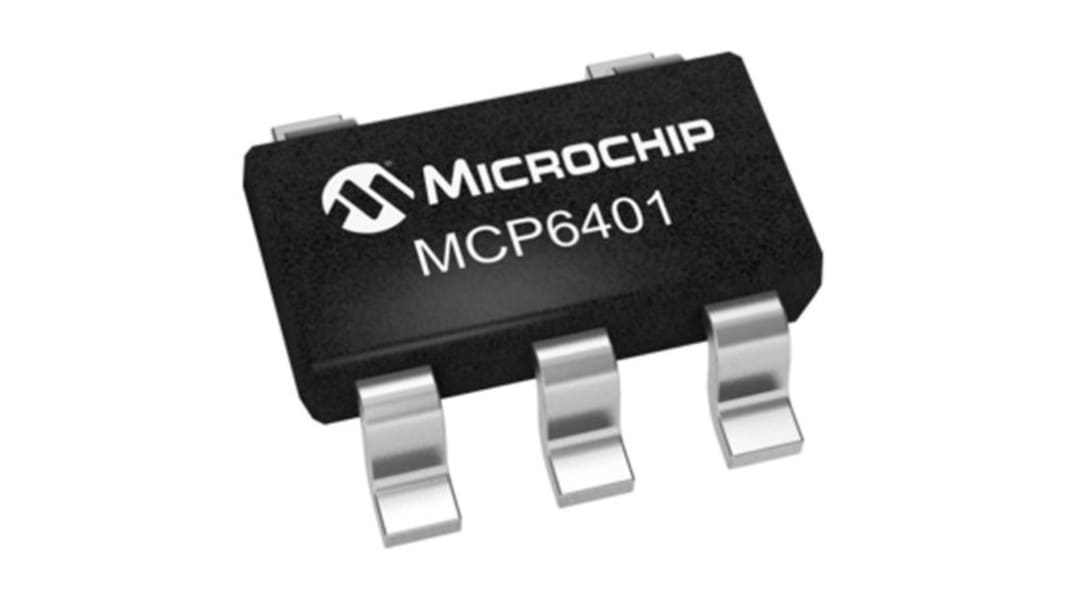

MCP6401T-E/LT Microchip, Op Amp, RRIO, 1MHz, 1.8 → 6 V, 5-Pin SC-70
- RS Stock No.:
- 912-2865
- Mfr. Part No.:
- MCP6401T-E/LT
- Brand:
- Microchip
1 / 1
Discontinued product
- RS Stock No.:
- 912-2865
- Mfr. Part No.:
- MCP6401T-E/LT
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Amplifier Type | General Purpose | |
| Mounting Type | Surface Mount | |
| Package Type | SC-70 | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 1 | |
| Pin Count | 5 | |
| Typical Single Supply Voltage | 1.8 → 6 V | |
| Typical Gain Bandwidth Product | 1MHz | |
| Typical Slew Rate | 0.5V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Typical Voltage Gain | 110 dB | |
| Rail to Rail | Rail to Rail Input/Output | |
| Typical Input Voltage Noise Density | 28nV/√Hz | |
| Dimensions | 2.25 x 1.35 x 1mm | |
| Width | 1.35mm | |
| Height | 1mm | |
| Length | 2.25mm | |
