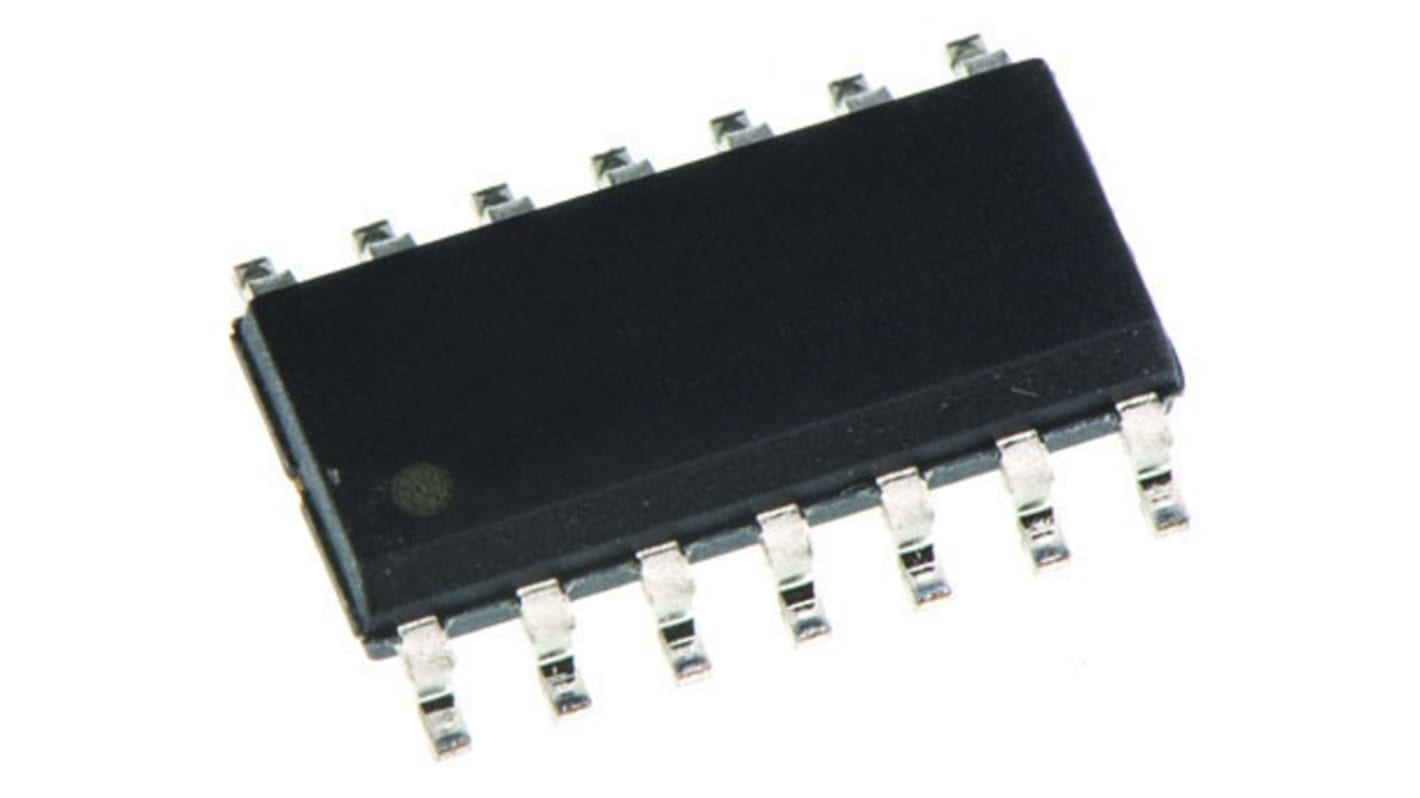

OPA615ID Texas Instruments, Op Amp, 710MHz 30 MHz, 14-Pin SOIC
- RS Stock No.:
- 825-8538P
- Mfr. Part No.:
- OPA615ID
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 825-8538P
- Mfr. Part No.:
- OPA615ID
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 1 | |
| Pin Count | 14 | |
| Typical Gain Bandwidth Product | 710MHz | |
| Typical Dual Supply Voltage | ±5V | |
| Maximum Operating Frequency | 30 MHz | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Rail to Rail | No | |
| Length | 8.75mm | |
| Height | 1.5mm | |
| Typical Input Voltage Noise Density | 6nV/√Hz | |
| Dimensions | 8.75 x 4 x 1.5mm | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Power Supply Type Dual | ||
Number of Channels per Chip 1 | ||
Pin Count 14 | ||
Typical Gain Bandwidth Product 710MHz | ||
Typical Dual Supply Voltage ±5V | ||
Maximum Operating Frequency 30 MHz | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Rail to Rail No | ||
Length 8.75mm | ||
Height 1.5mm | ||
Typical Input Voltage Noise Density 6nV/√Hz | ||
Dimensions 8.75 x 4 x 1.5mm | ||
Width 4mm | ||
Transconductance Amplifiers, Texas Instruments
LM137000 and OPA860/861 Operational Transconductance Amplifiers (OTAs) from Texas Instruments. Operational Transconductance Amplifiers produce an output current proportional to a differential input. The transconductance, or gain, of the OTA can be controlled via a current which makes the devices suitable for a wide range of voltage or current controlled applications such as filters, oscillators, multipliers and variable gain cells.
Transconductance Amplifiers
