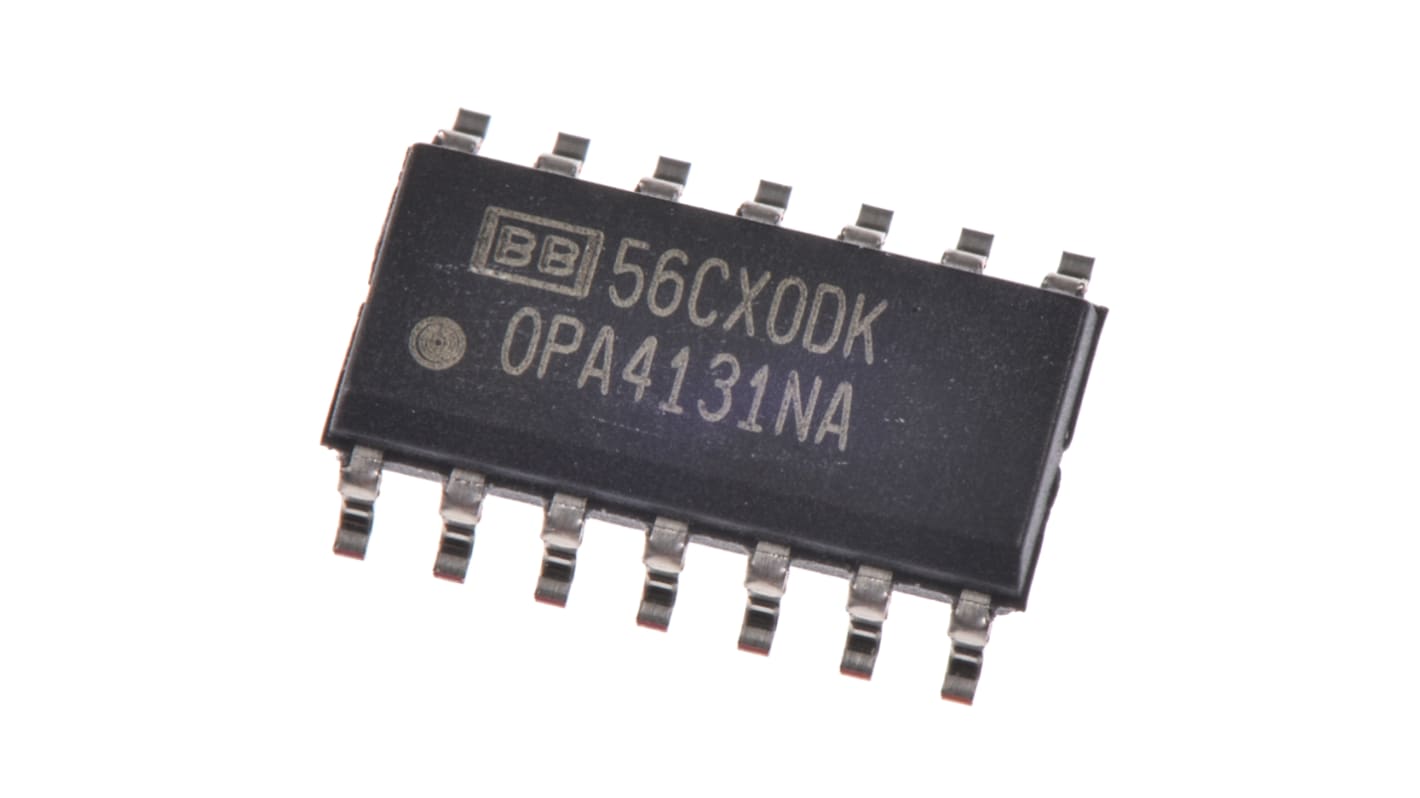

OPA4131NA Texas Instruments, Precision, Op Amp, 4MHz, 14-Pin SOIC
- RS Stock No.:
- 661-0937
- Mfr. Part No.:
- OPA4131NA
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 unit)*
£6.68
(exc. VAT)
£8.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 45 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.68 |
| 5 - 9 | £6.39 |
| 10 - 24 | £6.22 |
| 25 - 49 | £6.06 |
| 50 + | £5.91 |
*price indicative
- RS Stock No.:
- 661-0937
- Mfr. Part No.:
- OPA4131NA
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Amplifier Type | Precision | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Gain Bandwidth Product | 4MHz | |
| Typical Dual Supply Voltage | ±15V | |
| Typical Slew Rate | 10V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Typical Voltage Gain | 110 dB | |
| Rail to Rail | No | |
| Height | 1.58mm | |
| Dimensions | 8.65 x 3.91 x 1.58mm | |
| Width | 3.91mm | |
| Length | 8.65mm | |
| Typical Input Voltage Noise Density | 21nV/√Hz | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Amplifier Type Precision | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Power Supply Type Dual | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Gain Bandwidth Product 4MHz | ||
Typical Dual Supply Voltage ±15V | ||
Typical Slew Rate 10V/µs | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Typical Voltage Gain 110 dB | ||
Rail to Rail No | ||
Height 1.58mm | ||
Dimensions 8.65 x 3.91 x 1.58mm | ||
Width 3.91mm | ||
Length 8.65mm | ||
Typical Input Voltage Noise Density 21nV/√Hz | ||
JFET Input Op Amp, OPA Series
The Texas Instruments OPA131 series of FET-input op amps provides high performance at low cost. Single, dual, and quad versions in industry-standard pinouts allow cost-effective design options. The OPA131 series offers excellent general-purpose performance, including low offset voltage, drift, and good dynamic characteristics.
FET INPUT: IB = 50pA max
LOW OFFSET VOLTAGE: 750uV max
WIDE SUPPLY RANGE: ±4.5V to ±18V
SLEW RATE: 10V/us
WIDE BANDWIDTH: 4MHz
EXCELLENT CAPACITIVE LOAD DRIVE
SINGLE, DUAL, QUAD VERSIONS
LOW OFFSET VOLTAGE: 750uV max
WIDE SUPPLY RANGE: ±4.5V to ±18V
SLEW RATE: 10V/us
WIDE BANDWIDTH: 4MHz
EXCELLENT CAPACITIVE LOAD DRIVE
SINGLE, DUAL, QUAD VERSIONS
