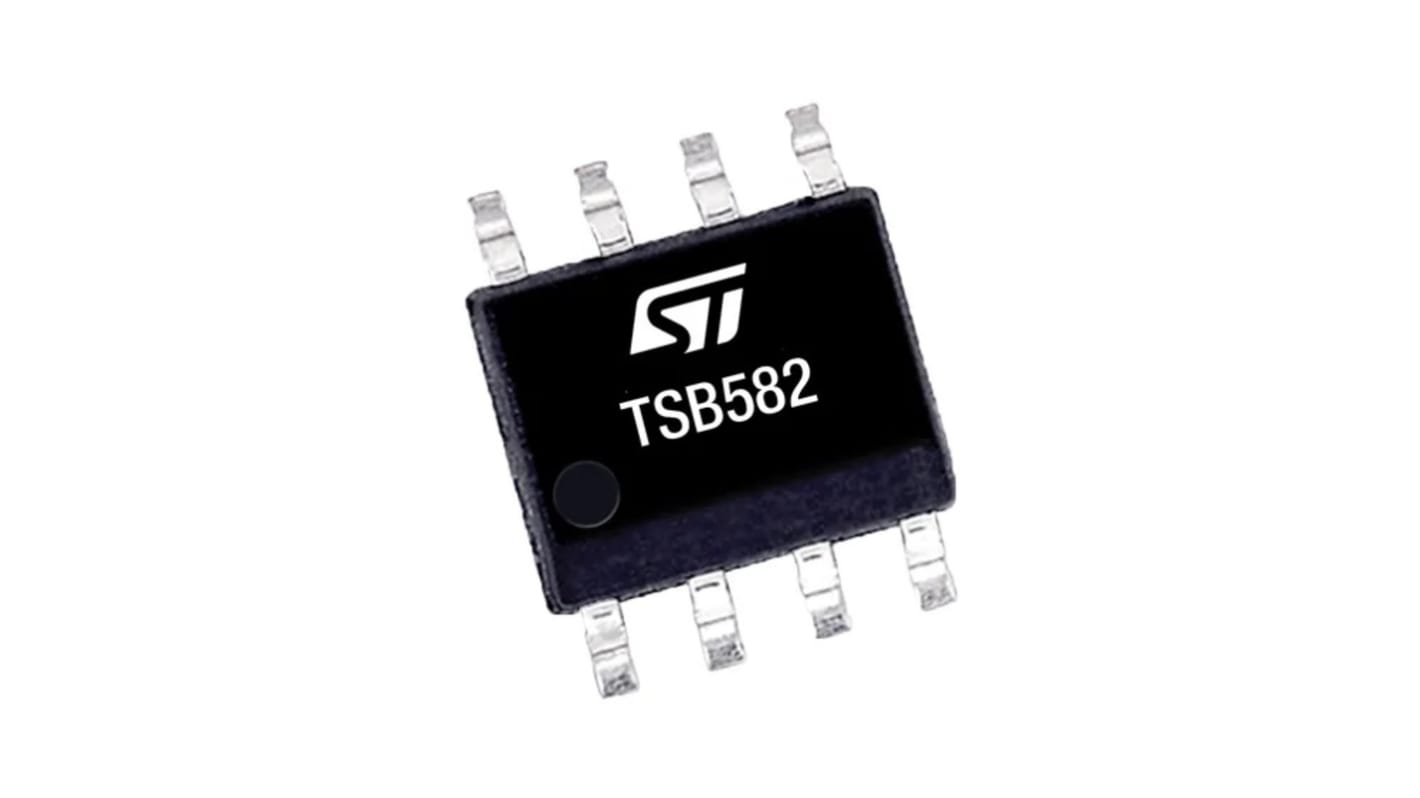

TSB582IYDT STMicroelectronics, Dual Operational, Op Amp, RRO, 3.1MHz, 36 V, 8-Pin SO8

RS Stock No.:: 261-4766
Mfr. Part No.:: TSB582IYDT
Brand:: STMicroelectronics

TSB582IYDT STMicroelectronics, Dual Operational, Op Amp, RRO, 3.1MHz, 36 V, 8-Pin SO8

123 In stock - FREE next working day delivery available

Price Each

£2.97

(exc. VAT)

£3.56

(inc. VAT)

Units	Per unit
1 - 9	£2.97
10 - 99	£2.67
100 - 249	£2.41
250 - 499	£2.16
500 +	£1.95

RS Stock No.:: 261-4766
Mfr. Part No.:: TSB582IYDT
Brand:: STMicroelectronics

Technical Reference

Datasheet - TSB582IYDT

Legislation and Compliance

Product Details

200 mA output current with thermal shutdown and output current limiter, 3.1 MHz, 36 V, BiCMOS dual operational amplifier

The TSB582 is a unity gain stable, dual operational amplifier with high voltage and high current capability, featuring internal protections against overtemperature and current overload conditions. In addition, the TSB582 has enhanced ESD and RF noise immunity.
It typically outputs up to 200 mA per channel to drive low resistance inductive loads such as angle resolvers, lineout cables and piezo actuators.
The two high current output amplifiers of the TSB582 feature the advantage of driving loads directly in bridge tied mode or, connected in parallel, allow to double the output sink/source current. Additionally, the TSB582 is available in the two space-saving packages, SO8 with exposed pad and DFN8 with wettable flanks and exposed pad. Where both of them are qualified for automotive applications over a temperature range of -40 °C to +125 °C.

Key features

Wide supply voltage: 4 V - 36 V

High output current 200 mA

Rail-to-rail output, low rail input

Gain bandwidth product: 3.1 MHz

High slew rate: 2 V/μs

Internal thermal shutdown & output current limiter

Enhanced RF noise immunity

High tolerance to ESD: 4 kV HBM

Extended temperature range: -40 °C to 125 °C

Automotive grade

Low noise 45 nV/√Hz @ 1 kHz

Icc (typ.) = 2.3 mA

Unity gain stable

Low offset 2.4 mV max. (25 °C) / 3 mV max. (full temperature range)

Low input bias current

Packages: SO8 & DFN8 exposed pad

Specifications

Attribute	Value
Amplifier Type	Dual Operational
Mounting Type	Surface Mount
Package Type	SO8
Power Supply Type	Single
Pin Count	8
Typical Single Supply Voltage	36 V
Typical Gain Bandwidth Product	3.1MHz
Rail to Rail	Rail to Rail Output
