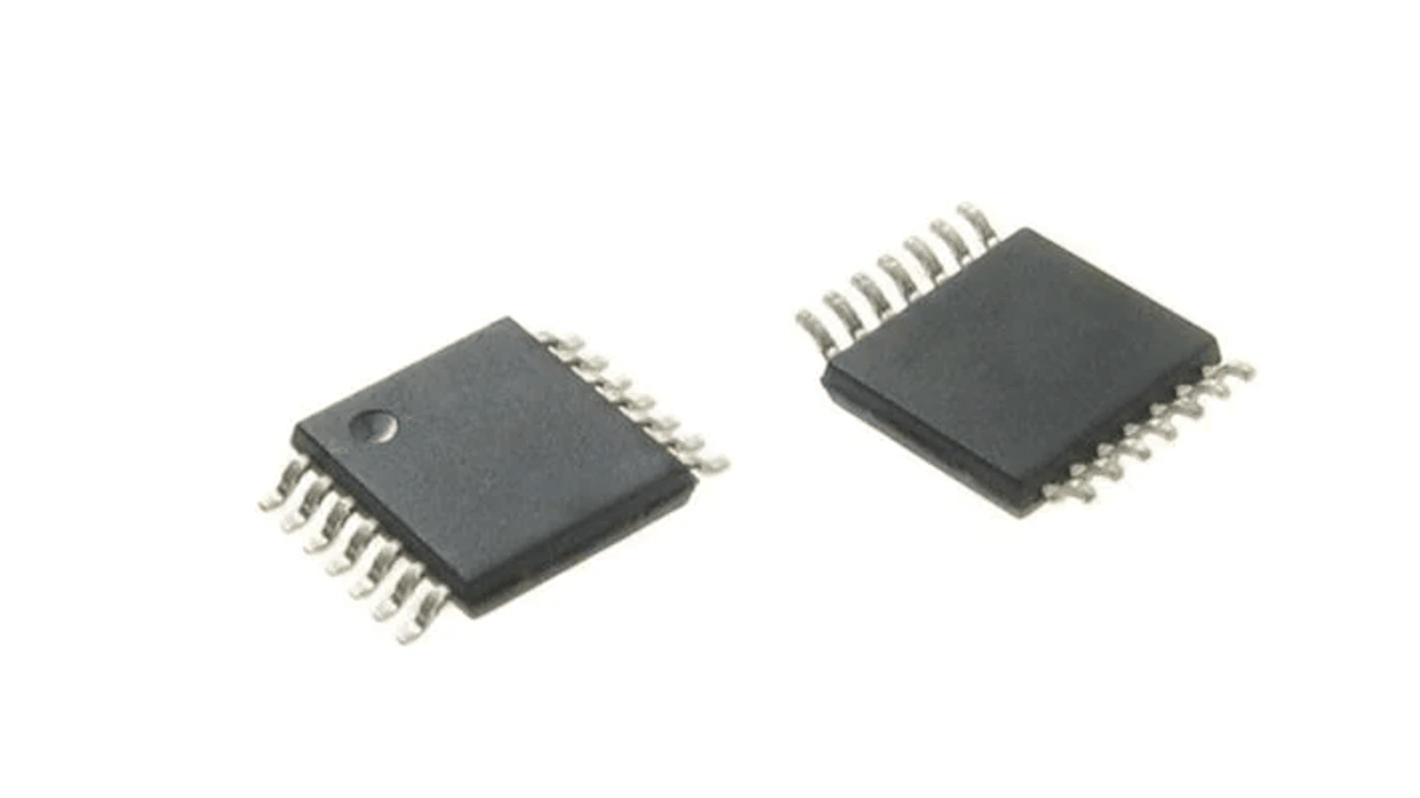

LM2902BYPT STMicroelectronics, Operational Amplifier, Op Amp, 1.2MHz, 36 V, 14-Pin TSSOP14
- RS Stock No.:
- 244-3147
- Mfr. Part No.:
- LM2902BYPT
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.19
(exc. VAT)
£3.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 370 unit(s) ready to ship
- Plus 999,999,625 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £0.638 | £3.19 |
25 - 45 | £0.604 | £3.02 |
50 - 120 | £0.546 | £2.73 |
125 - 245 | £0.492 | £2.46 |
250 + | £0.468 | £2.34 |
*price indicative
- RS Stock No.:
- 244-3147
- Mfr. Part No.:
- LM2902BYPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Amplifier Type | Operational Amplifier | |
Mounting Type | Surface Mount | |
Package Type | TSSOP14 | |
Number of Channels per Chip | 4 | |
Pin Count | 14 | |
Typical Single Supply Voltage | 36 V | |
Typical Gain Bandwidth Product | 1.2MHz | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Operational Amplifier | ||
Mounting Type Surface Mount | ||
Package Type TSSOP14 | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 36 V | ||
Typical Gain Bandwidth Product 1.2MHz | ||
The STMicroelectronics offers a high gain operational amplifiers (Op Amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. This circuit operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional Op Amp circuits which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied from the standard 5 V which is used in logic systems and easily provides the required electronic interfaces without requiring any additional power supply. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from a single power supply.
AEC-Q100 qualified
Frequency compensation implemented internally
Large DC voltage gain 100 dB
Wide bandwidth (unity gain) 1.2 MHz (temperature compensated)
Very low supply current/amplifier, essentially independent of supply voltage
Low input bias current 20 nA (temperature compensated)
Low input offset current 2 nA
Input common-mode voltage range includes negative rail
Differential input voltage range equal to the power supply voltage
Frequency compensation implemented internally
Large DC voltage gain 100 dB
Wide bandwidth (unity gain) 1.2 MHz (temperature compensated)
Very low supply current/amplifier, essentially independent of supply voltage
Low input bias current 20 nA (temperature compensated)
Low input offset current 2 nA
Input common-mode voltage range includes negative rail
Differential input voltage range equal to the power supply voltage
